Instrument Panel Cluster (IPC) - Replacement

INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT

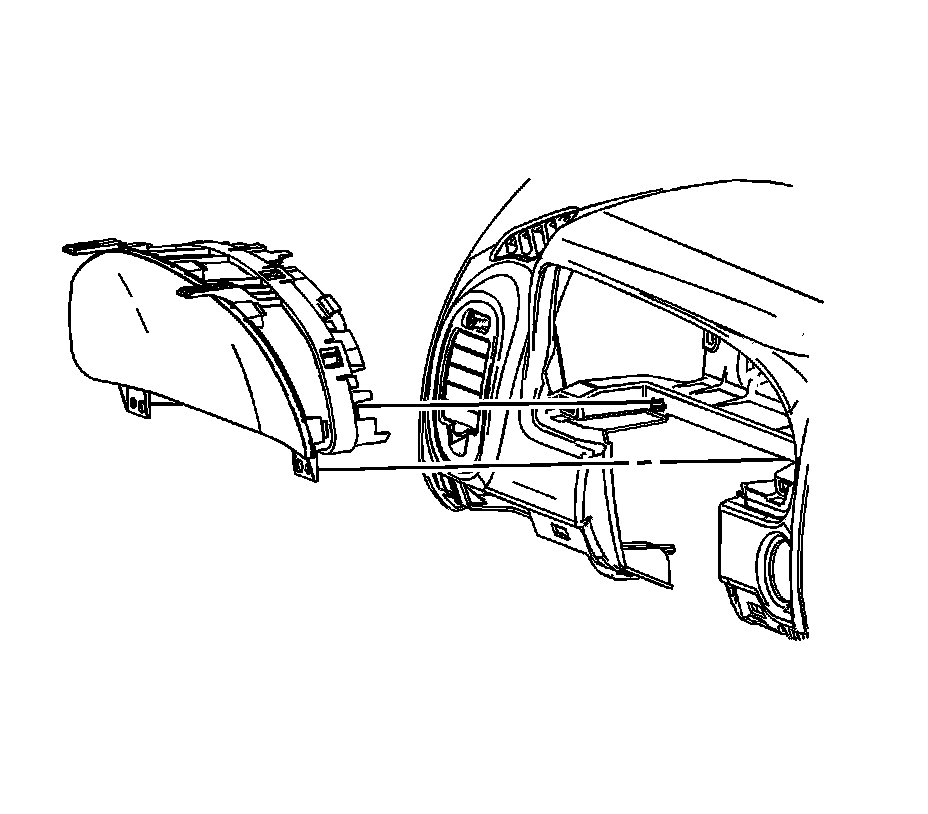

REMOVAL PROCEDURE




1. Remove the instrument panel (I/P) cluster trim plate bezel.
2. Remove the I/P cluster screws.
3. Remove the I/P cluster.
4. Remove the I/P cluster wire harness connector.

INSTALLATION PROCEDURE




1. Install the I/P cluster wire harness connector.
2. Install the I/P cluster.
3. Tighten the I/P cluster screws.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the screws to 2.5 N.m (22 lb in).

4. Install the I/P cluster trim plate bezel.
