Trailer Connector: Diagrams

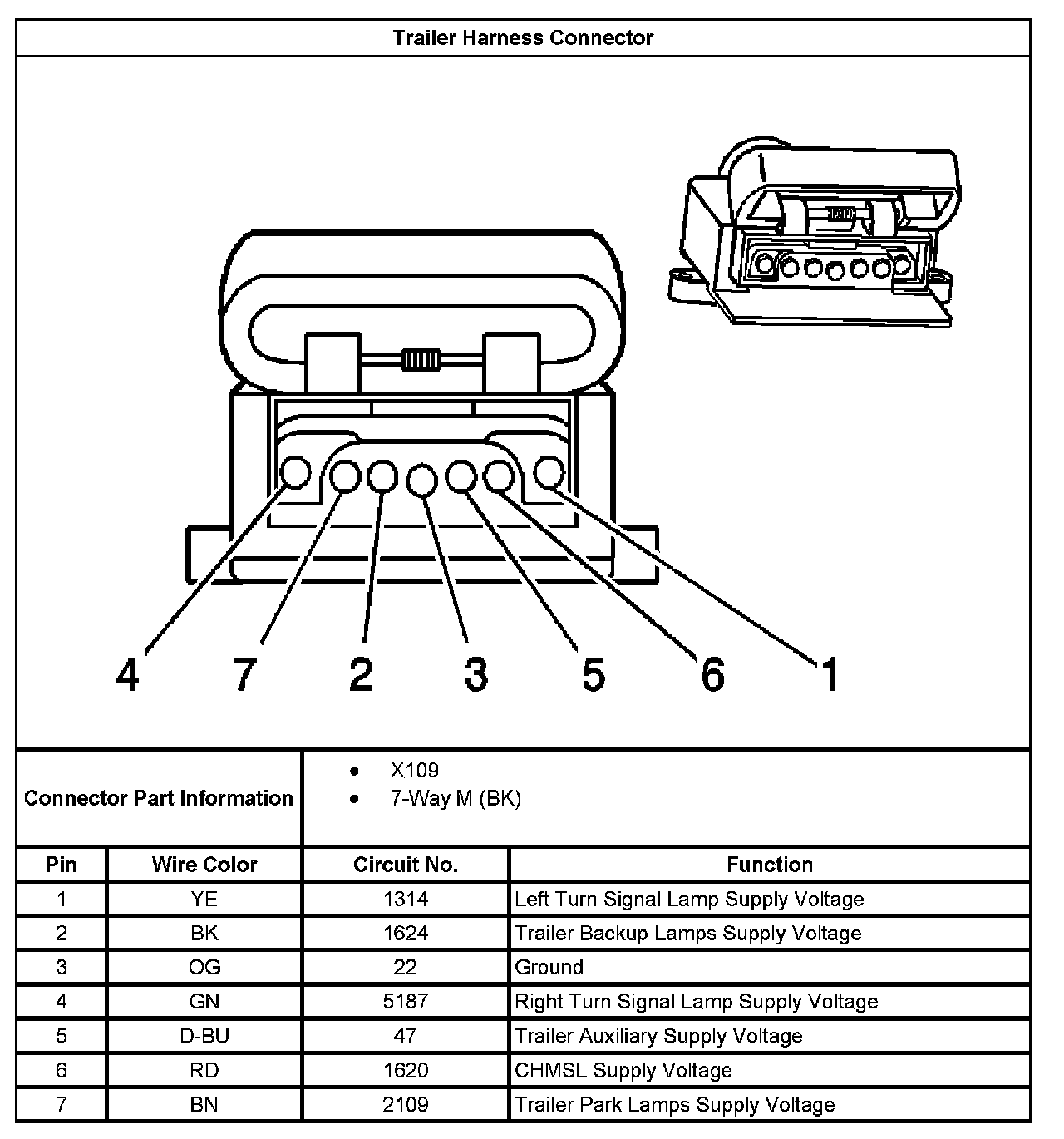

Trailer Harness Connector:

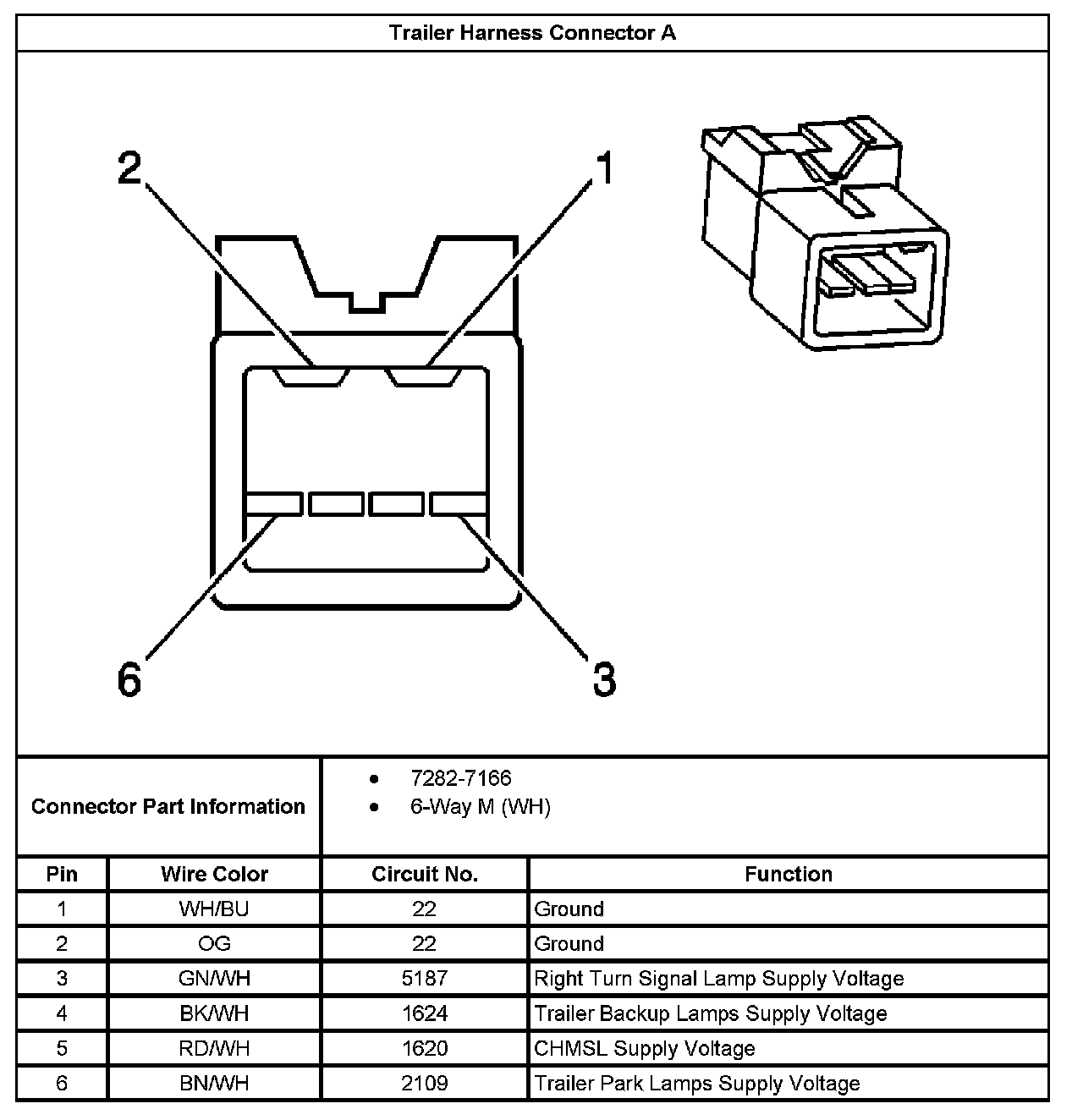

Trailer Harness Connector A:



Trailer Harness Connector B:
