Operation CHARM: Car repair manuals for everyone.
Home >> Pontiac >> 2005 >> GTO V8-6.0L VIN U >> Repair and Diagnosis >> Diagrams >> Components

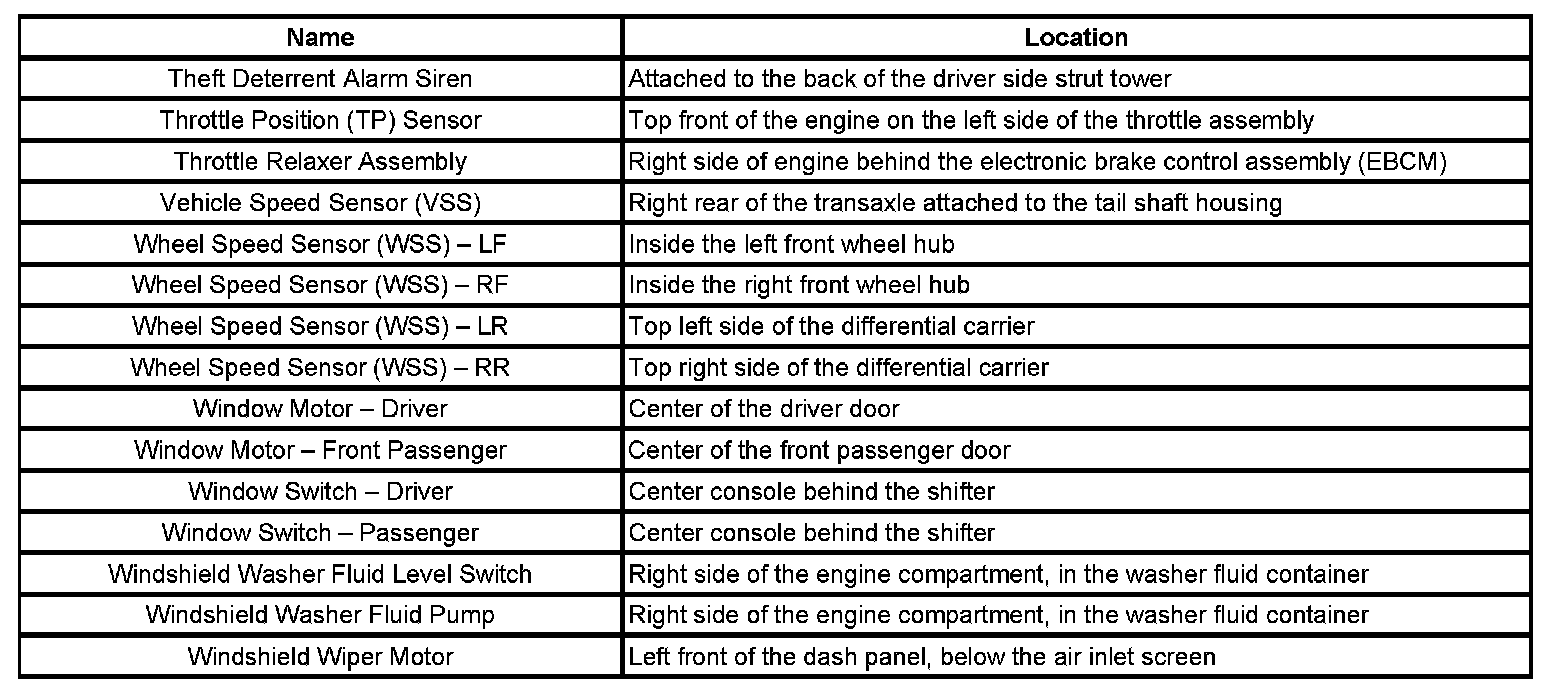

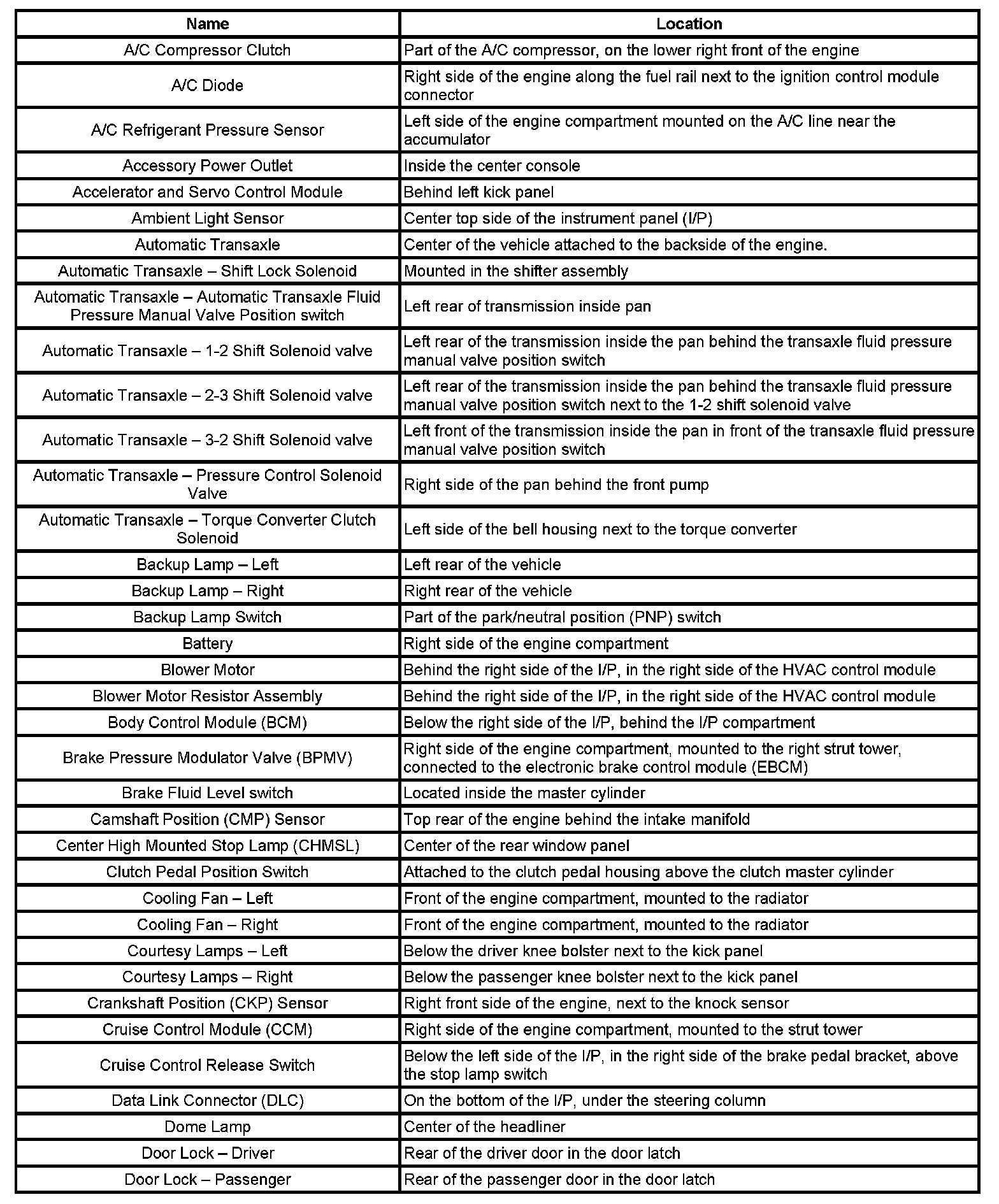

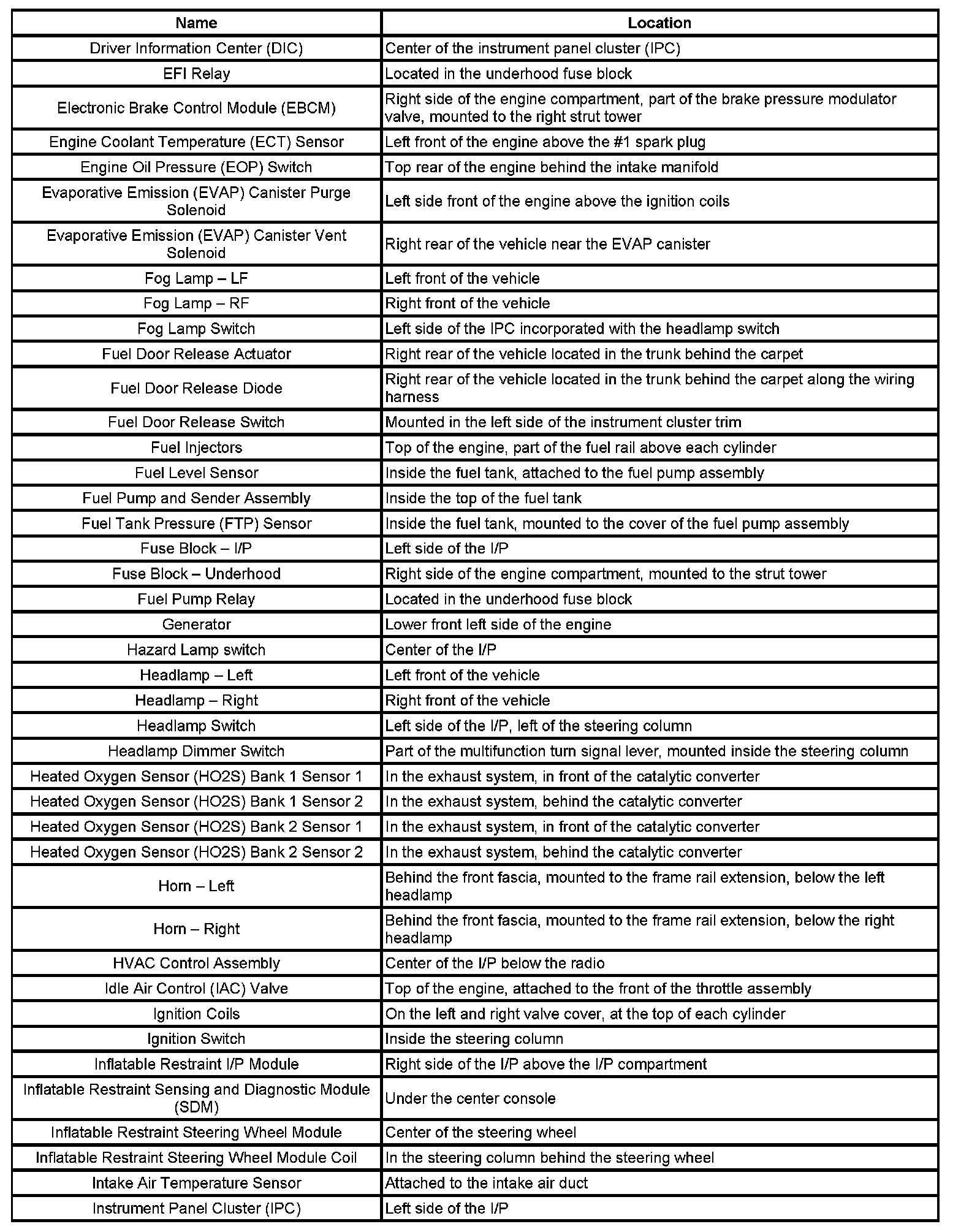

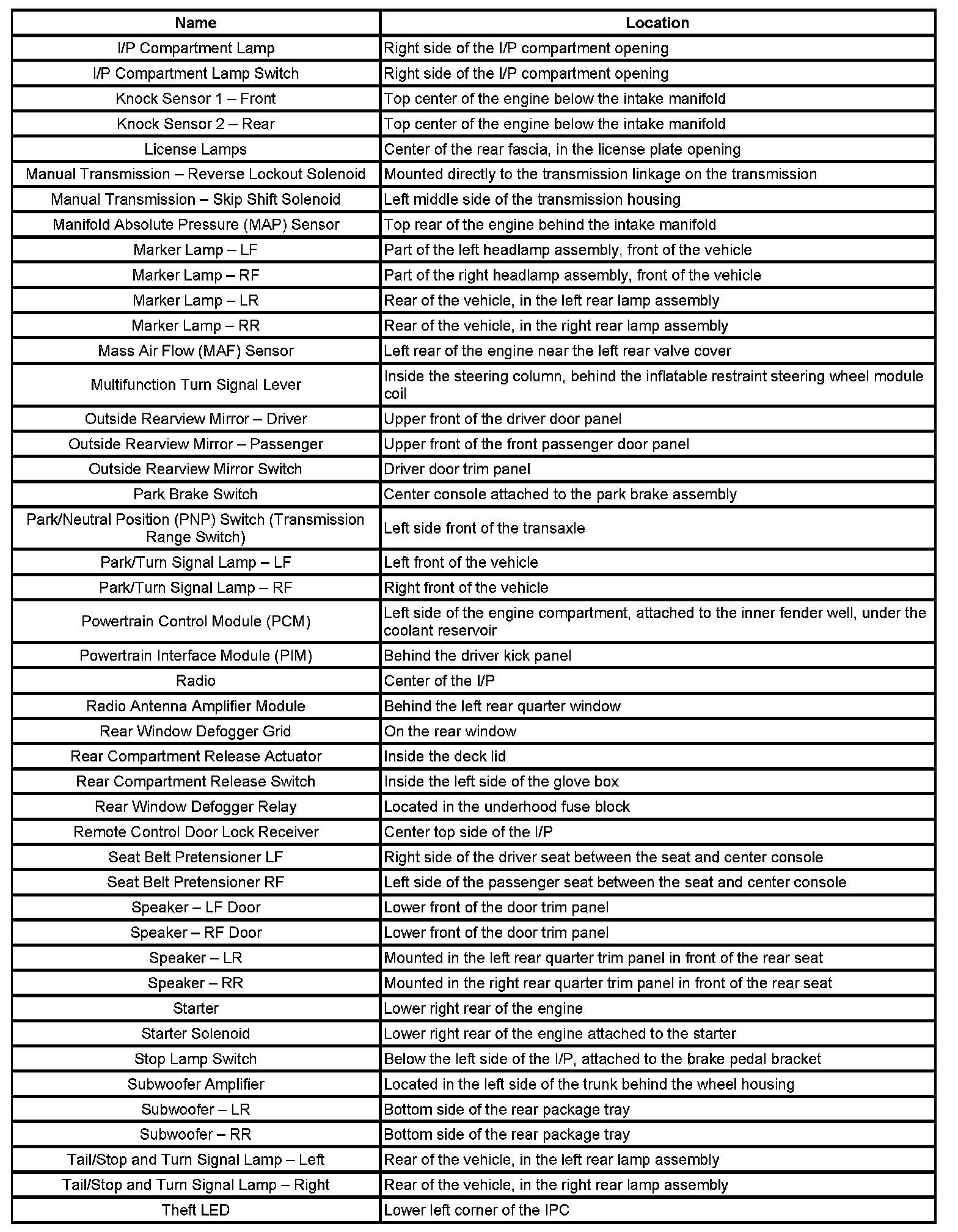

Components

A/C - Do:



Dr - In:



I/P - Th:



Th - Wi:
