Grand AM L4-2.2L VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radiator Cooling Fan Motor Relay
Radiator Cooling Fan Motor Relay

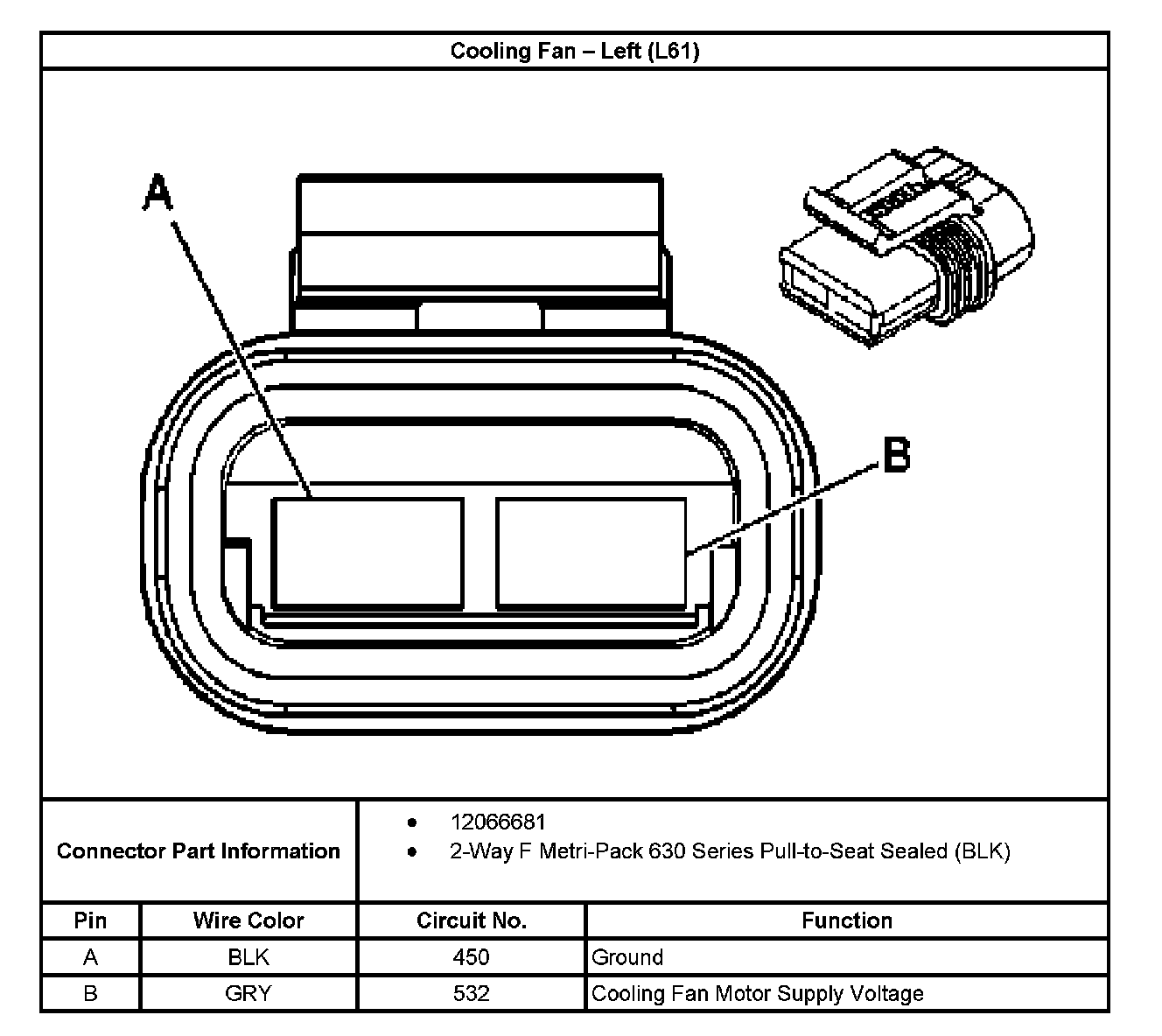

Cooling Fan - Left (L61):

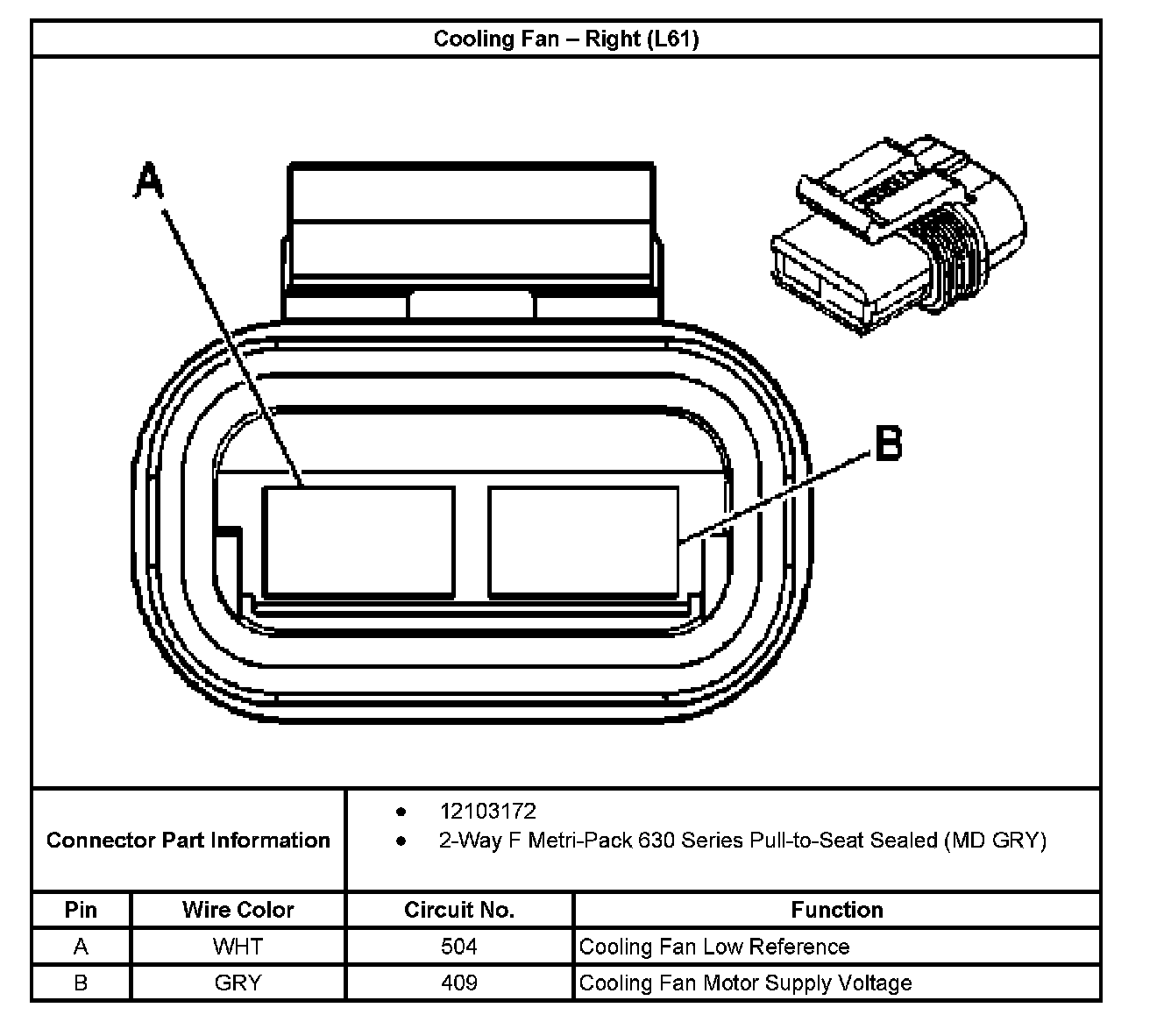

Cooling Fan - Right (L61):
