C413
C413

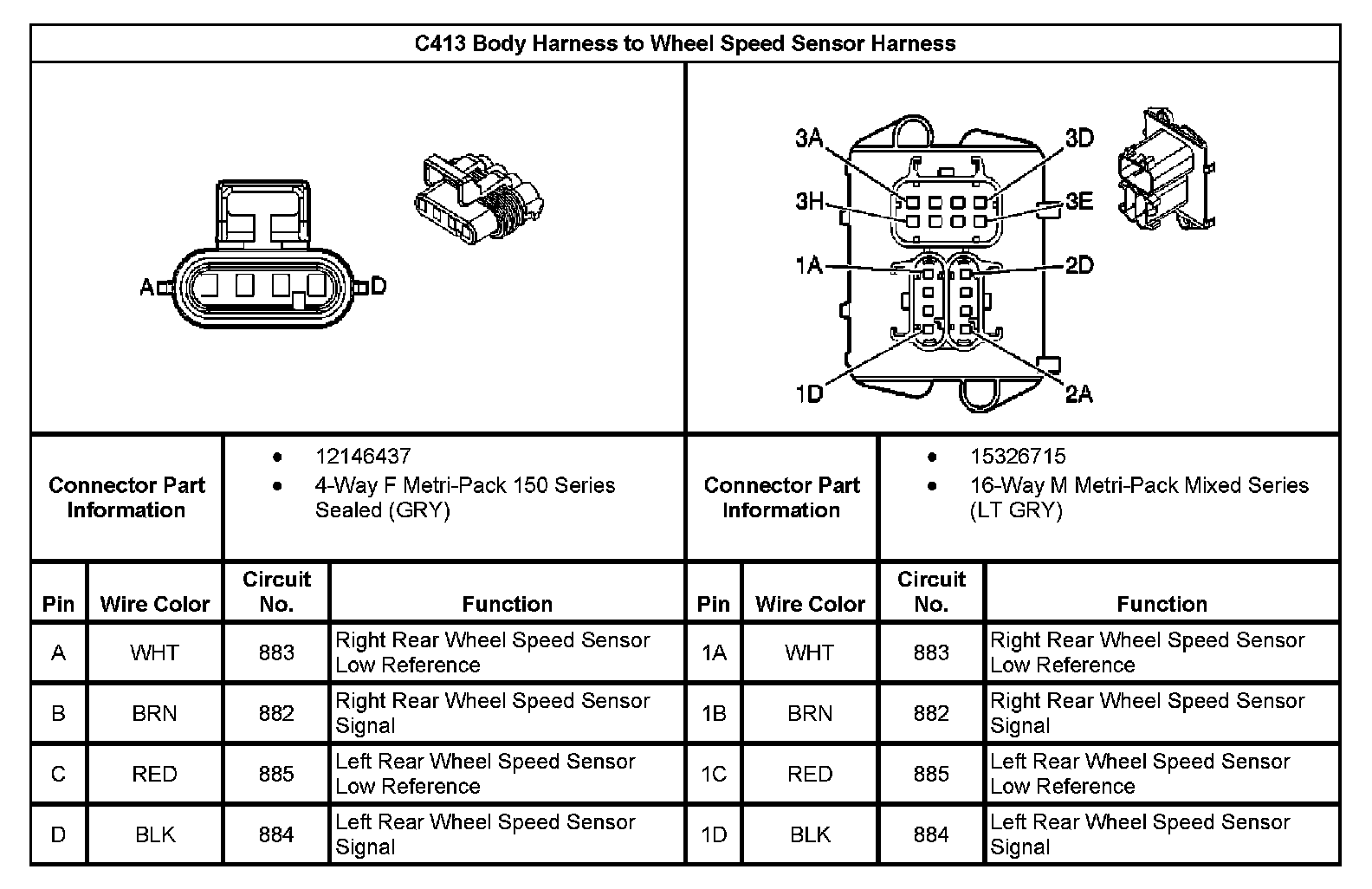

C413 Body Harness To Wheel Speed Sensor Harness:

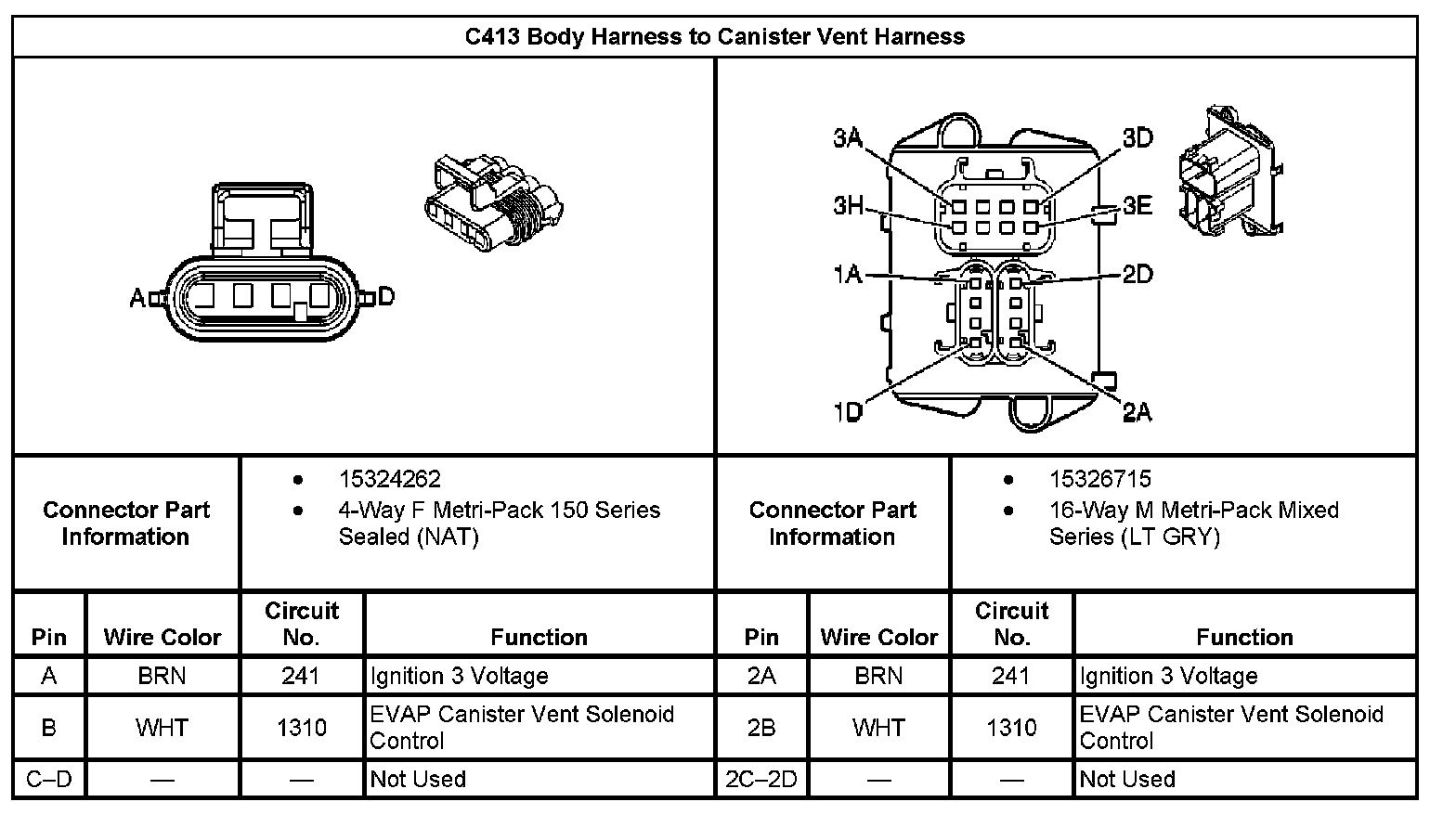

C413 Body Harness To Canister Vent Harness:
C413 Body Harness To Fuel Pump And Sender Assembly Harness:
