Home
>>
Pontiac
>>
2005
>>
Grand AM V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>

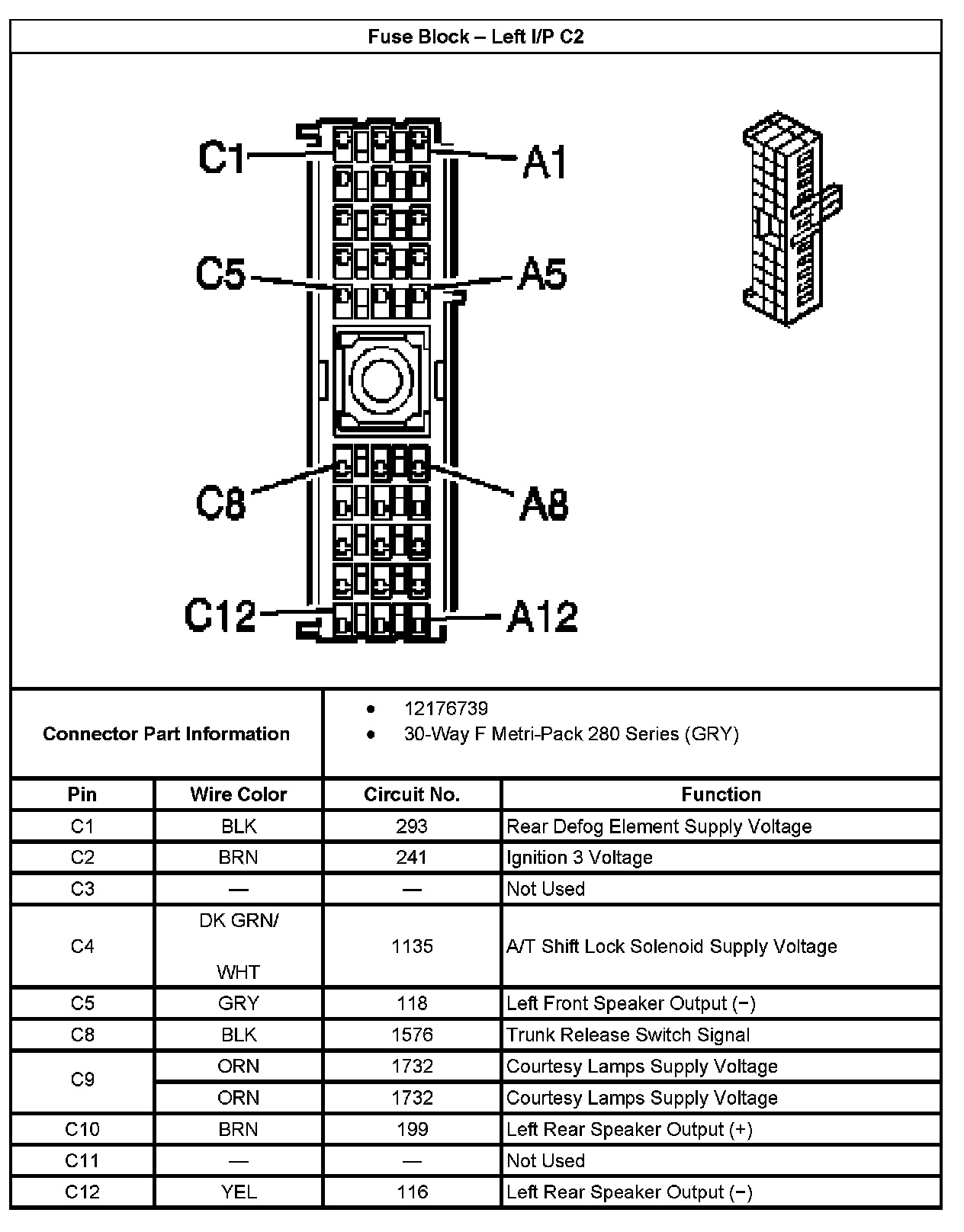

Fuse Block - Left I/P C2
Fuse Block - Left I/P C2
Fuse Block - Left I/P C2 Part 1:
Fuse Block - Left I/P C2 Part 2:
