Pontiac
>>
2005
>>
Grand AM V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C200 - C299
C200 - C299

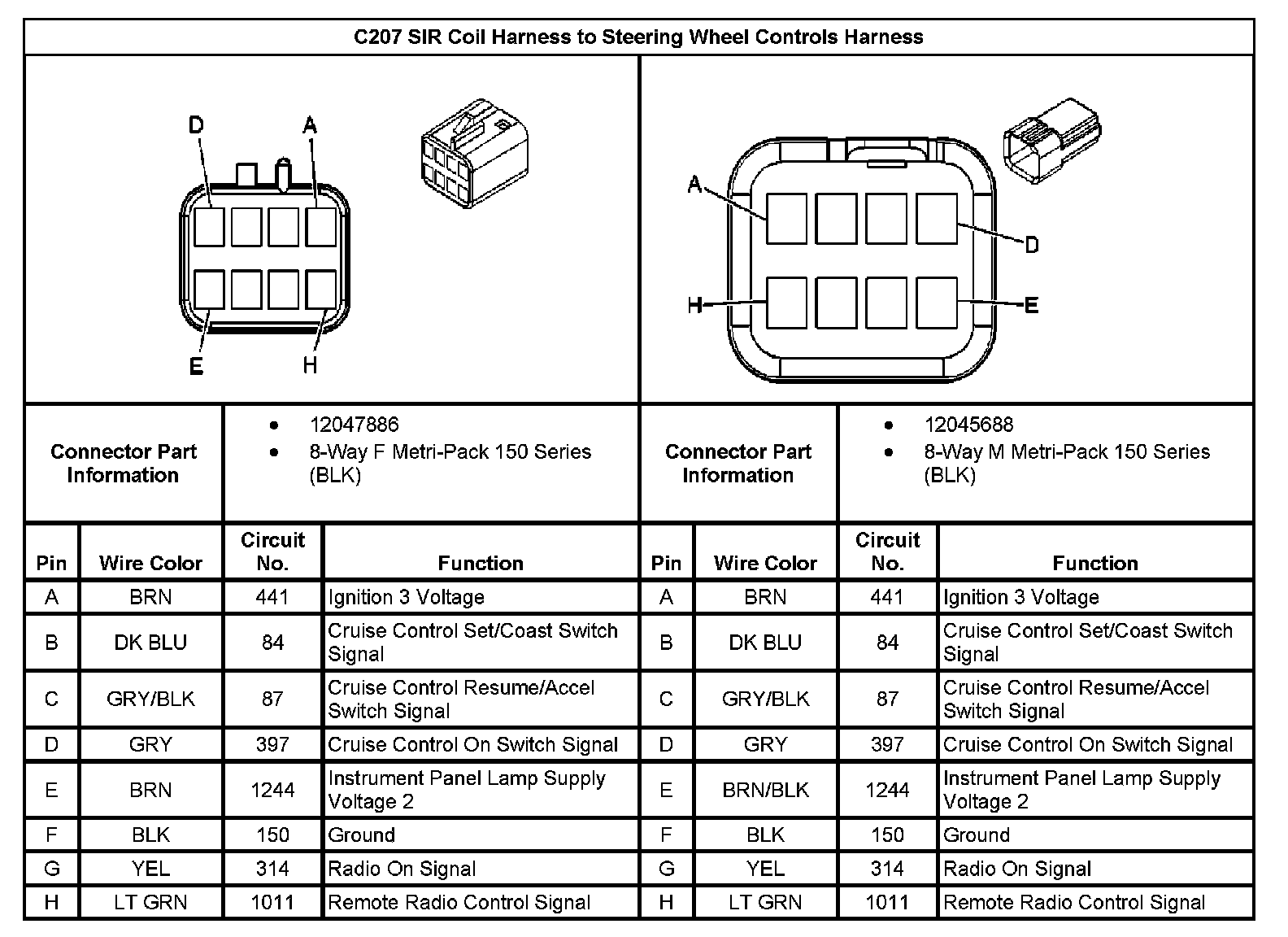

C207 SIR Coil Harness To Steering Wheel Controls Harness:
