Home >> Pontiac >> 2005 >> Grand AM V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector >> C700 - C799

C700 - C799

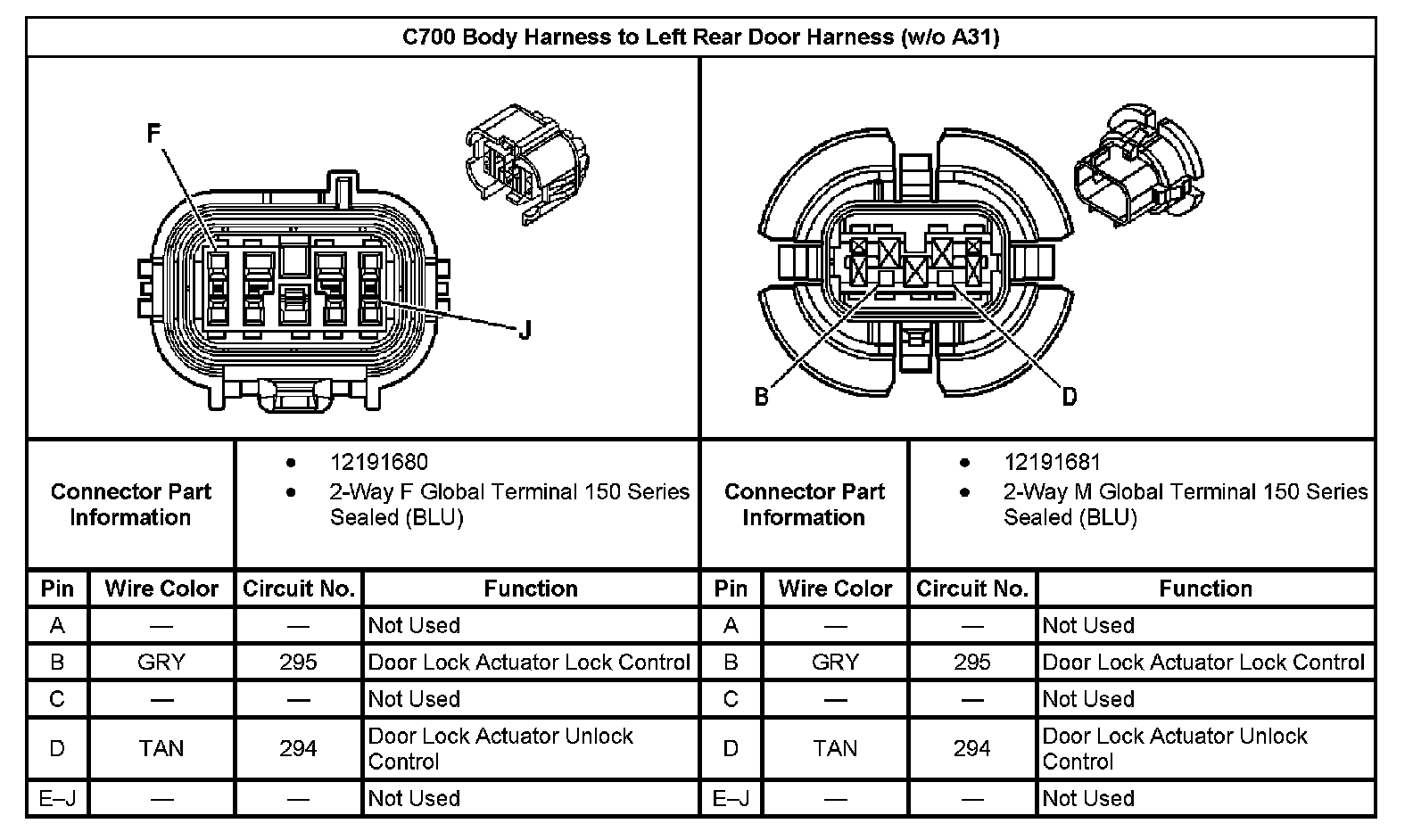

C700 Body Harness To Left Rear Door Harness (Without RPO Code A31):

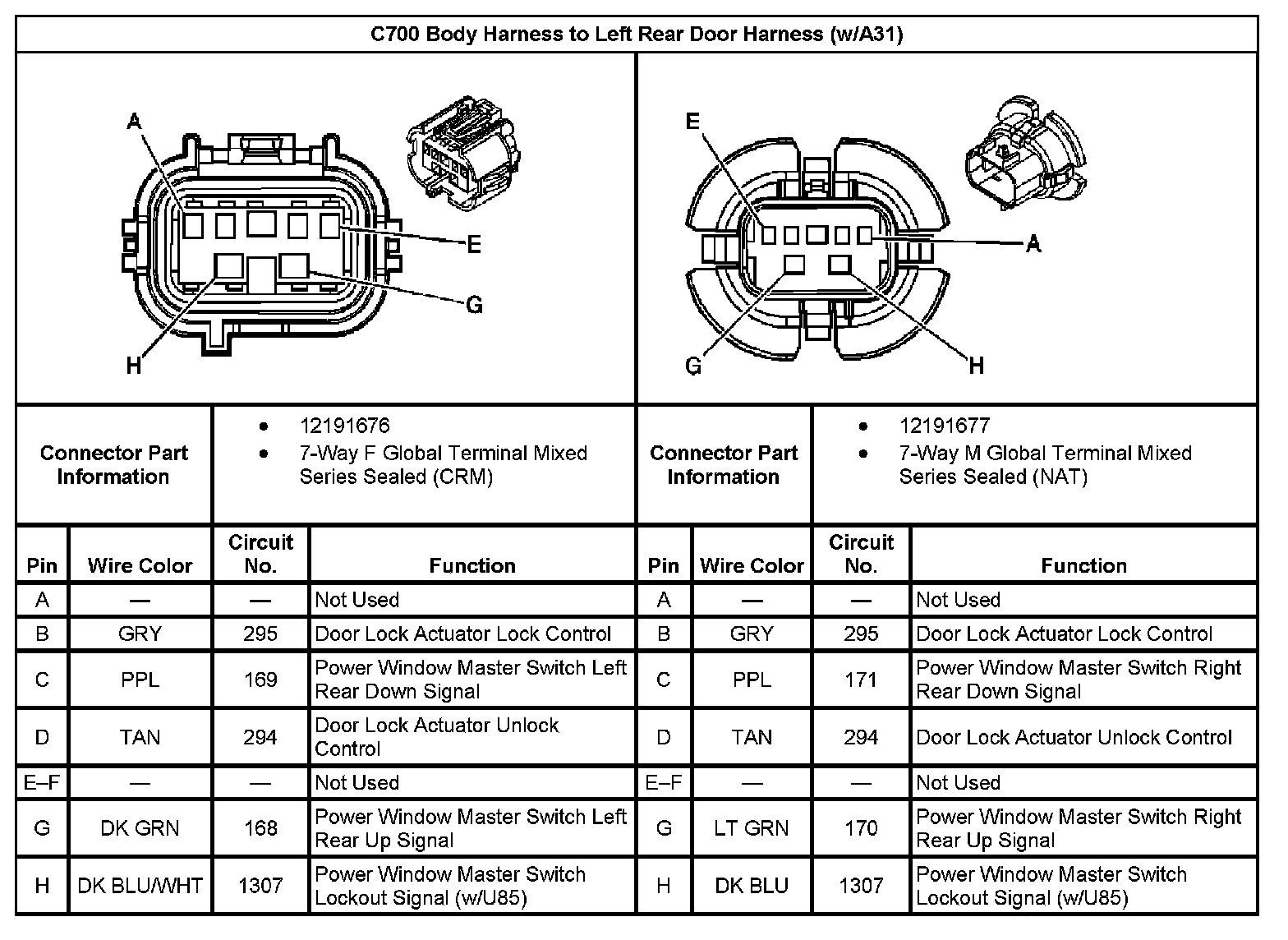

C700 Body Harness To Left Rear Door Harness (With RPO Code A31):
