Home >> Pontiac >> 2005 >> Grand AM V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Motor >> Seat Vertical Motor (With RPO Code AH3)

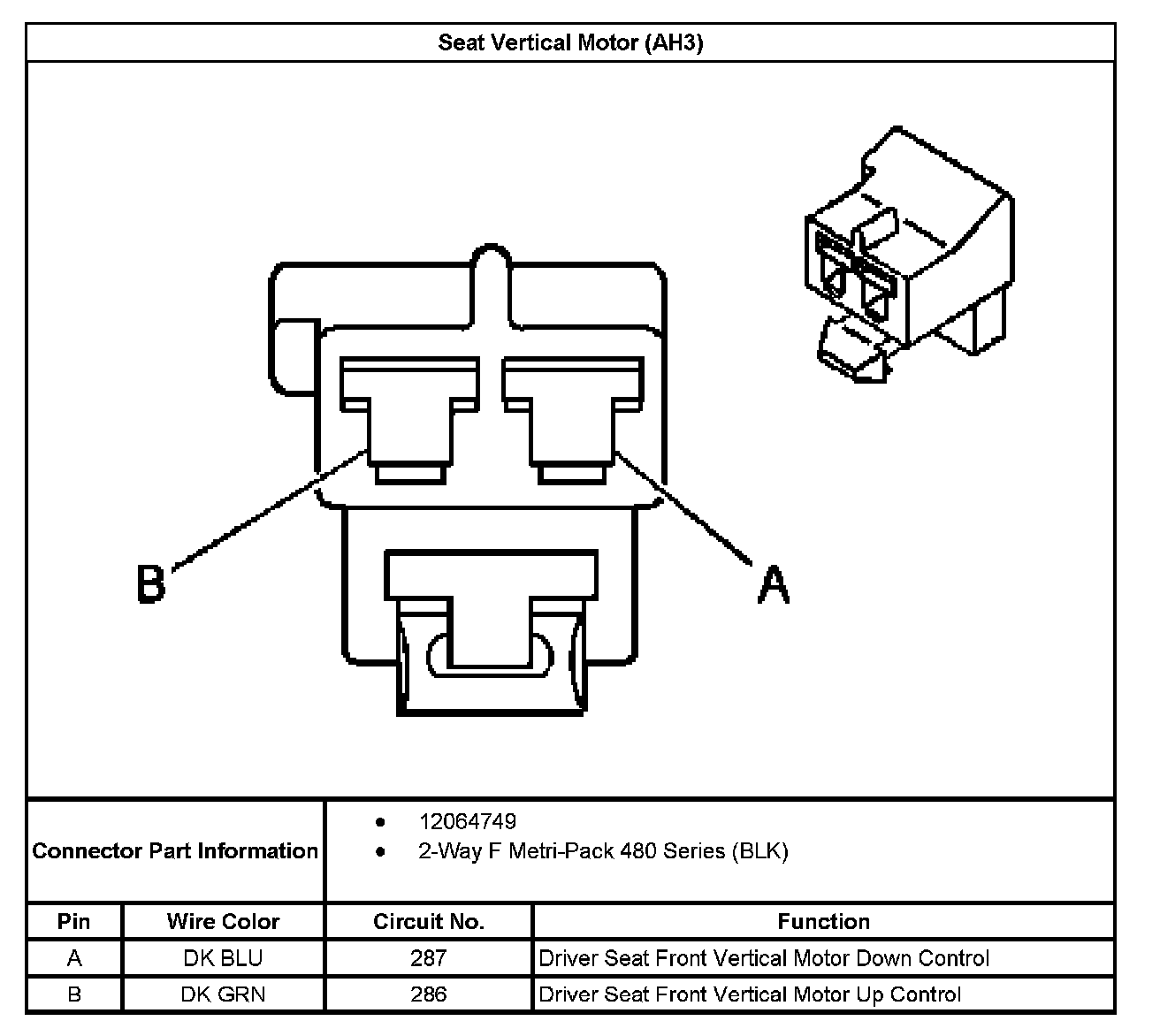

Seat Vertical Motor (With RPO Code AH3)

Seat Vertical Motor (With RPO Code AH3):
