Radiator Cooling Fan Motor Relay
Radiator Cooling Fan Motor Relay

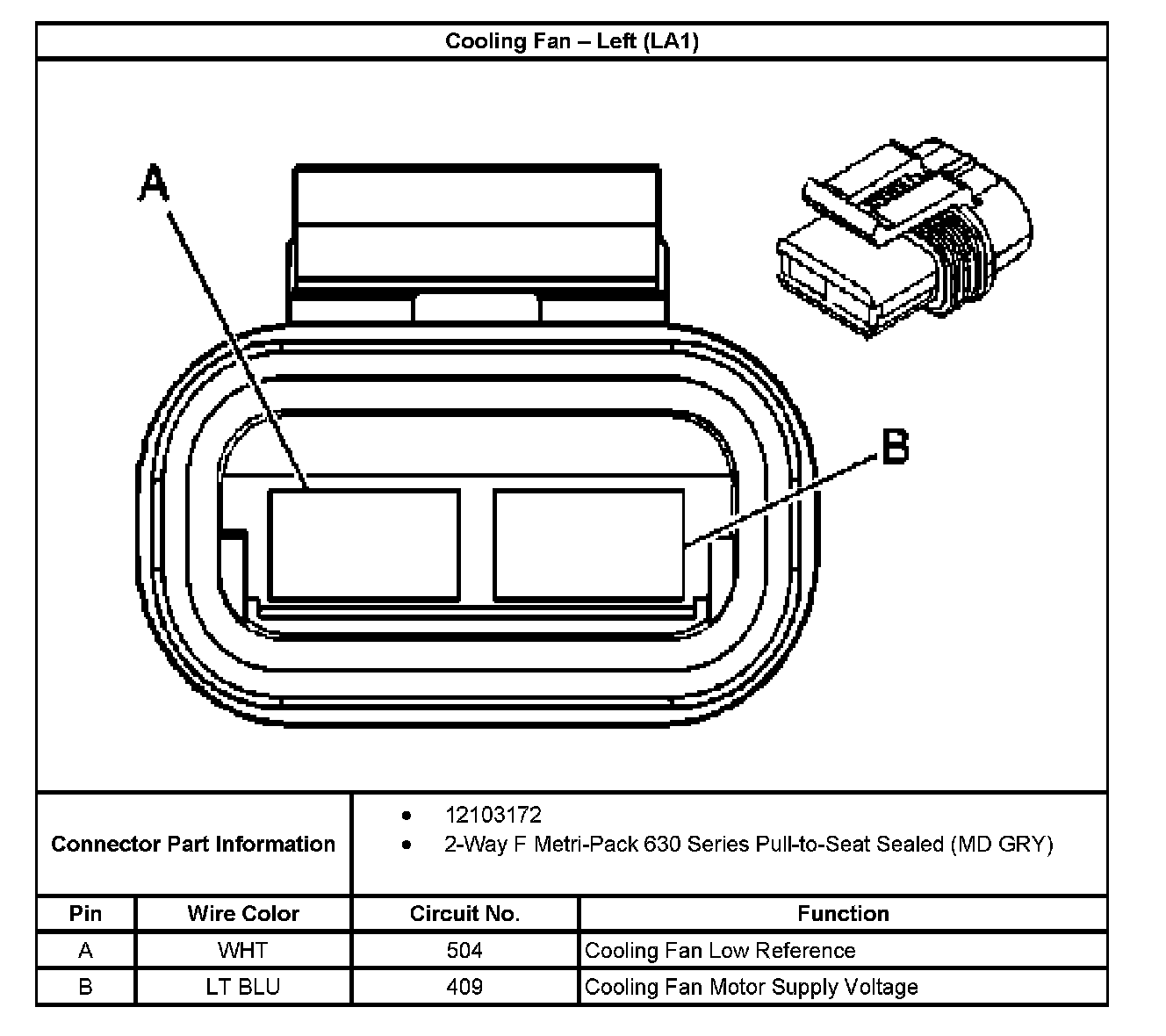

Cooling Fan - Left (LA1):
Cooling Fan-Right (LA1):
