Home >> Pontiac >> 2005 >> Grand AM V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> Speaker >> LR

LR

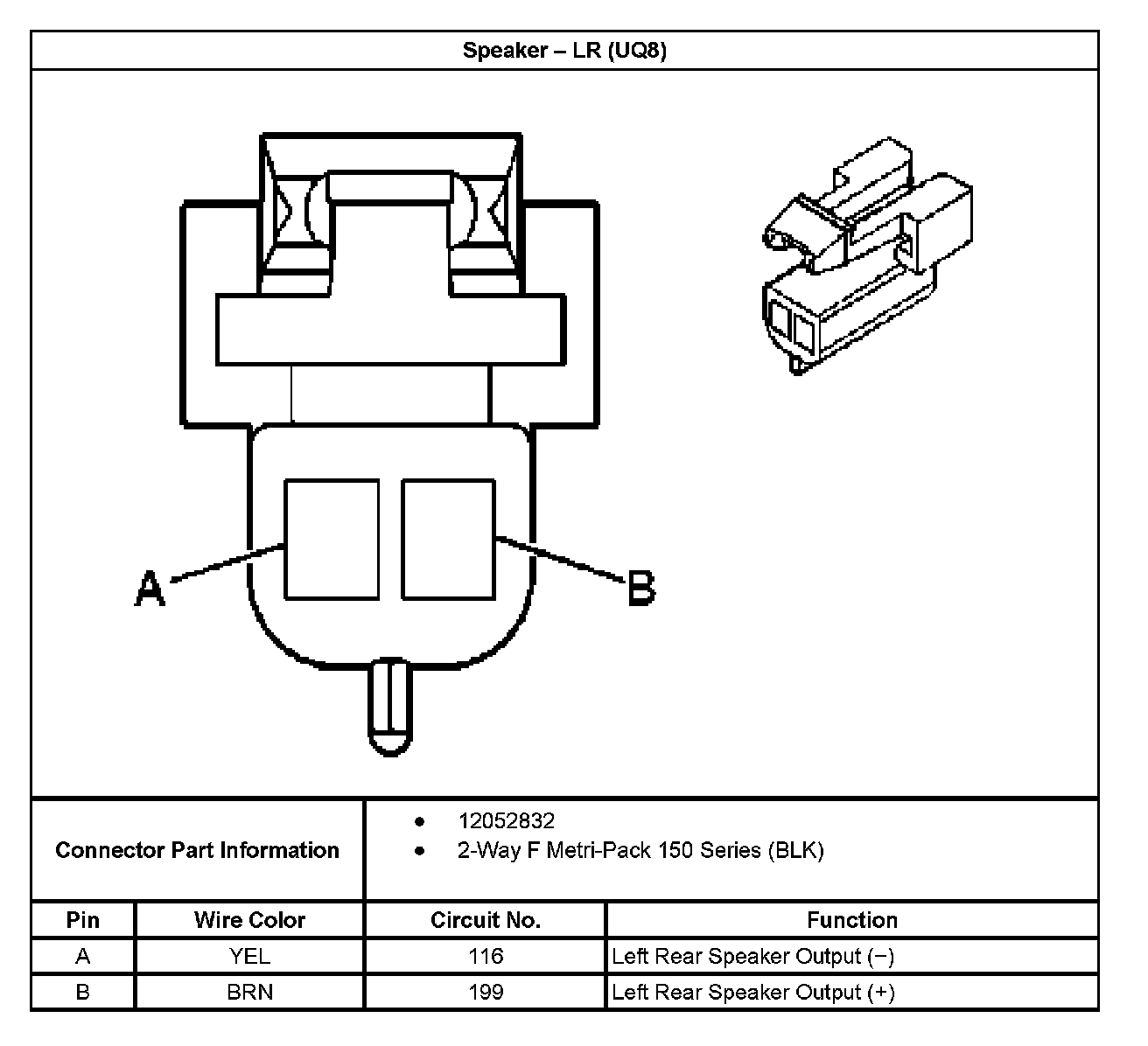

Speaker - LR (With RPO Code UQ8):

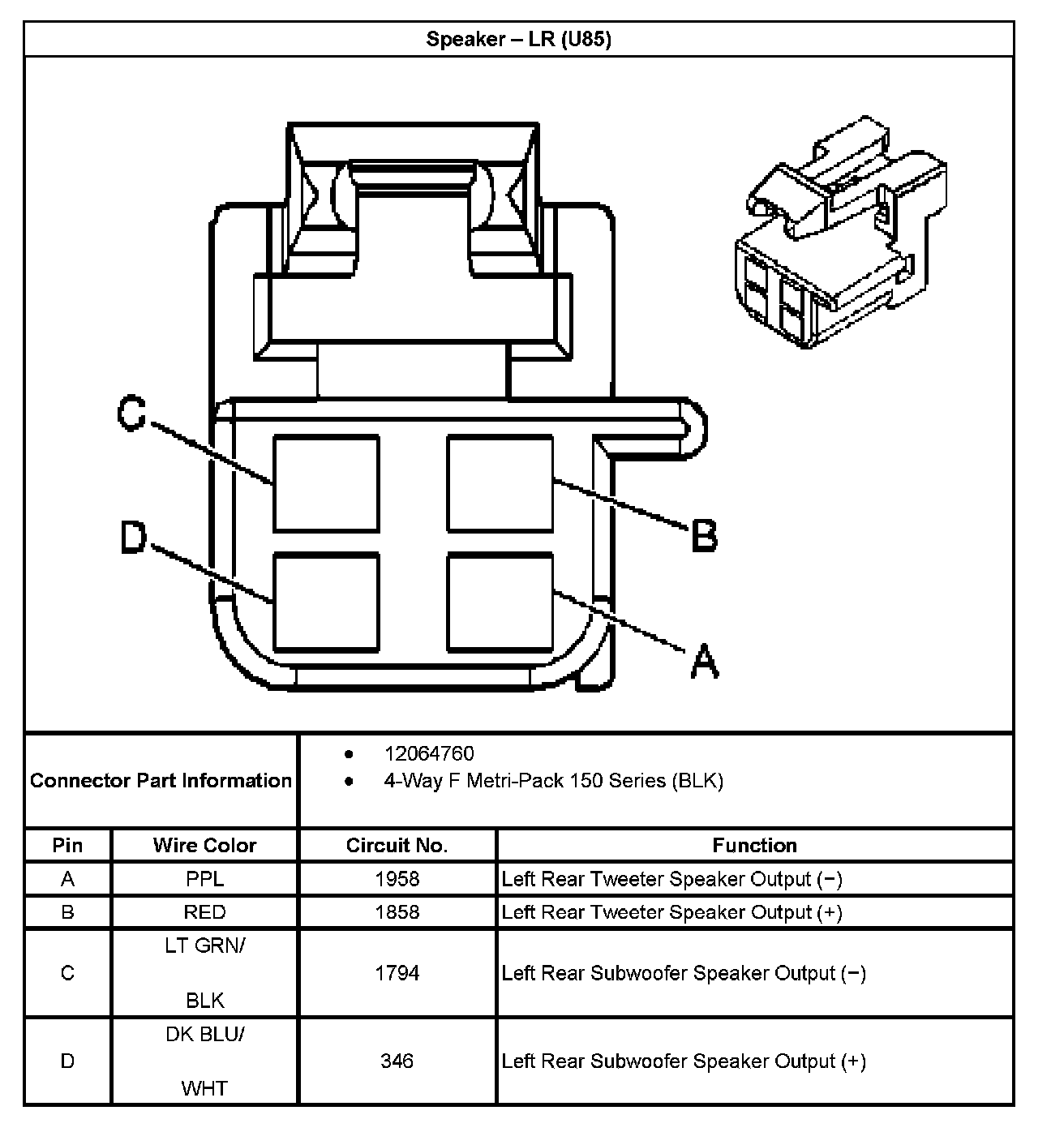

Speaker - LR (With RPO Code U85):
