Cruise Control

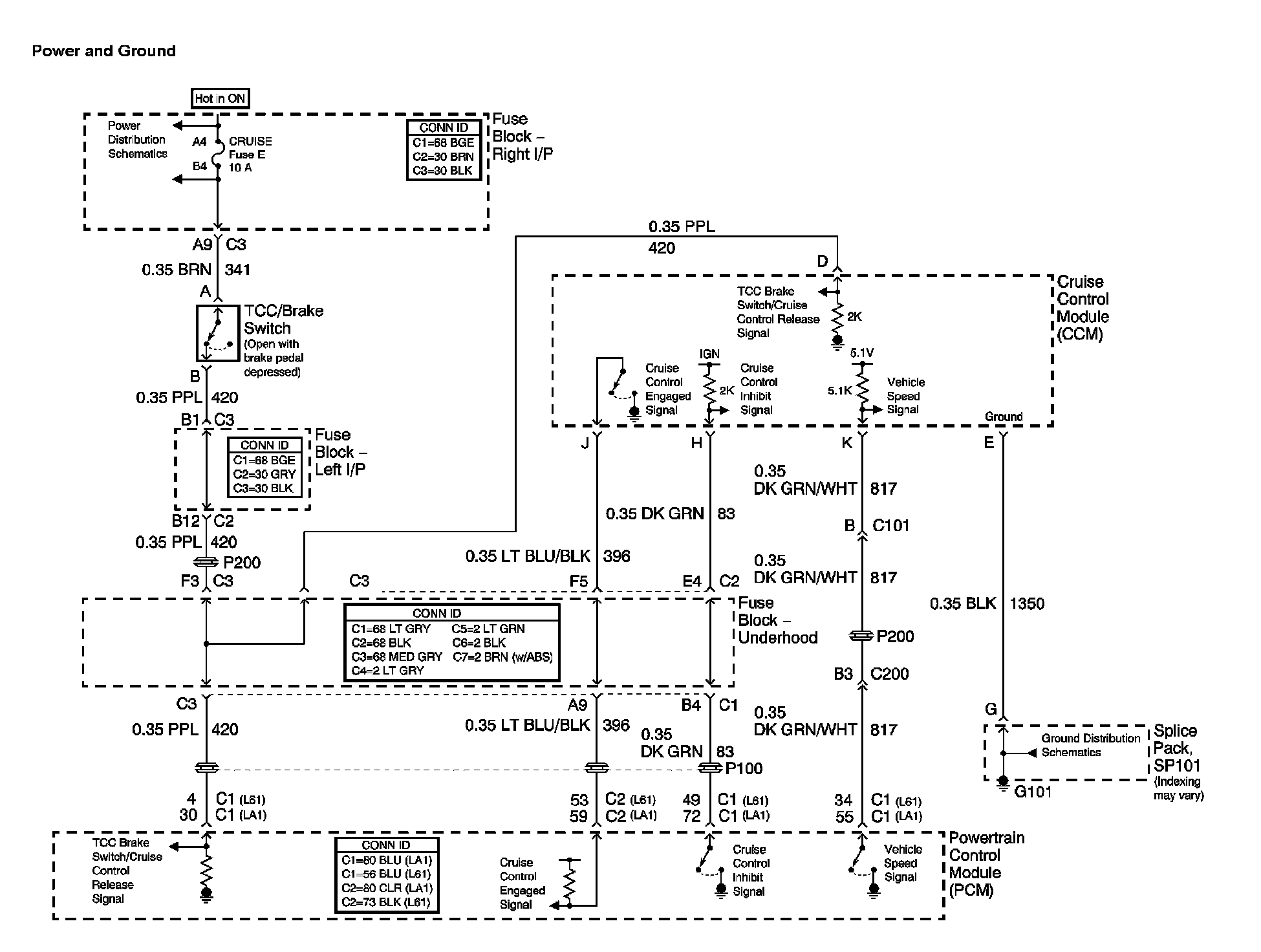

Cruise Control Diagram 1:

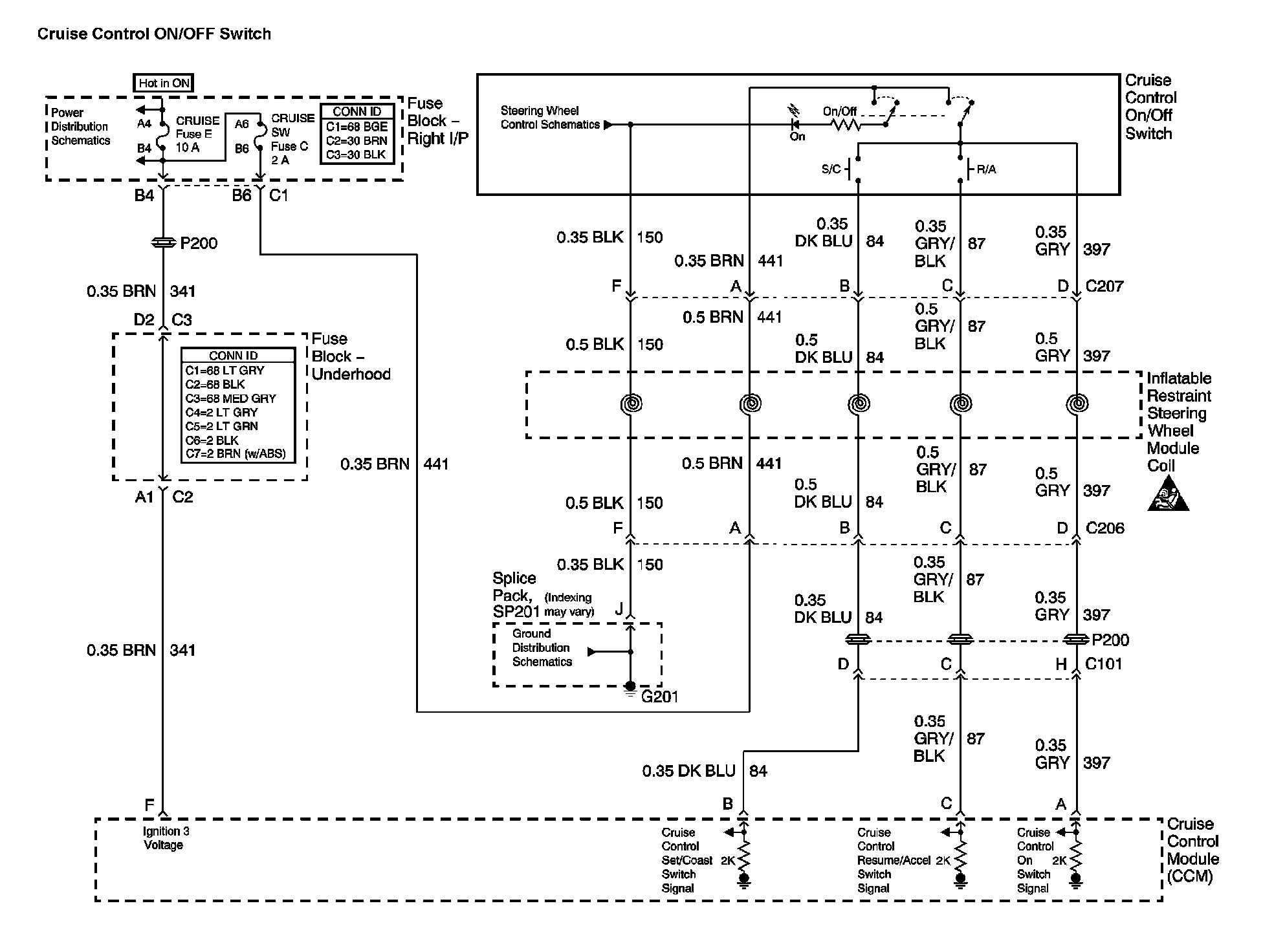

Cruise Control Diagram 2:

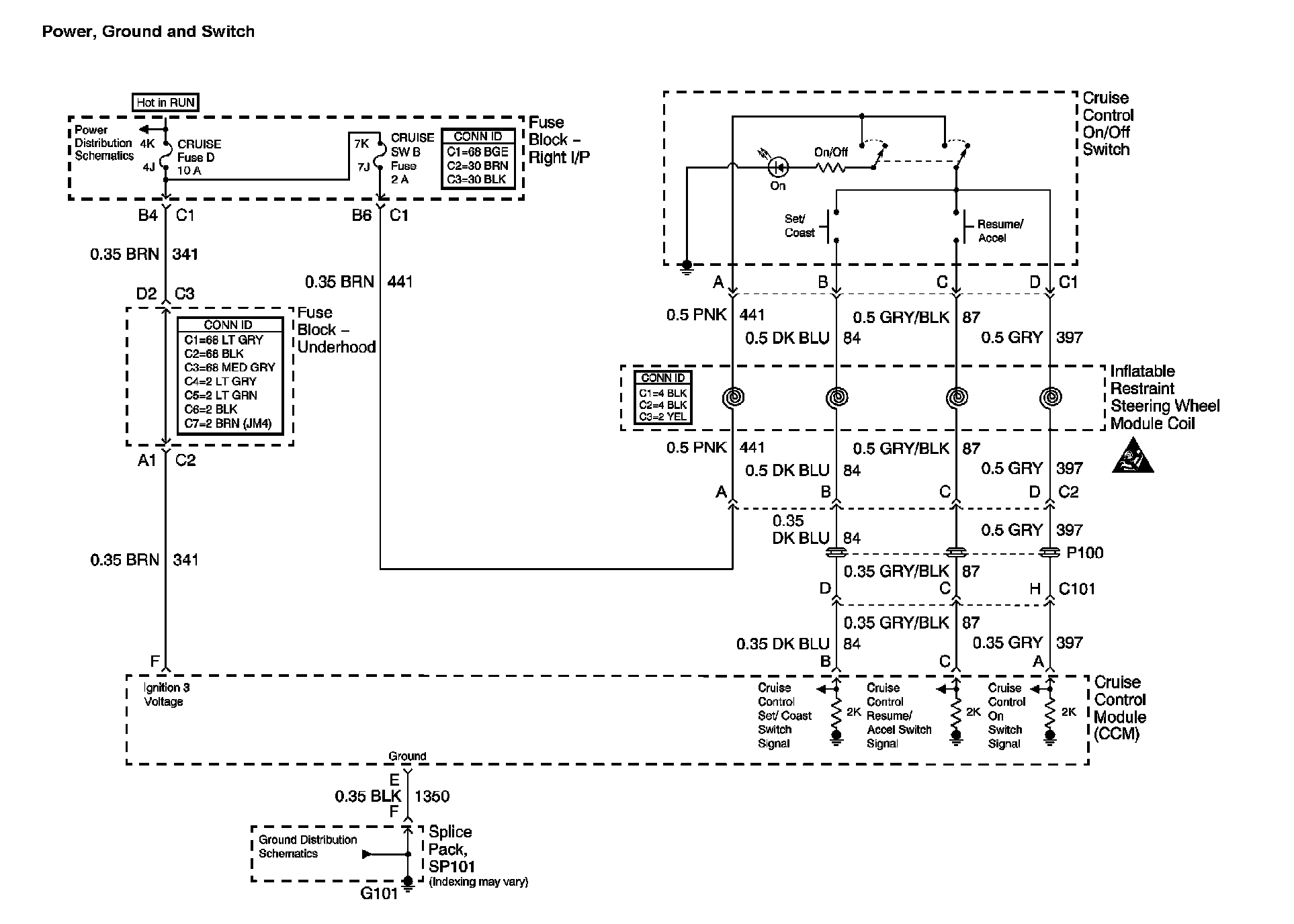

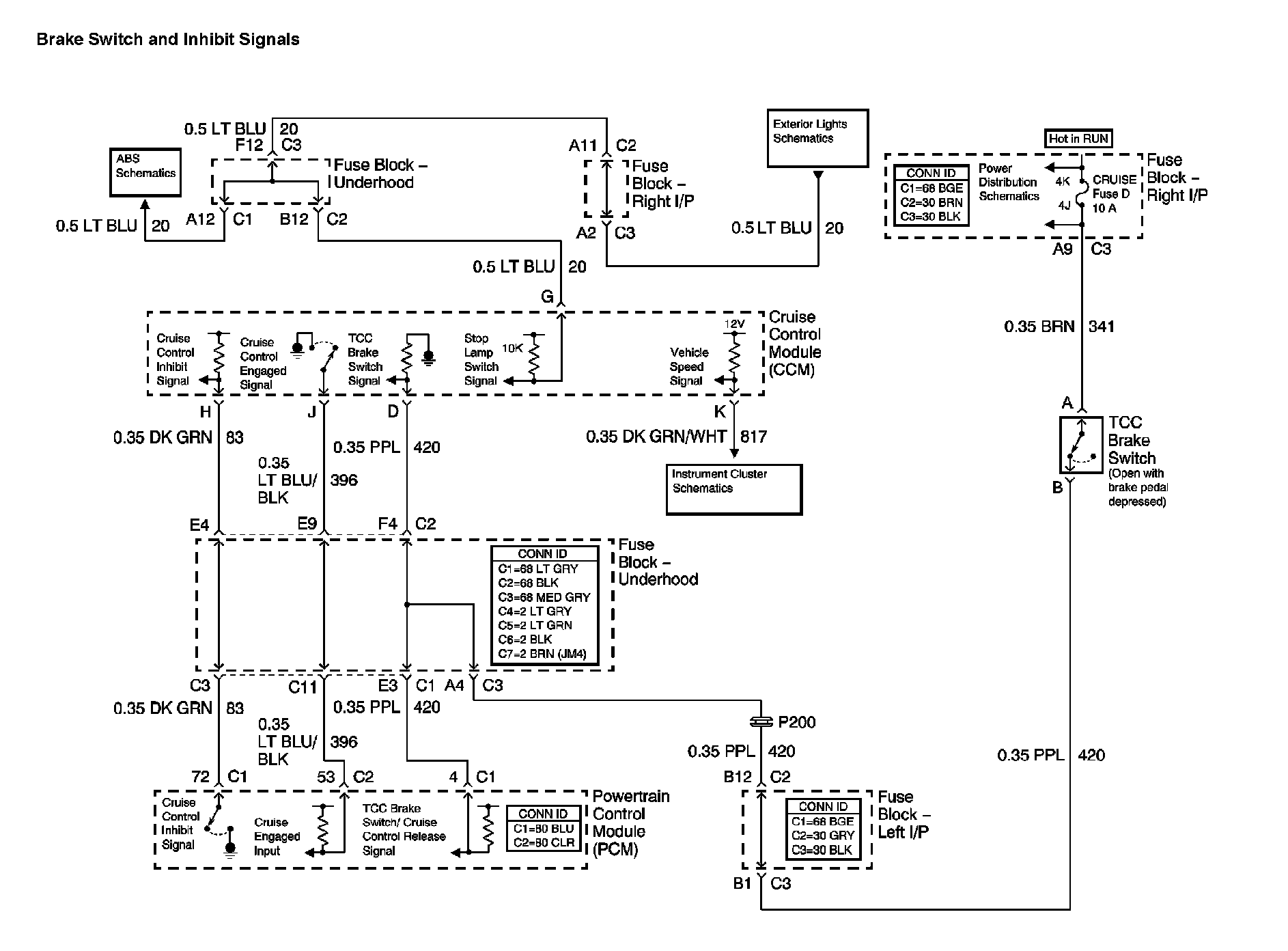

Cruise Control Diagram 3:

Location: The locations for the Connectors, Grounds, Splices,and grommets shown within these diagrams can be found via their numbers at vehicle locations. Locations
