Timing Components: Specifications

Crankshaft Balancer Bolt
First Pass 70 Nm (52 ft. lbs.)
Final Pass 72 degrees

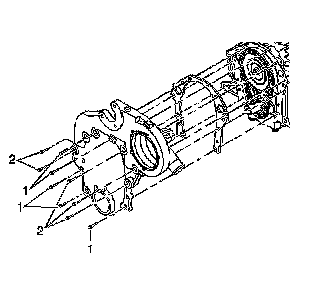

Engine Front Cover Bolt
Large Bolt 55 Nm (41 ft. lbs.)
Medium Bolt 55 Nm (41 ft. lbs.)
Small Bolt 27 Nm (20 ft. lbs.)

Timing chain dampener bolts 21 Nm (15 ft. lbs.)
