Blower Motor Resistor: Service and Repair

BLOWER MOTOR RESISTOR ASSEMBLY REPLACEMENT

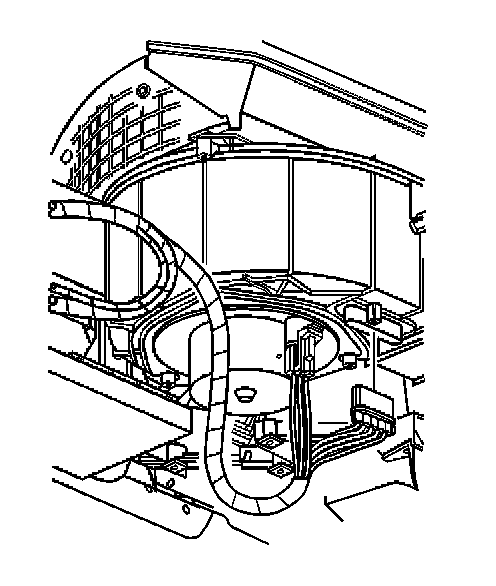

REMOVAL PROCEDURE




1. Remove the right side instrument panel (IP) insulator.
2. Disconnect the blower resistor electrical connector.




3. Remove the blower resistor screws.
4. Remove the blower motor resistor.

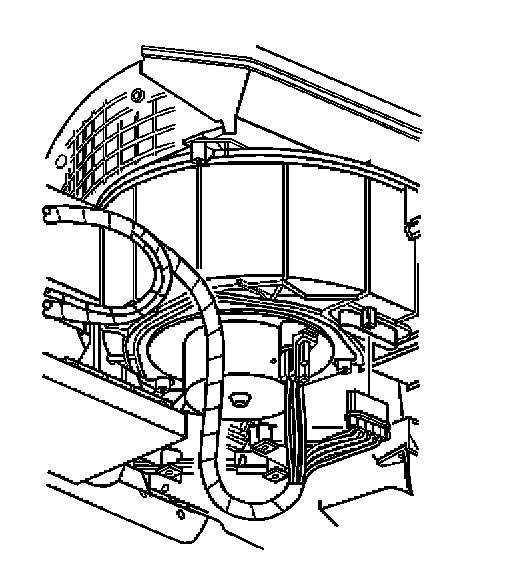

INSTALLATION PROCEDURE




1. Install the blower resistor.
2. Install the blower resistor screws.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the screws to 1 N.m (9 lb in).




3. Connect the blower resistor electrical connector.
4. Install the right side instrument panel (IP) insulator.
