Turn Signal Lamp: Diagrams

Lamp Assembly - LR:



Lamp Assembly - RR:



Park/Turn Signal Lamp - LF:

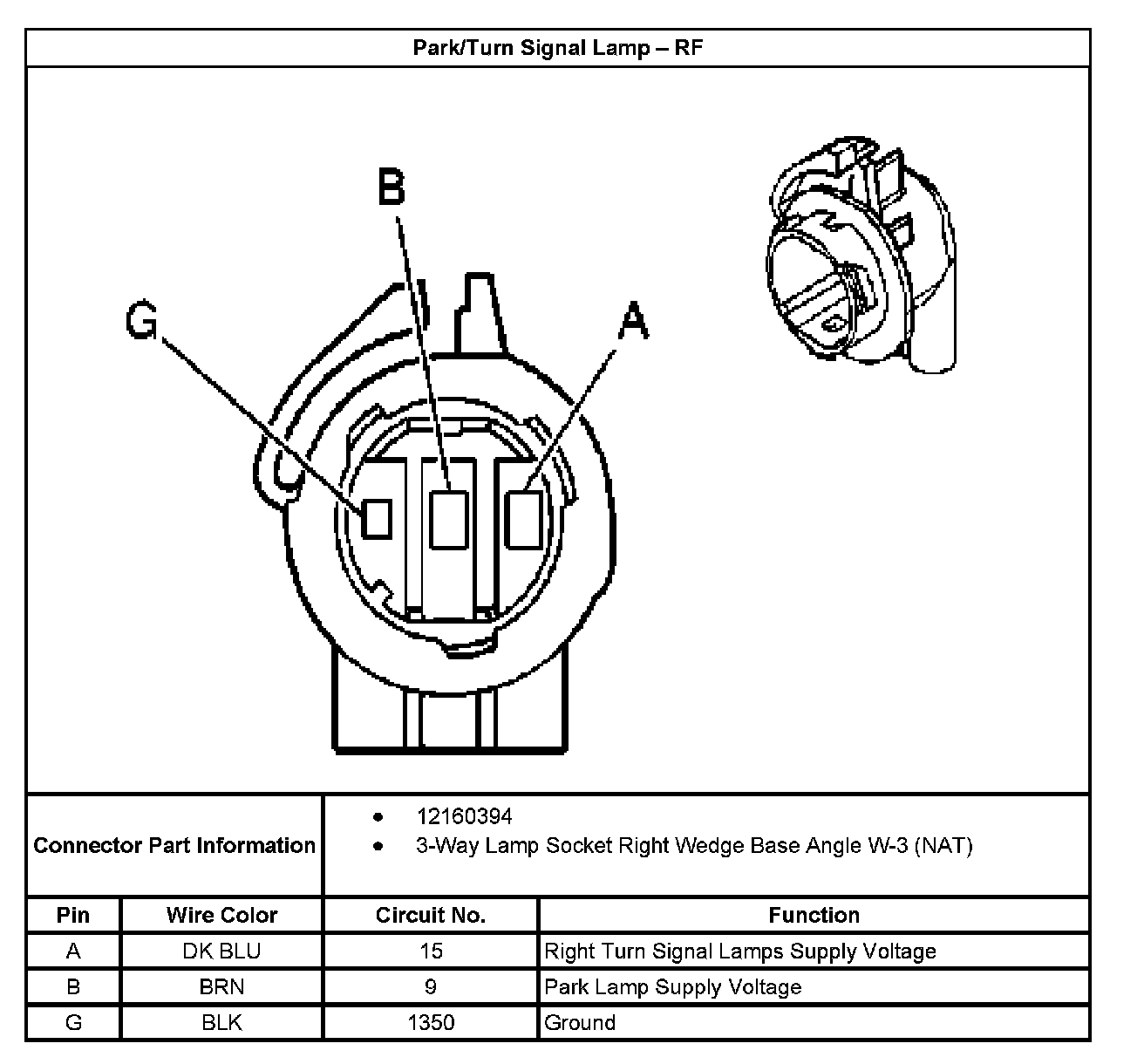

Park/Turn Signal Lamp - RF:
