Wipers Inoperative - One or More Modes

WIPERS INOPERATIVE - ONE OR MORE MODES

TEST DESCRIPTION

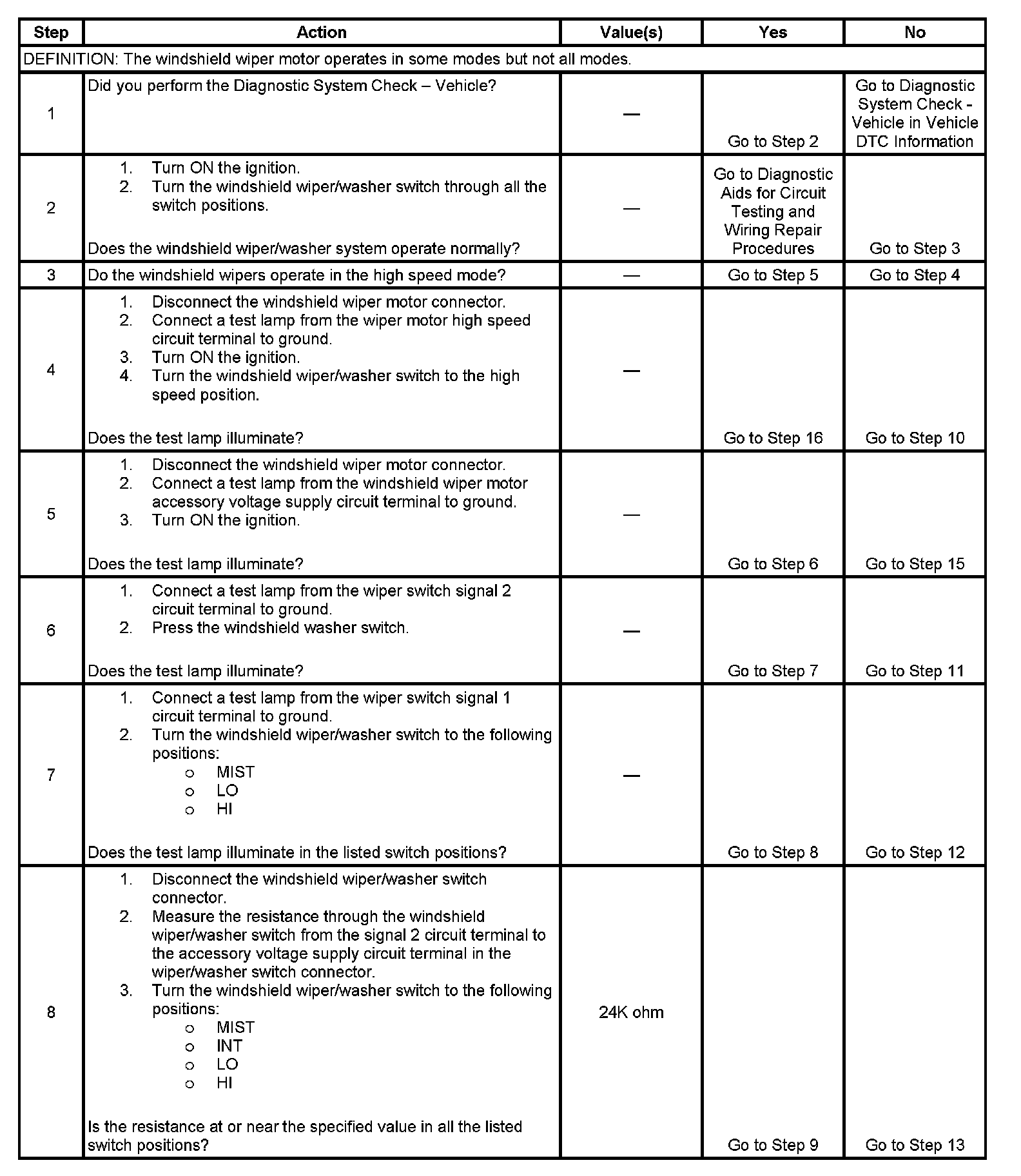

Steps 1 - 8:

Steps 9 - 18:

The numbers below refer to the step numbers on the diagnostic table.
8. This step tests for continuity through the 24K ohm resistor in the windshield wiper/washer switch.
9. This step tests for continuity through the delay resistors in the windshield wiper/washer switch. The measured resistance will change in sequence from high to low as the delay speed is increased.
