Brake Pulsation



Brake Pulsation
Test Description

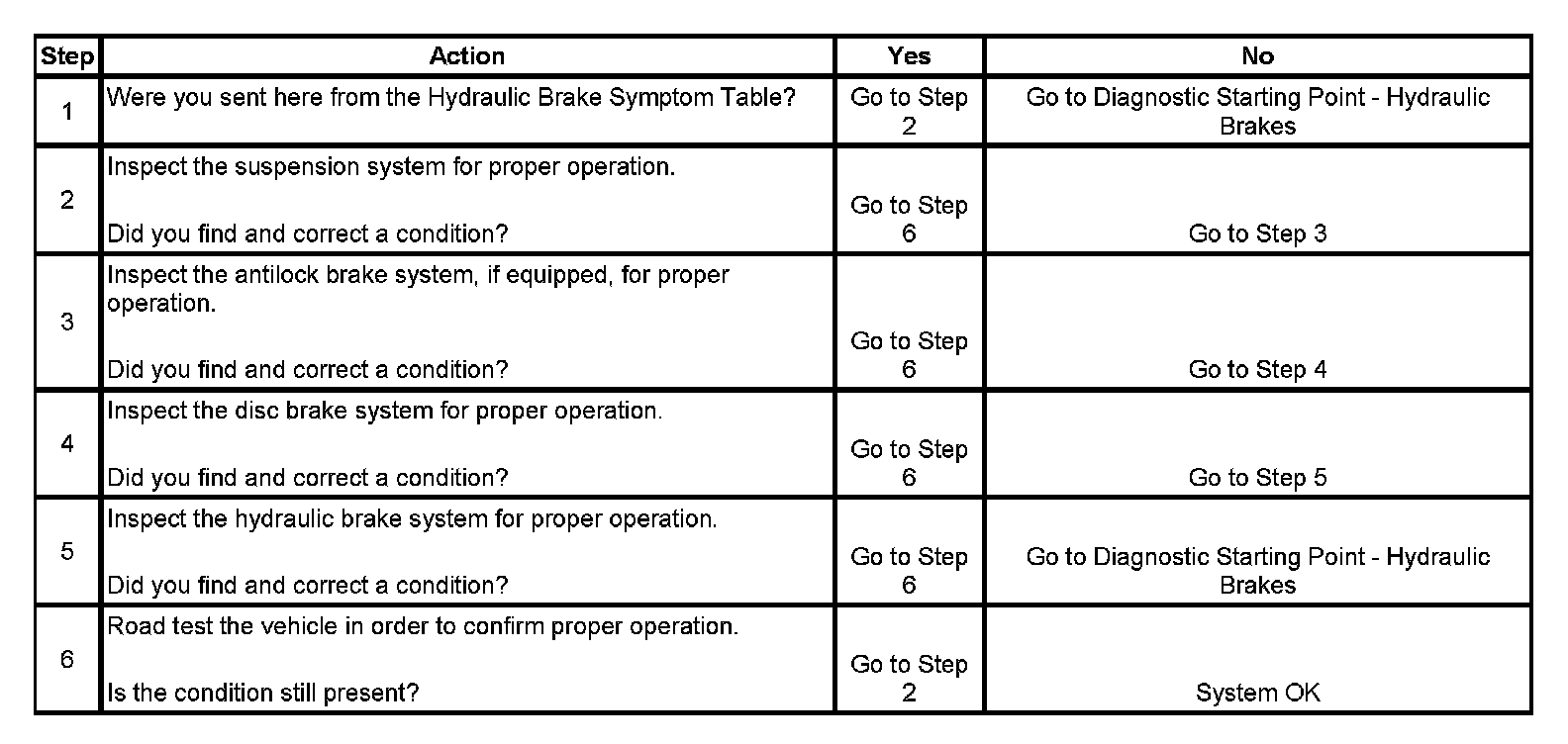

This number refers to the step numbers on the diagnostic table:
2. Suspension components that are not operating properly may cause a disturbance to the vehicle during application of the brake system.





3. Antilock brake system operation could produce feedback through the brake pedal during application of the brake system.
