Home >> Pontiac >> 2005 >> Grand Prix V8-5.3L VIN C >> Repair and Diagnosis >> Diagrams >> Components

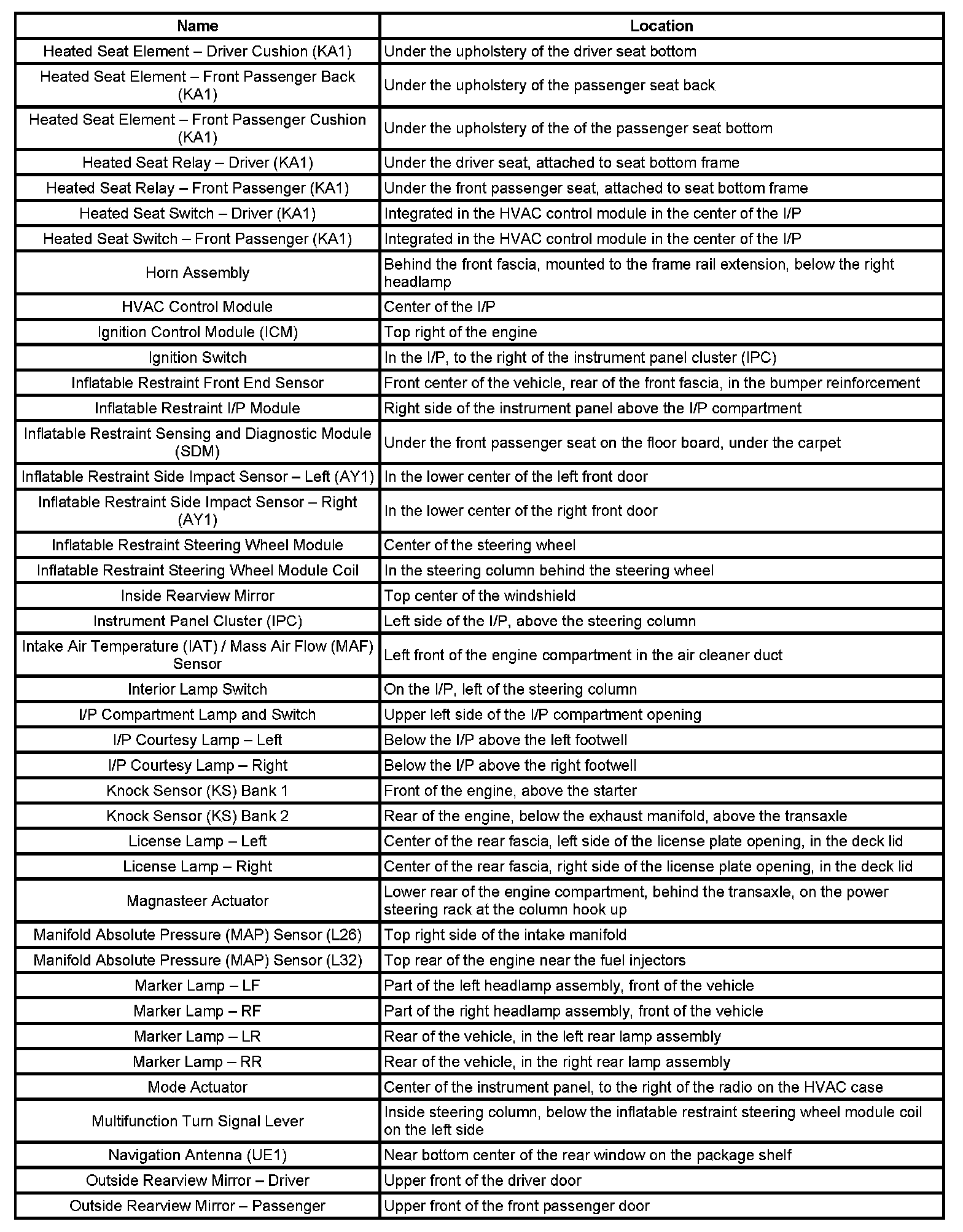

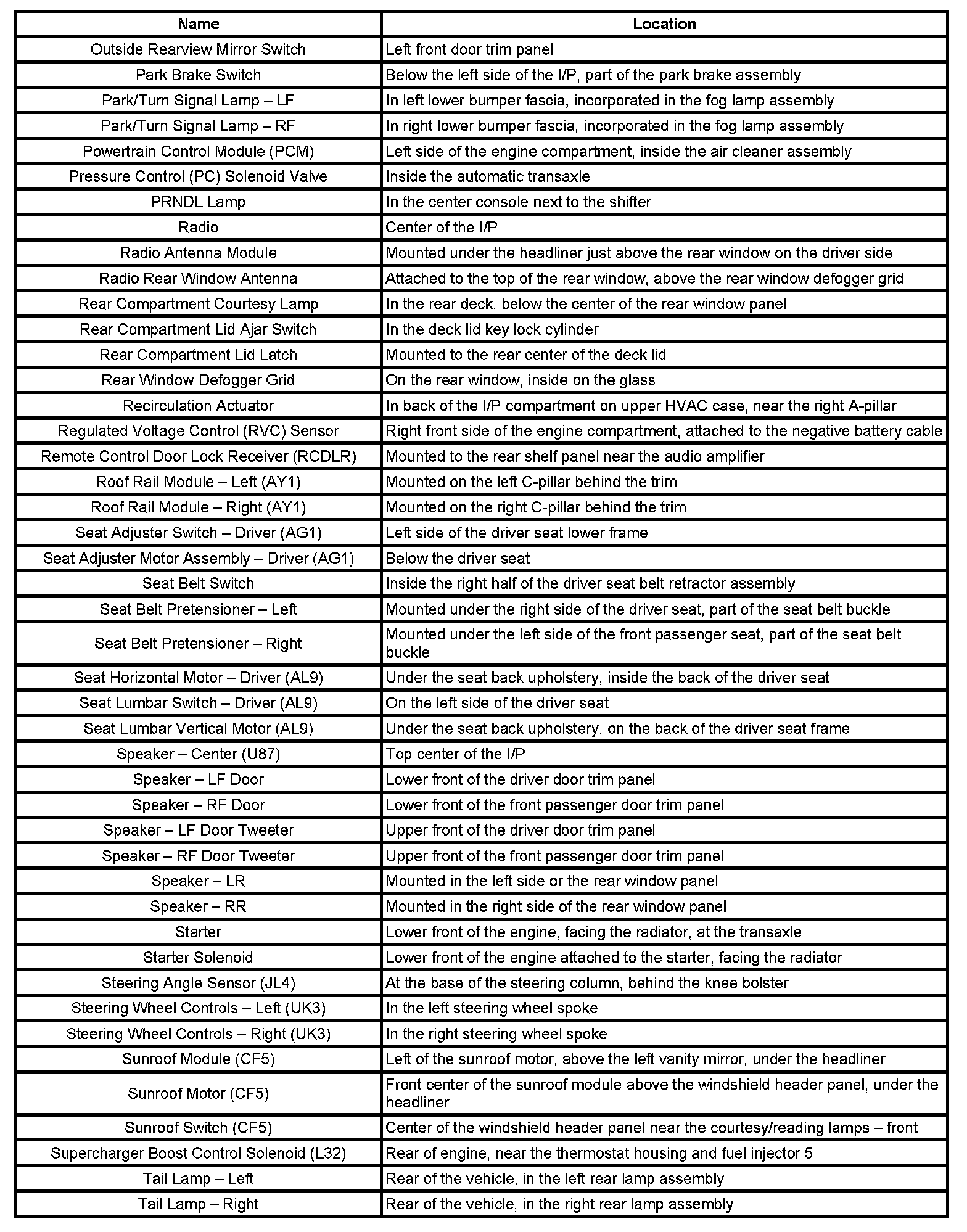

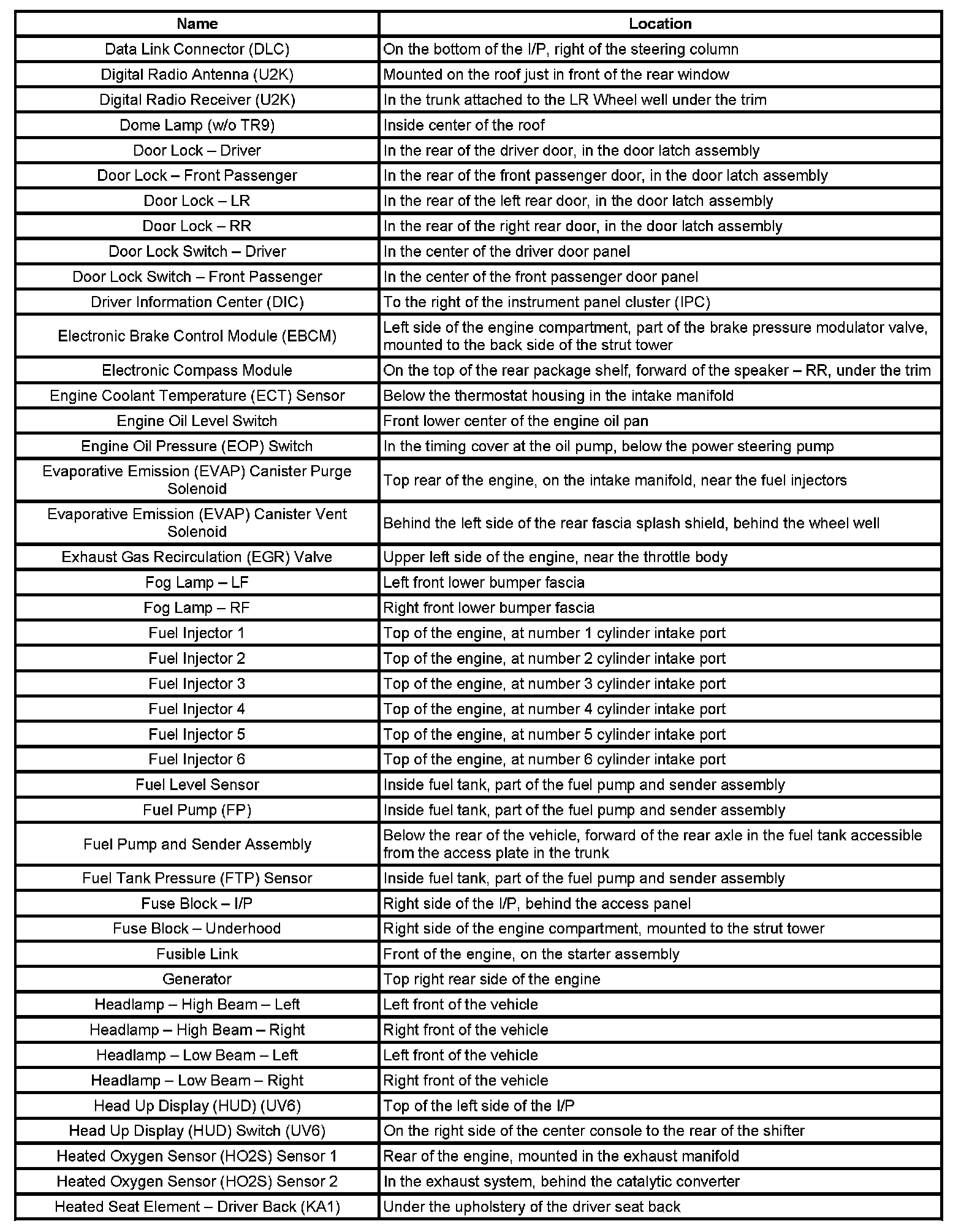

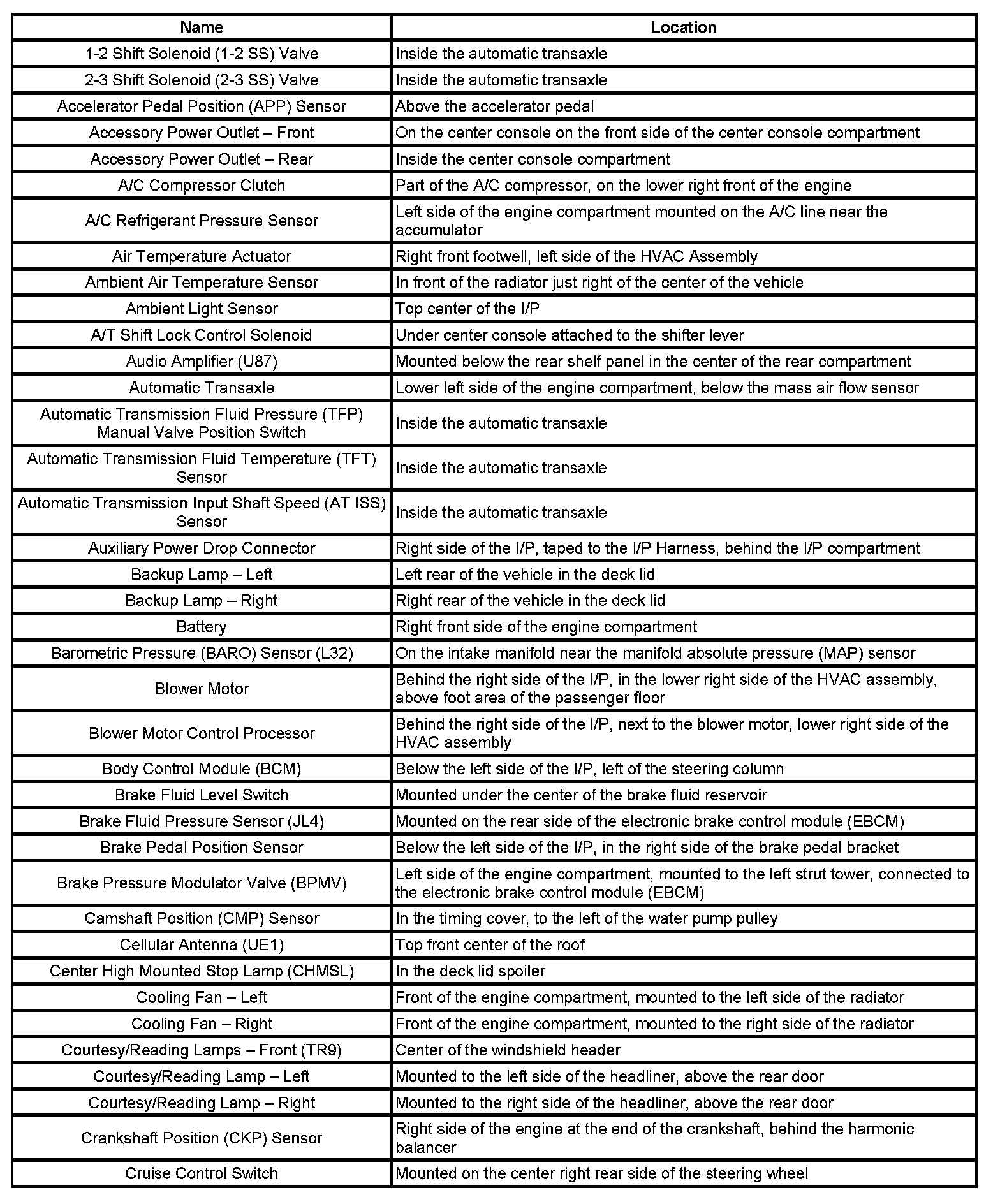

Components

1-2 - Cr:

Da - He:

He - Ou:

Ou - Ta:

Ta - Ya:
