Amplifier, Sound System
Amplifier, Sound System

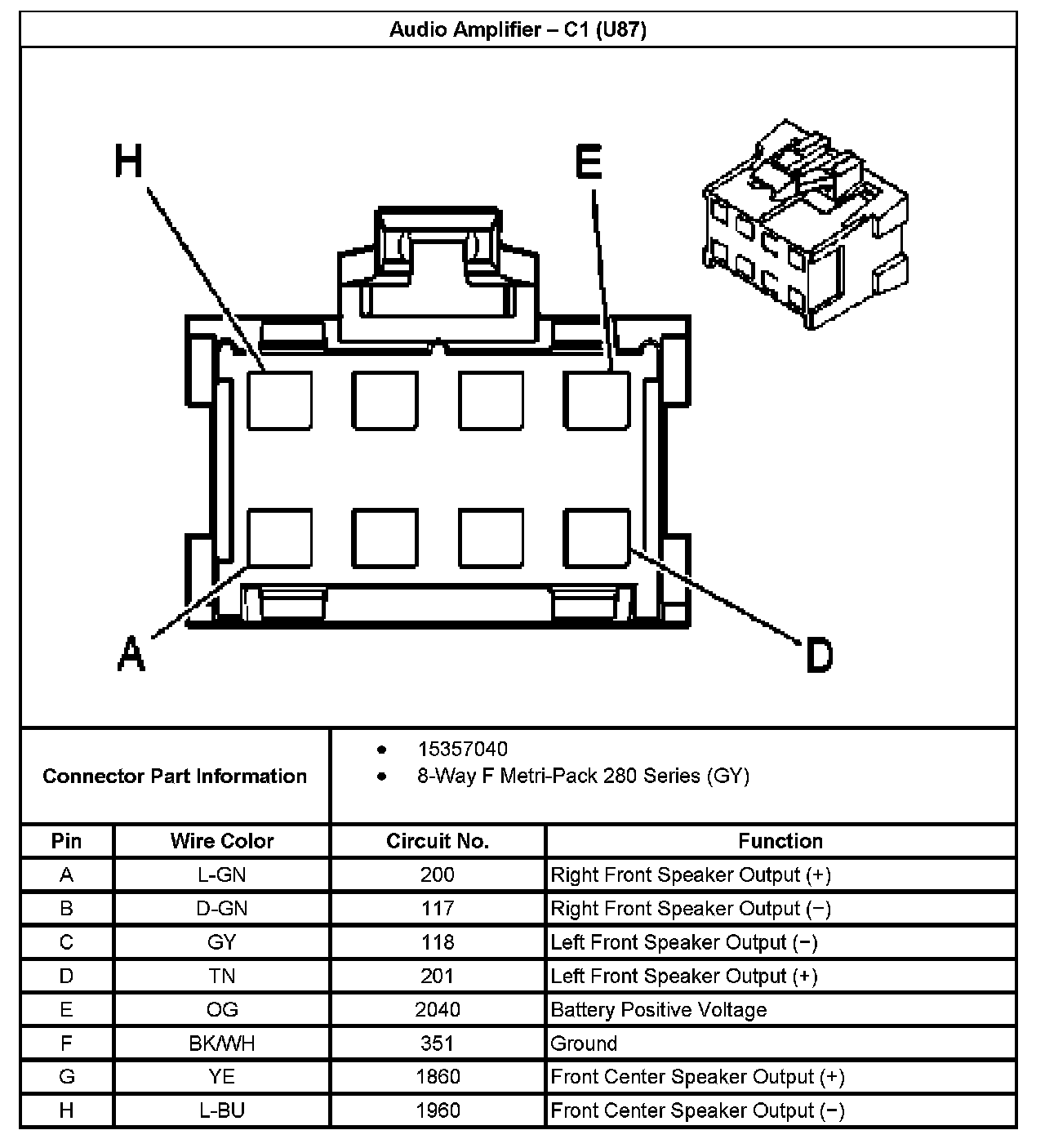

Audio Amplifier - C1 (With RPO Code U67):

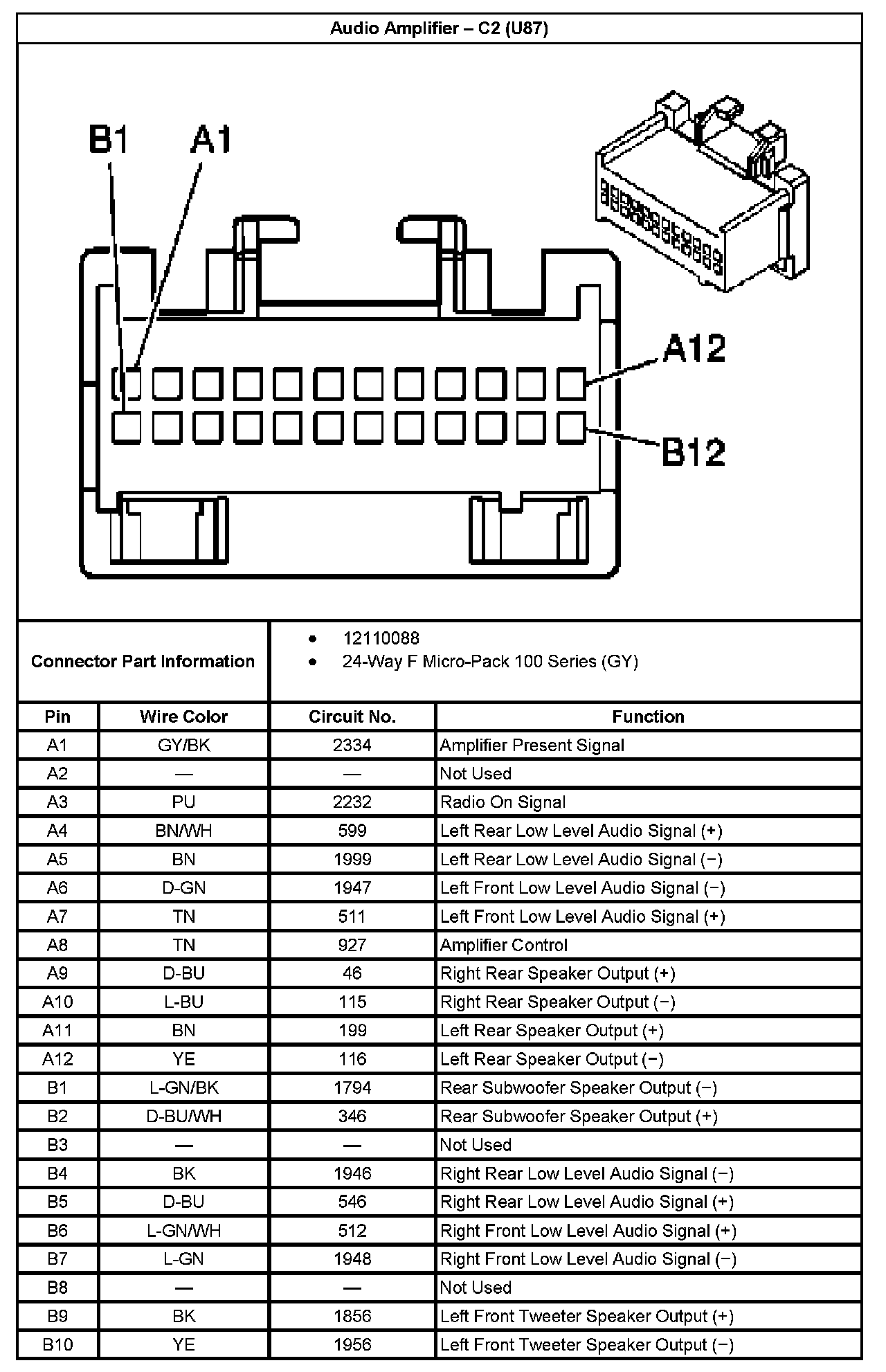

Audio Amplifier - C2 (With RPO Code U87) Part 1:
Audio Amplifier - C2 (With RPO Code U87) Part 2:
