C210
C210
C210 (With RPO Code C67) I/P Harness To Body Harness:

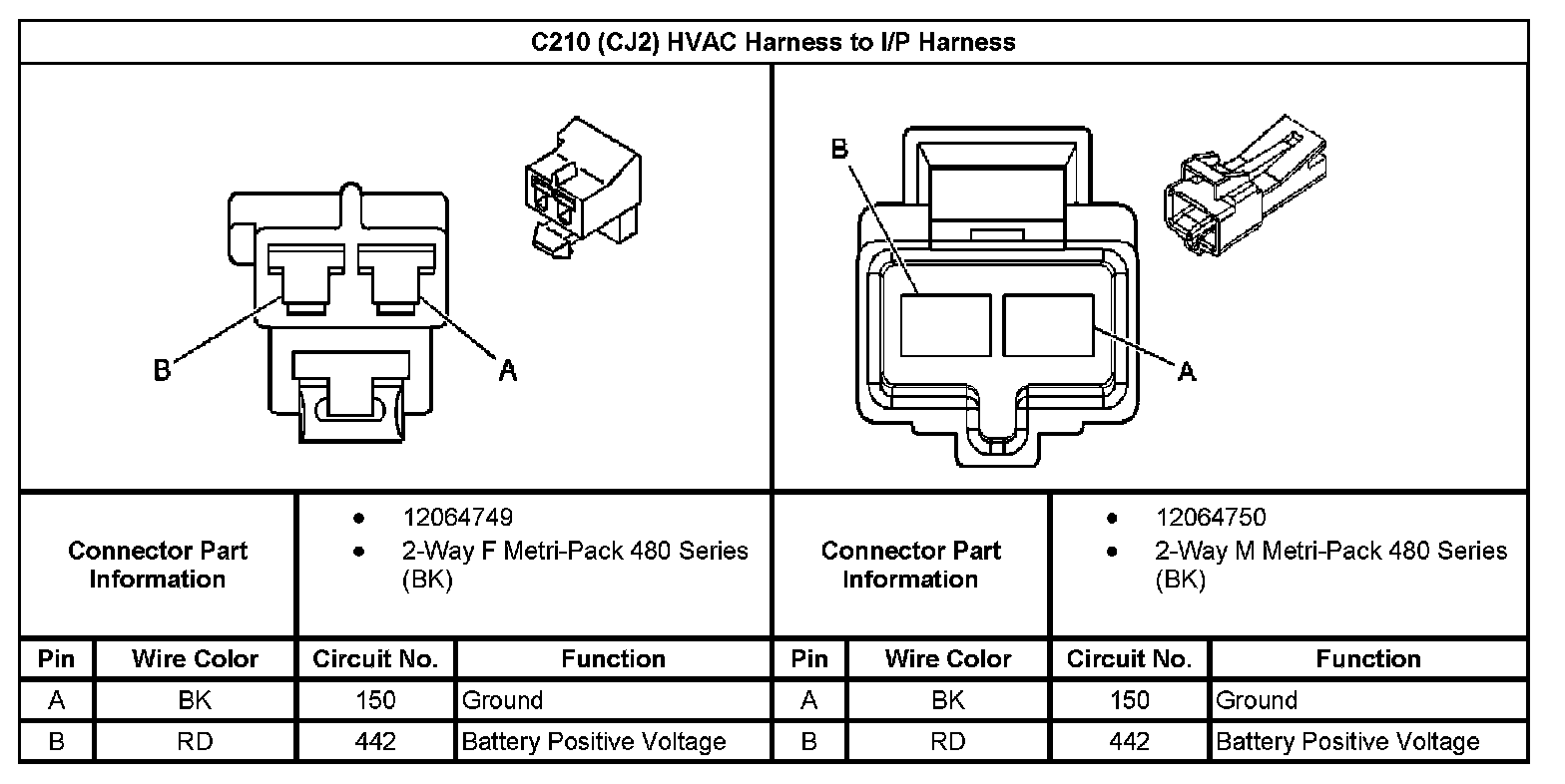

C210 (With RPO Code CJ2) HVAC Harness To I/P Harness:
