C302
C302

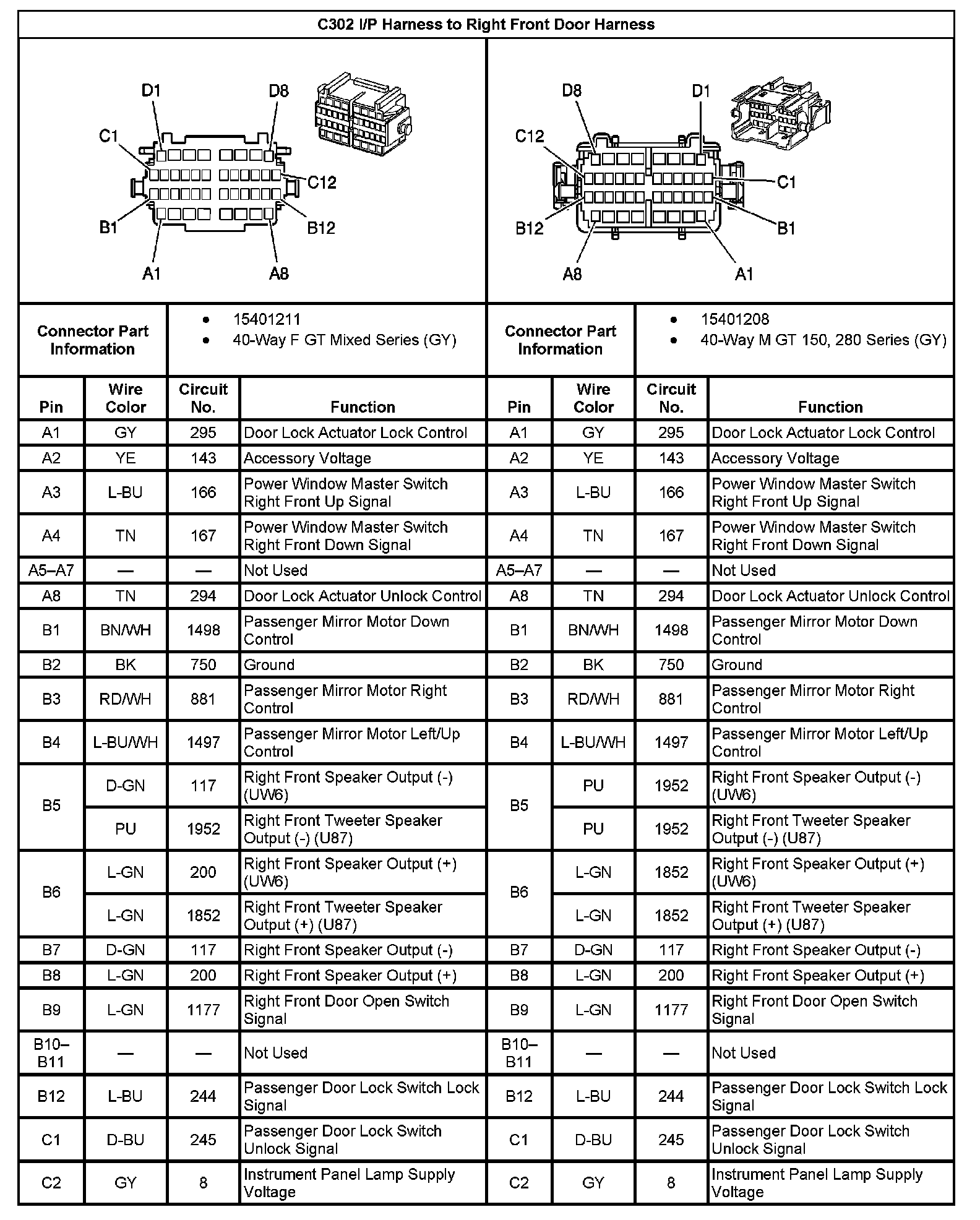

C302 I/P Harness To Right Front Door Harness Part 1:

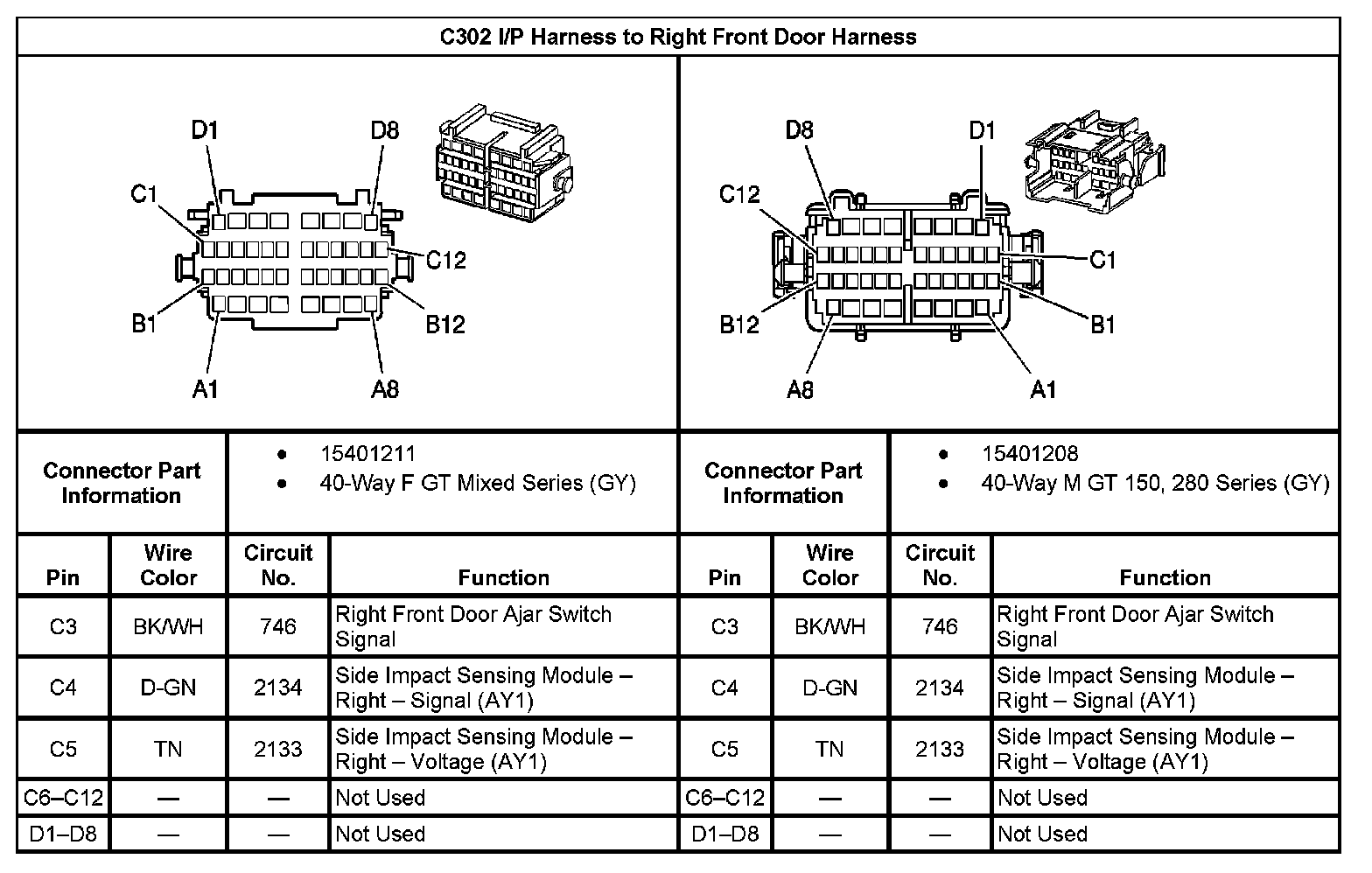

C302 I/P Harness To Right Front Door Harness Part 2:
