Home >> Pontiac >> 2005 >> Grand Prix V8-5.3L VIN C >> Repair and Diagnosis >> Diagrams >> Connector Views >> Clockspring Assembly / Spiral Cable, Air Bag >> Inflatable Restraint Steering Wheel Module Coil C1

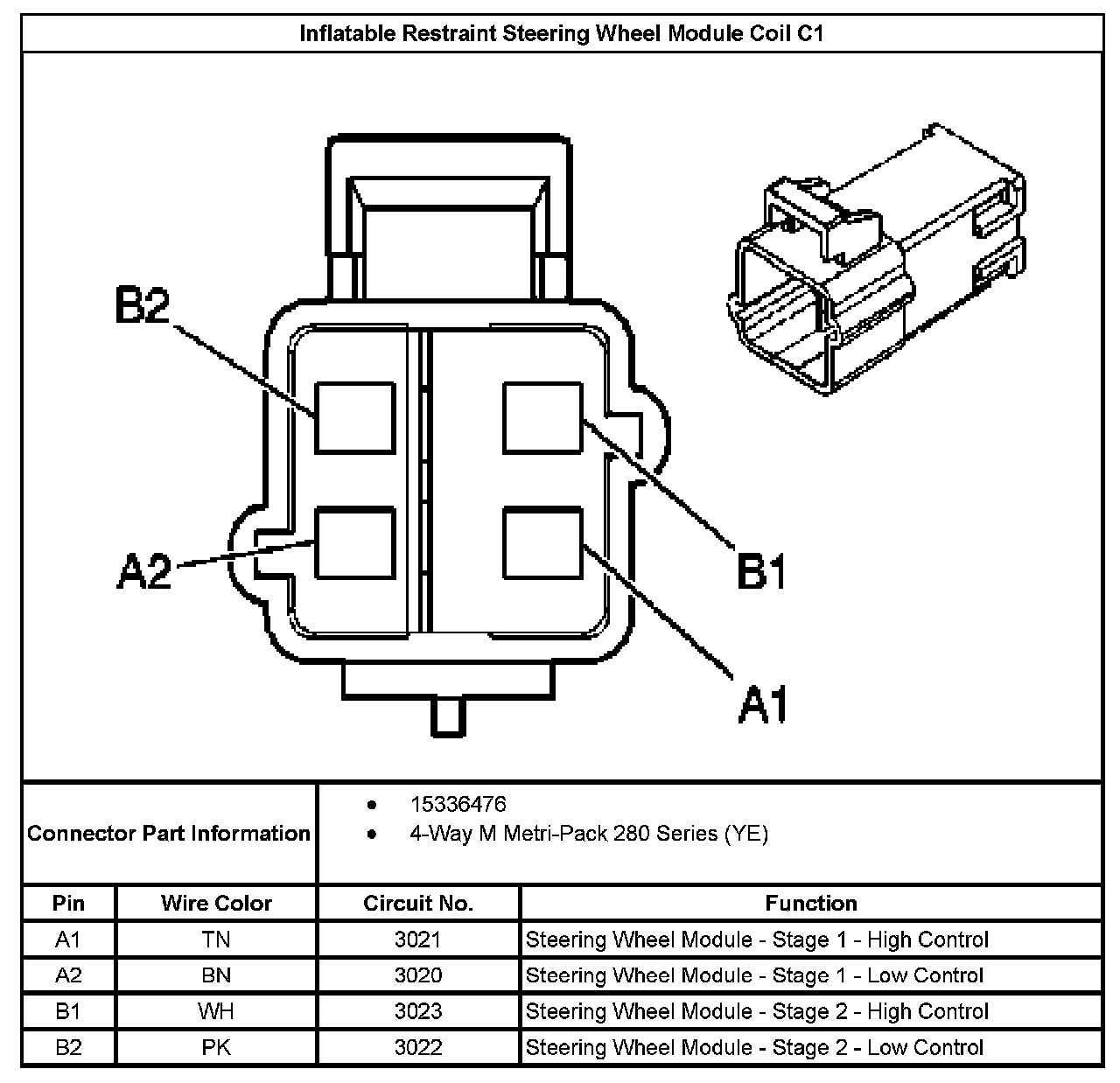

Inflatable Restraint Steering Wheel Module Coil C1

Inflatable Restraint Steering Wheel Module Coil C1:
