Side Air Bag

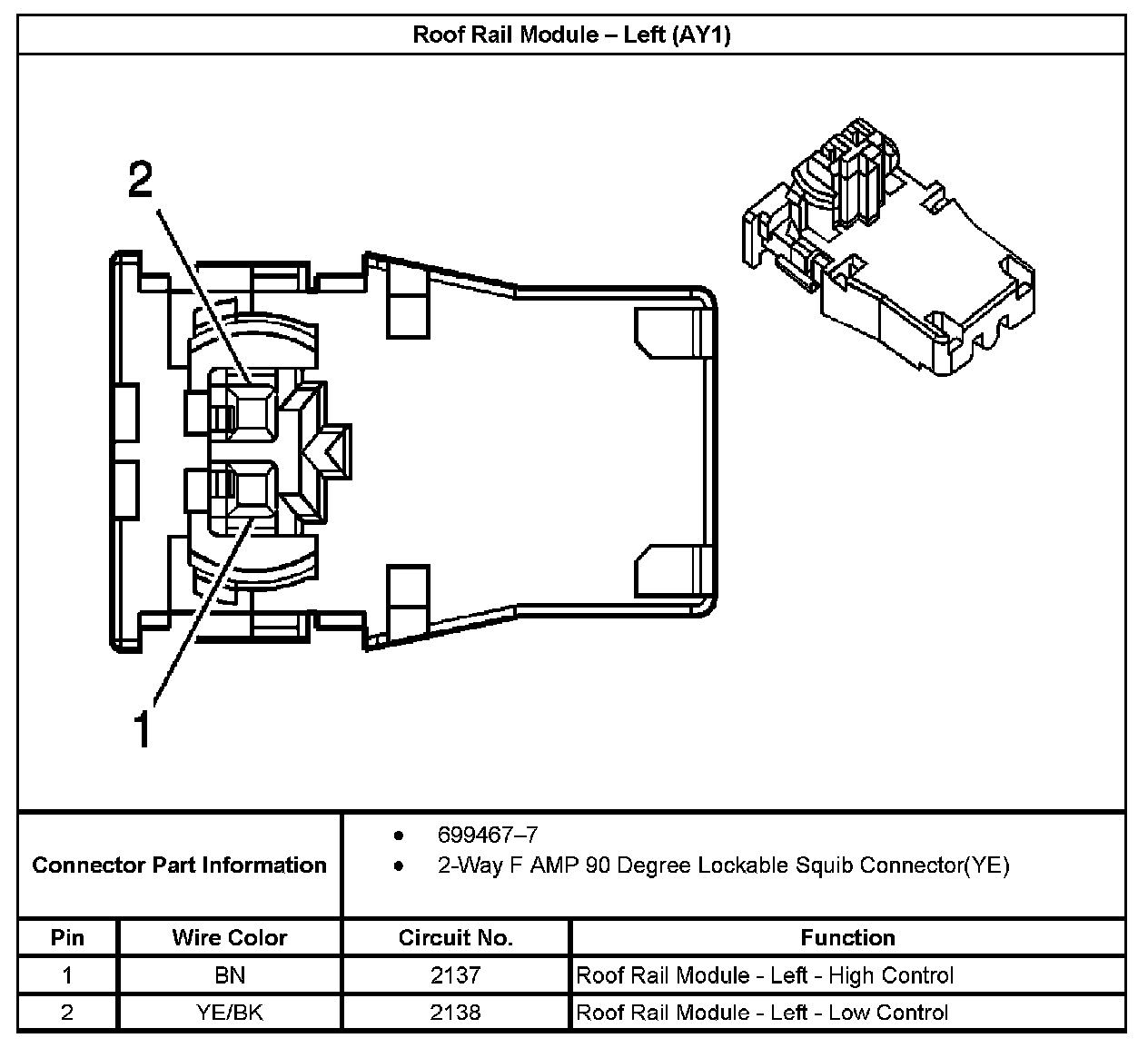

Roof Rail Module - Left (With RPO Code AY1):

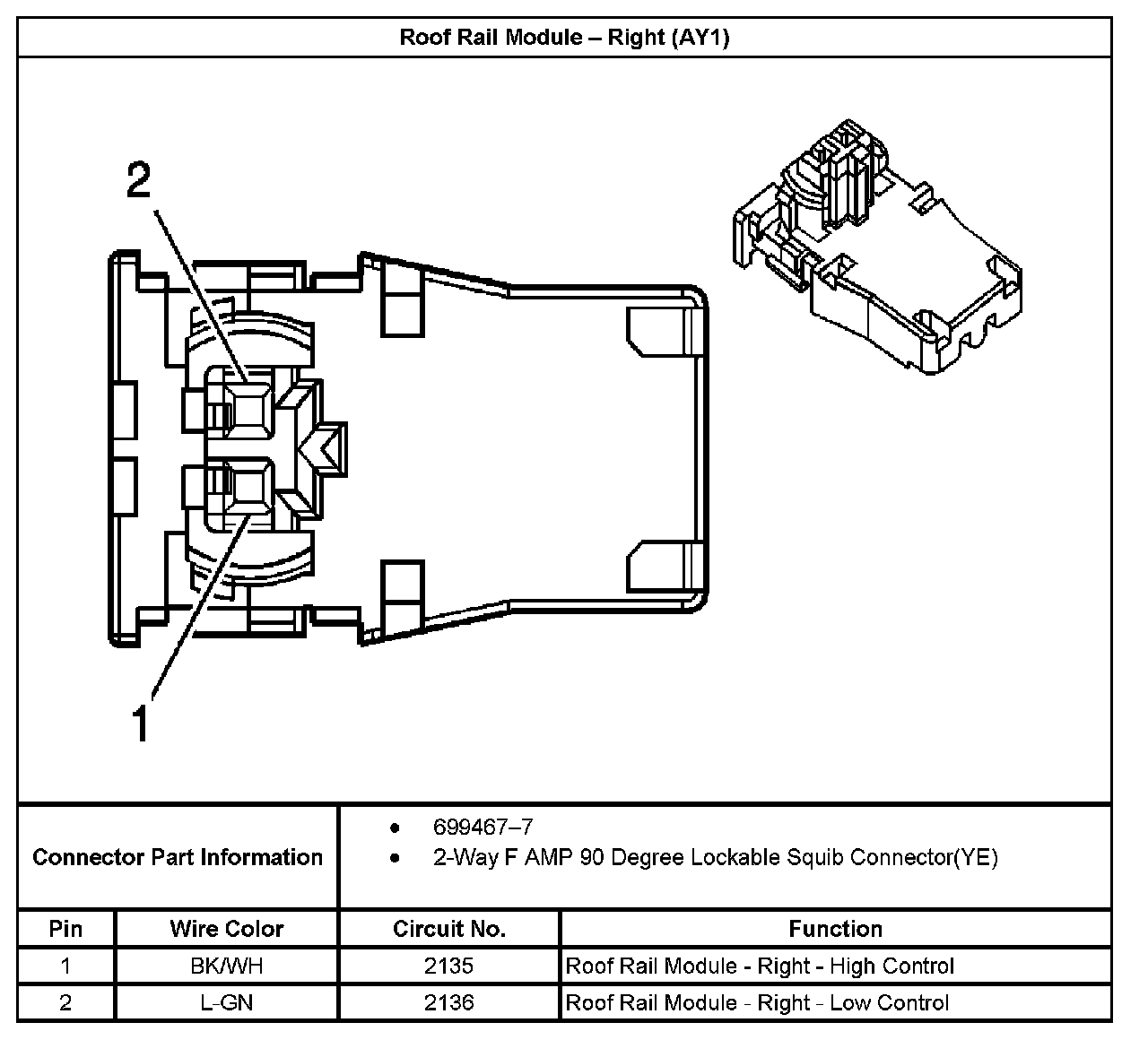

Roof Rail Module - Right (With RPO Code AY1):
