Home >> Pontiac >> 2005 >> Grand Prix V8-5.3L VIN C >> Repair and Diagnosis >> Diagrams >> Connector Views >> Speaker >> RR

RR

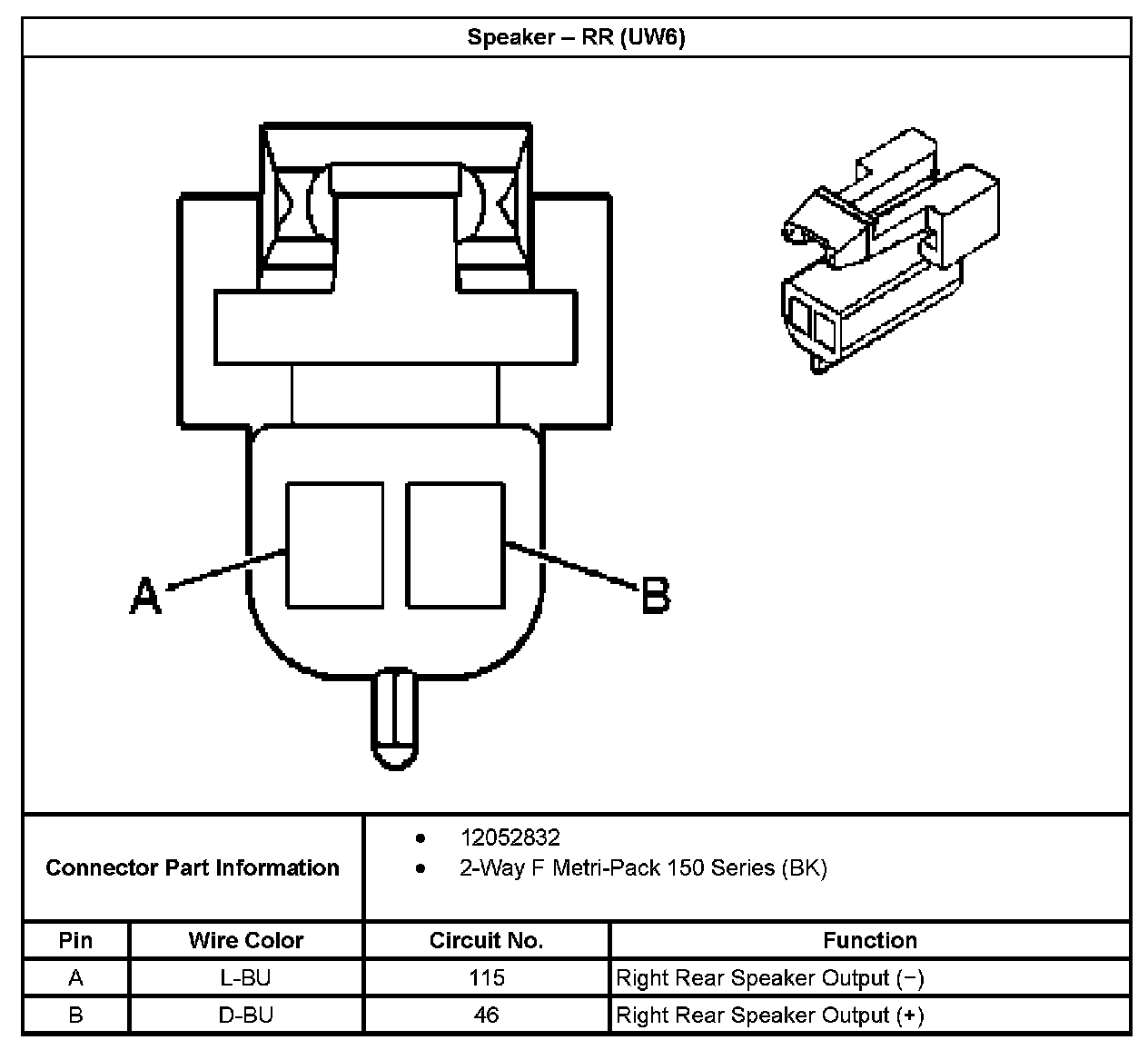

Speaker - RR (With RPO Code UW6):

Speaker - RR (With RPO Code U87):
