Shift Interlock, A/T

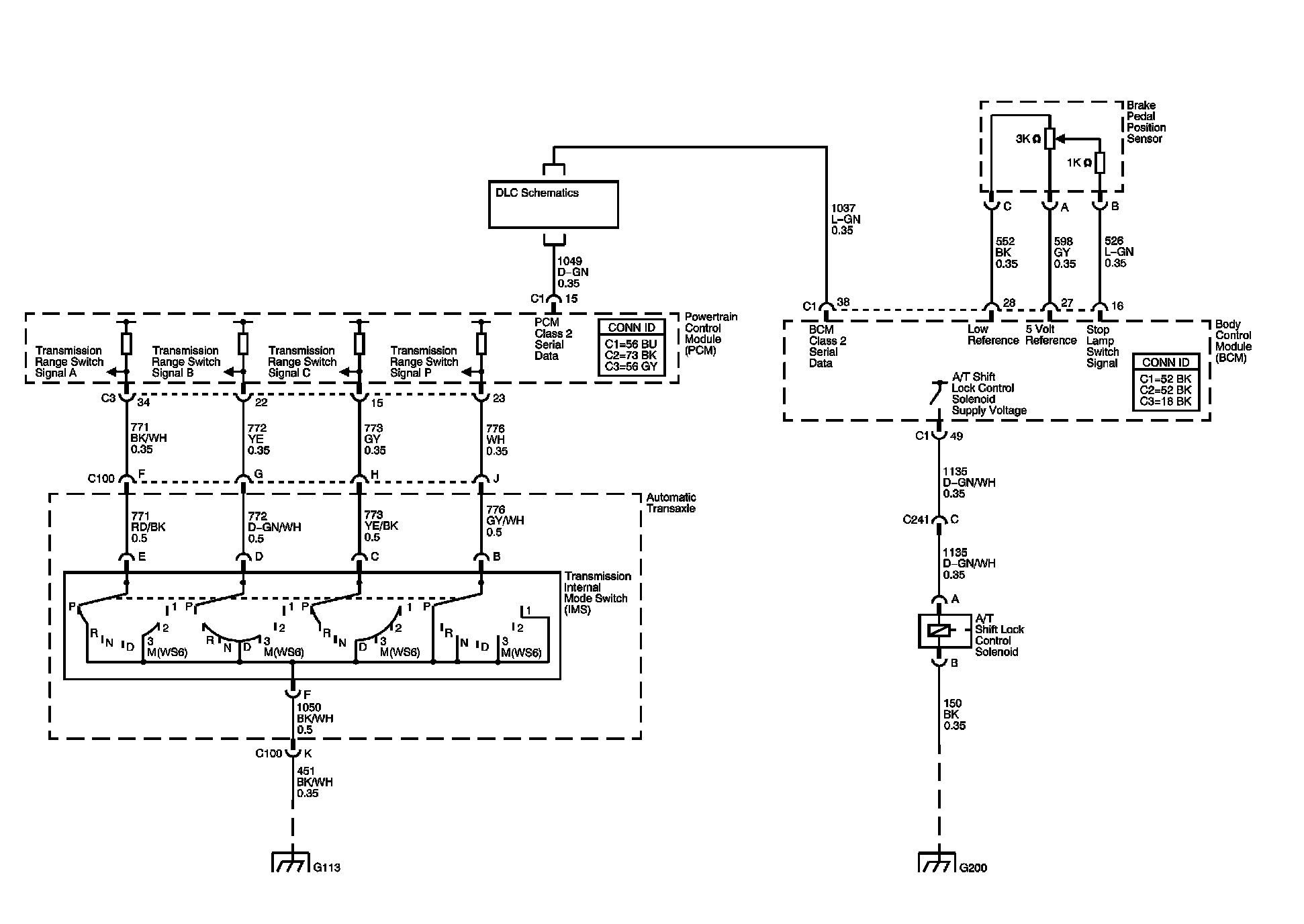

Automatic Transmission Shift Lock Control Diagrams L26, L32:

Automatic Transmission Shift Lock Control Diagrams LS4:

Locations: The locations for the connectors, Ground,Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
