Timing Components: Specifications

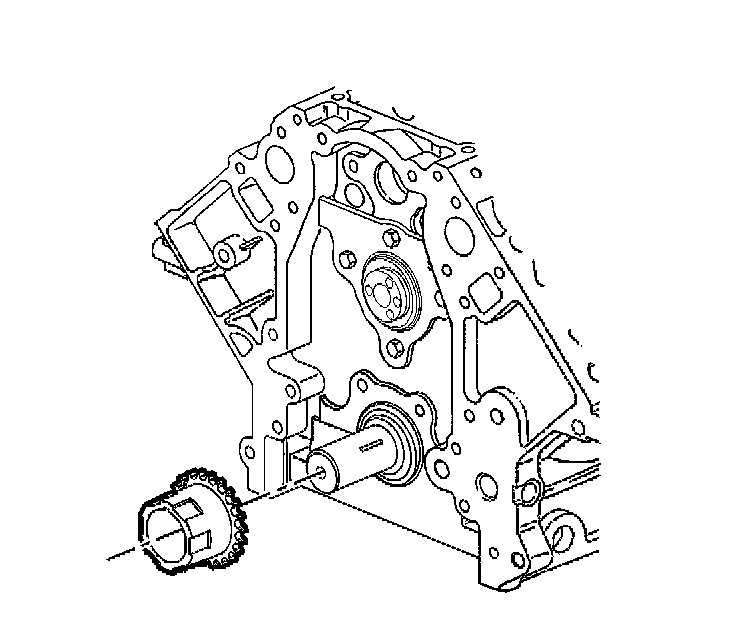

Install the crankshaft sprocket onto the front of the crankshaft. Align the crankshaft key with the crankshaft sprocket keyway.





^ Using the J 41665, install the crankshaft sprocket onto the crankshaft until fully seated against the crankshaft flange.
^ Rotate the crankshaft sprocket until the alignment mark is in the 12 o'clock position.

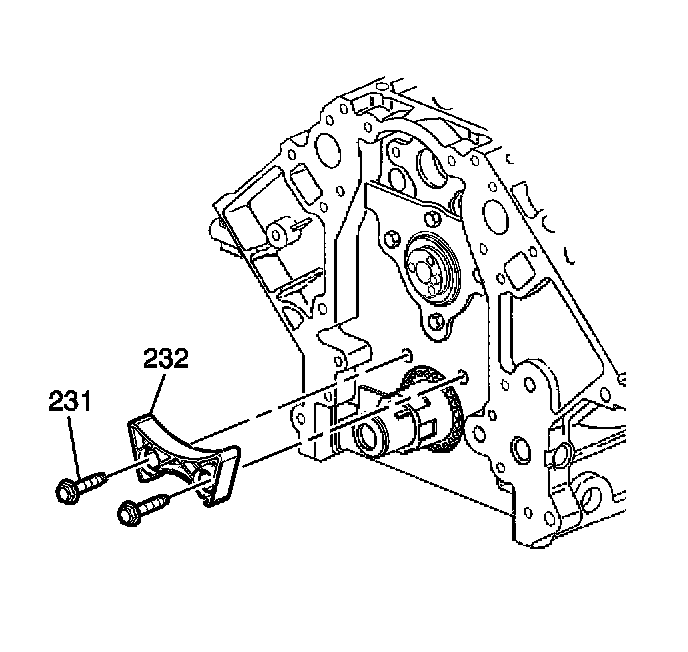

Install the timing change guide (232) and bolts (231).
Tighten the bolts to 25 Nm (18 ft. lbs.).

Front Cover Bolts 25 Nm (18 ft. lbs.)
Camshaft Sprocket Bolts 25 Nm (18 ft. lbs.)
