Instrument Cluster / Carrier

Instrument Panel Cluster - C1 Part 1:

Instrument Panel Cluster - C1 Part 2:

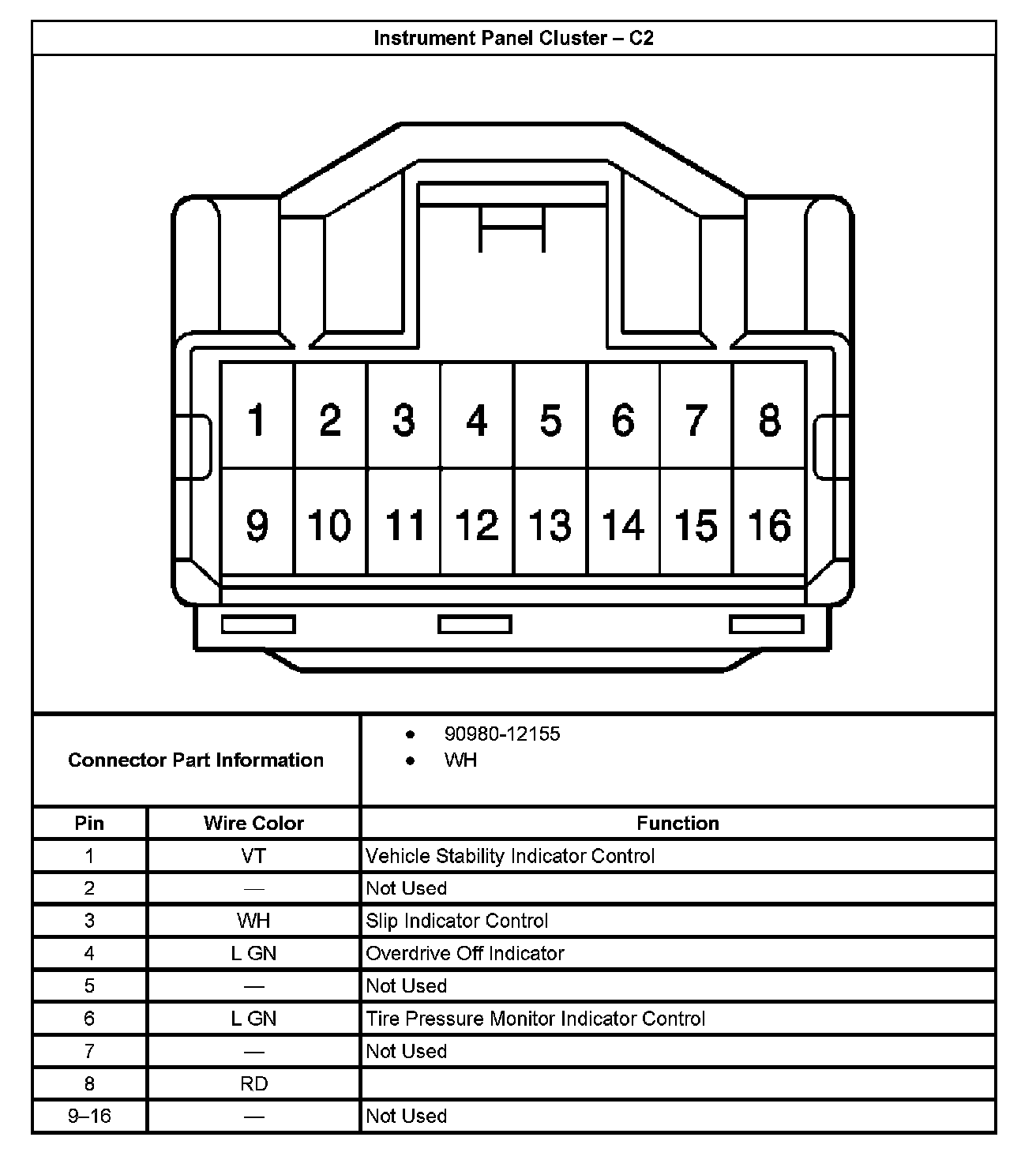

Instrument Panel Cluster - C2:
