Instrument Panel Connector Views
Instrument Panel Connector Views

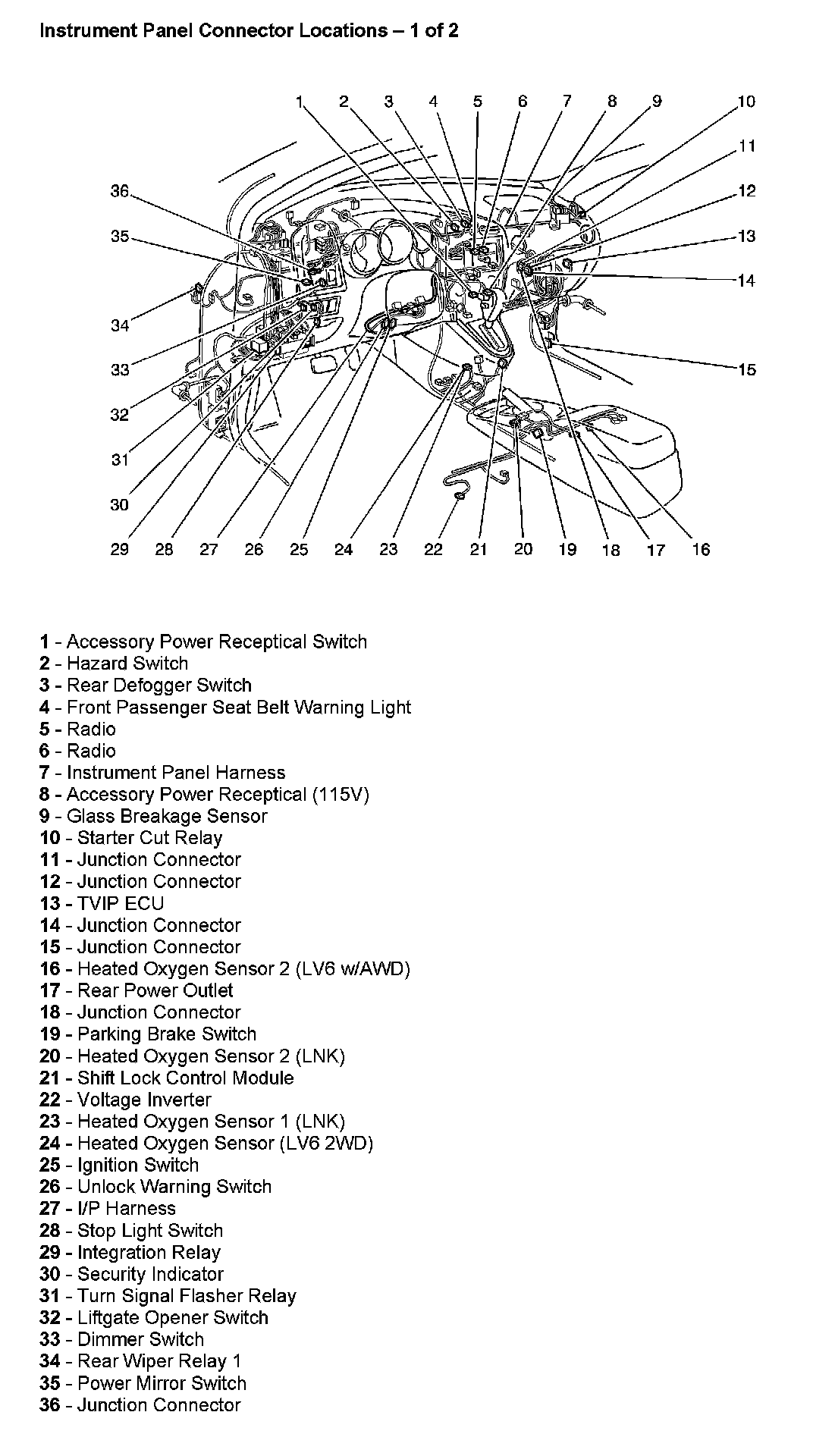

Instrument Panel Connector Locations Part 1:

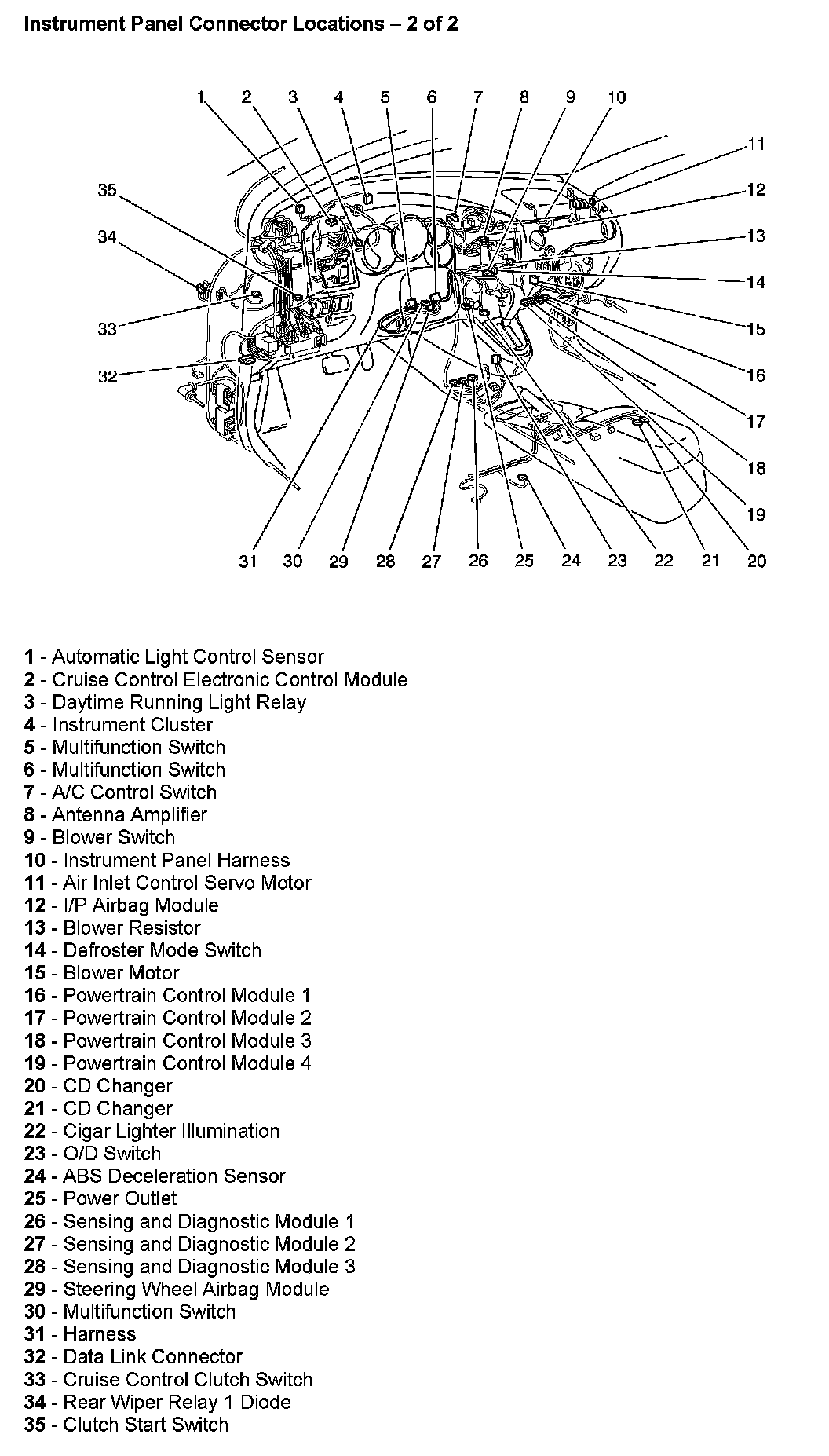

Instrument Panel Connector Locations Part 2:
