Headlamp Alignment Actuator

Headlamp Leveling Motor - Left (Except North America):

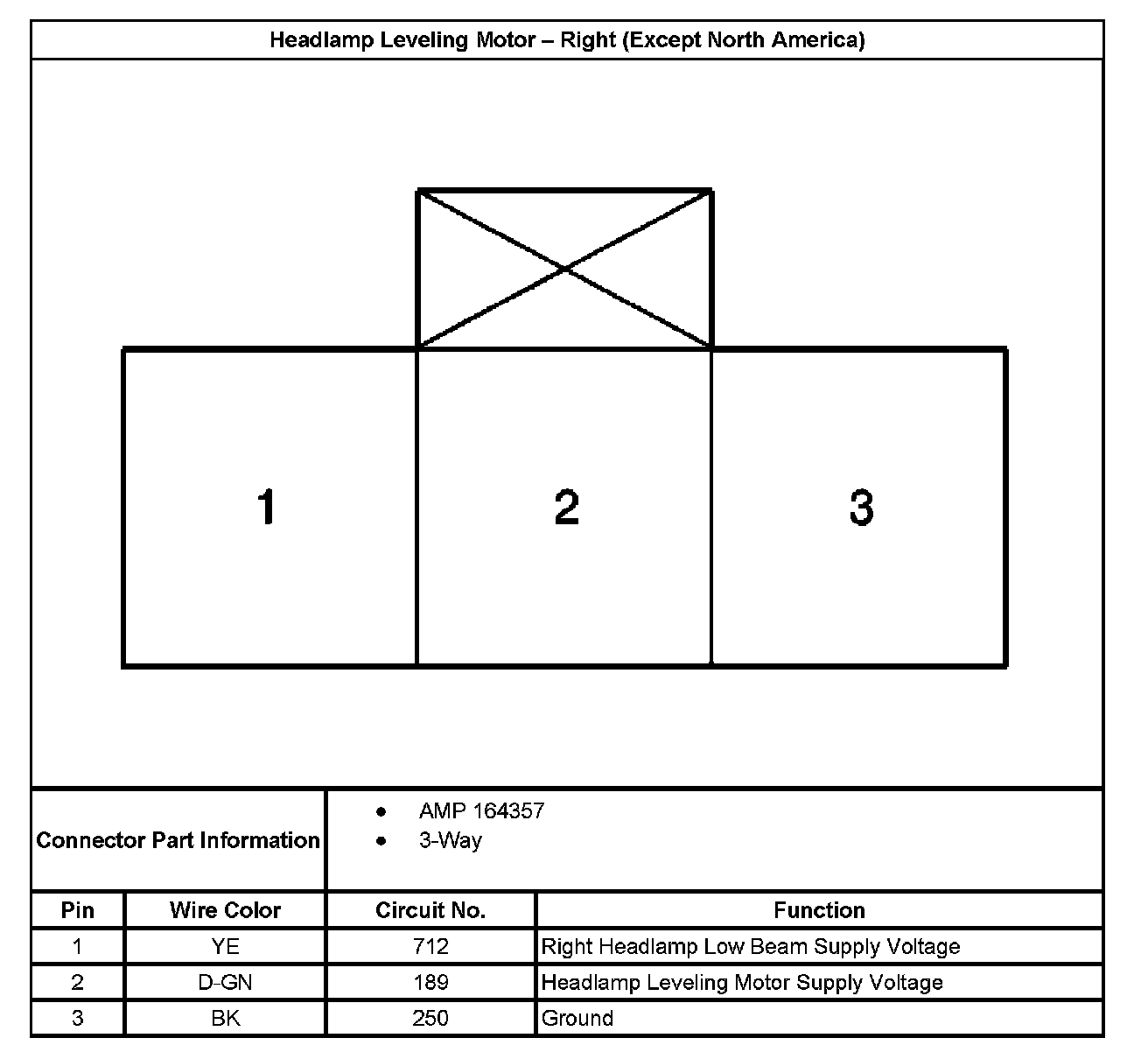

Headlamp Leveling Motor - Right (Except North America):
