Multiple Junction Connector
>>
C351 - C381
>>
C361
C361

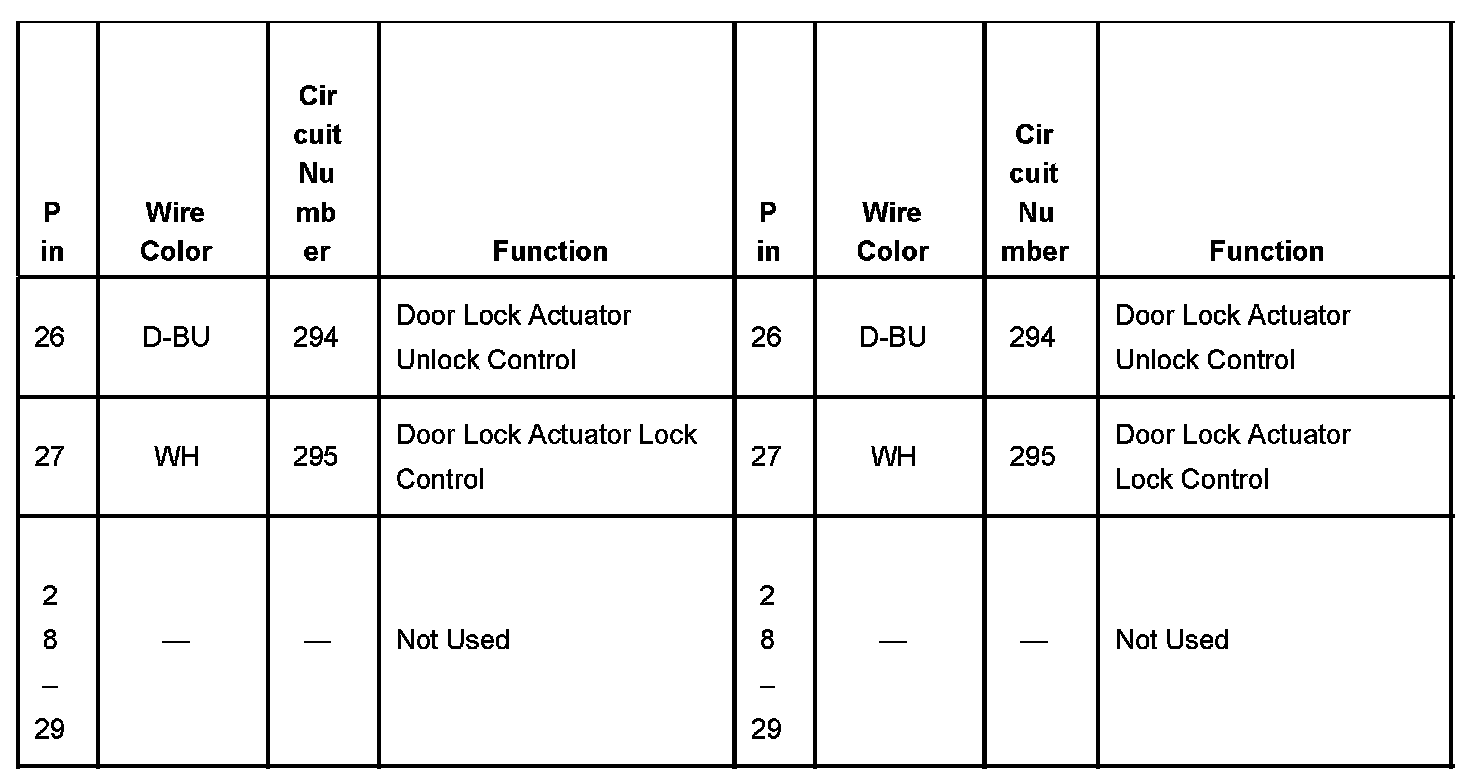

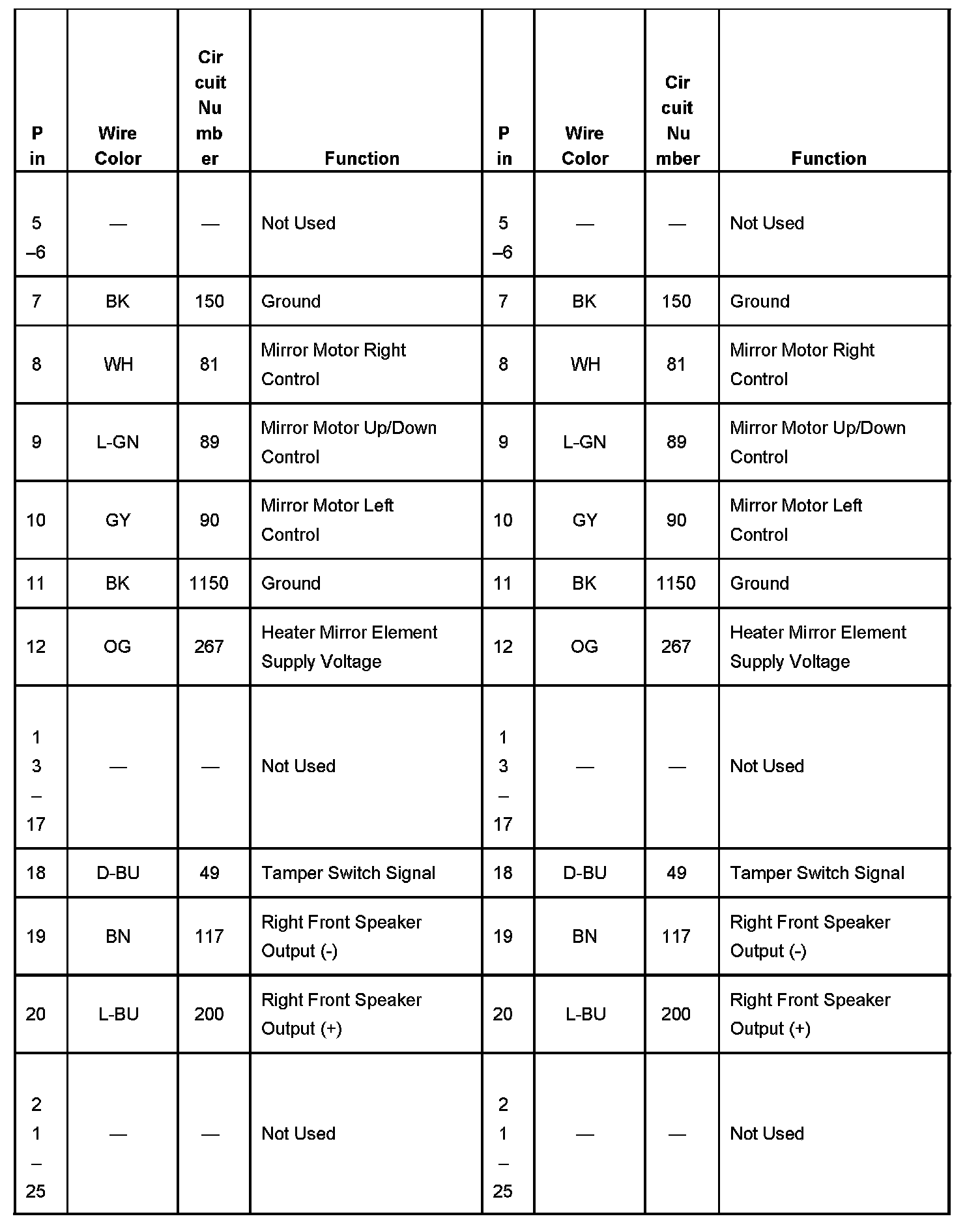

C361 Body Harness To Right Front Door Harness Part 1:
C361 Body Harness To Right Front Door Harness Part 2:
C361 Body Harness To Right Front Door Harness Part 3:
