Turn Signal Lamp
>>

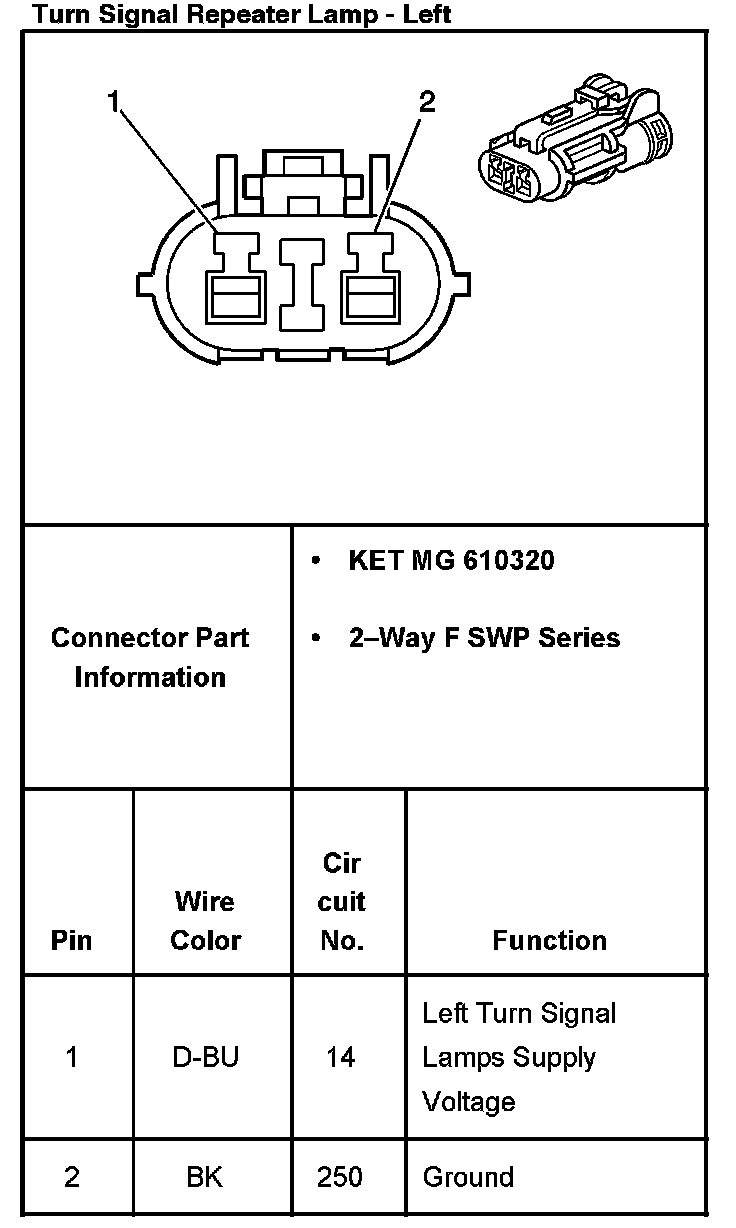

Turn Signal Repeater Lamp - Left
Turn Signal Repeater Lamp - Left
Turn Signal Repeater Lamp - Left:
