Operation CHARM
: Car repair manuals for everyone.
Home
>>
Pontiac
>>
2005
>>
Wave (CANADA) L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Turn Signal Lamp
>>
Turn Signal Repeater Lamp - Right
Turn Signal Repeater Lamp - Right

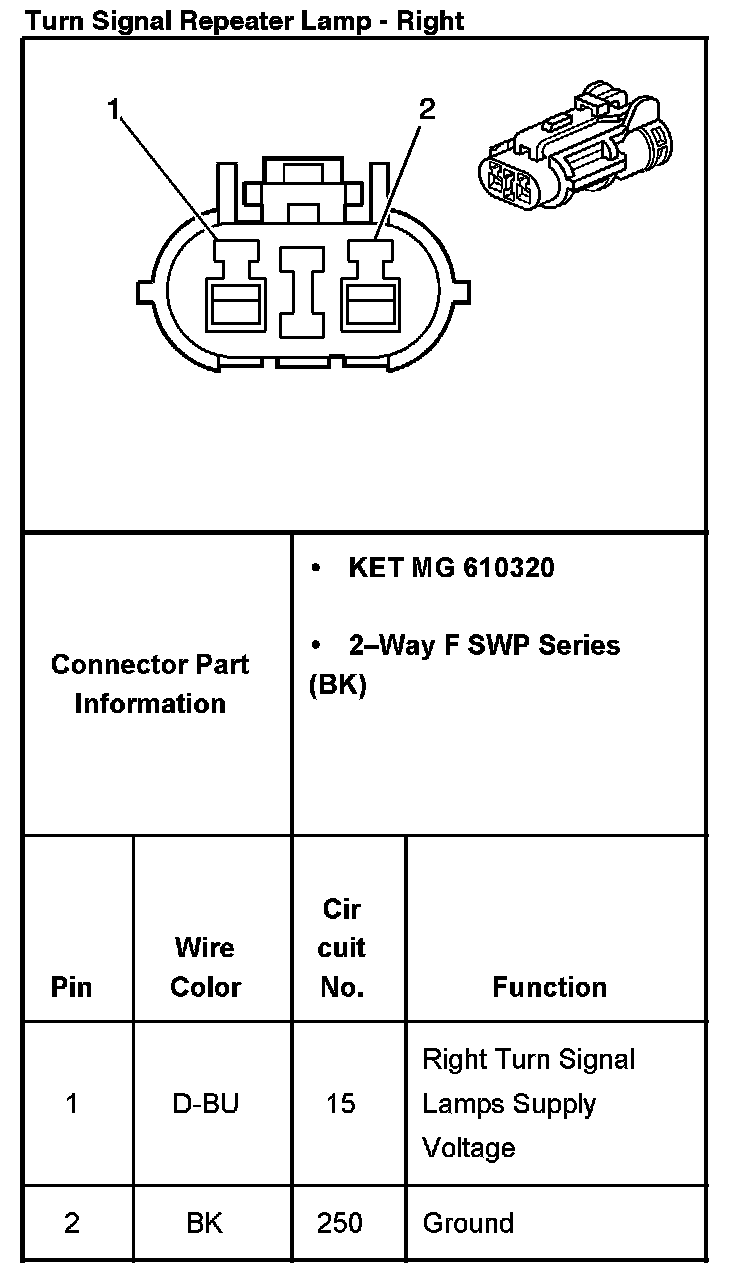

Turn Signal Repeater Lamp - Right:
