Dome Lamps Inoperative

DOME LAMPS INOPERATIVE

TEST DESCRIPTION

Steps 1 - 4:

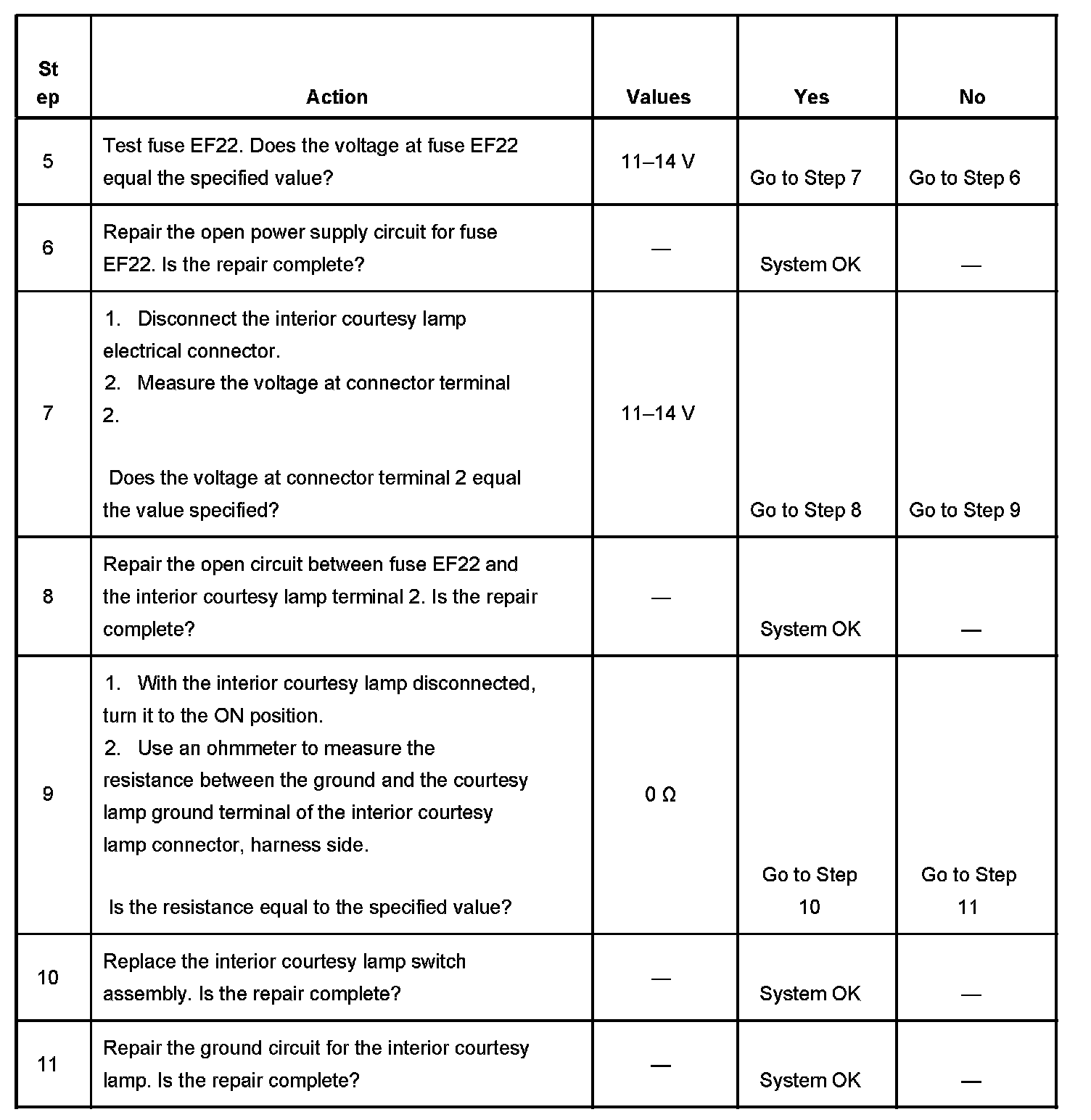

Steps 5 - 11:

The number below refers to the step on the diagnostic table.

1. Bulb test-Clip one end of a jumper wire to the negative battery terminal. Clip the other end of the jumper wire onto one end of the bulb. Take the free end of the bulb, the end without the jumper attached, and touch it to the positive battery terminal.
