Fog Lamps Inoperative - Front

FOG LAMPS INOPERATIVE - FRONT

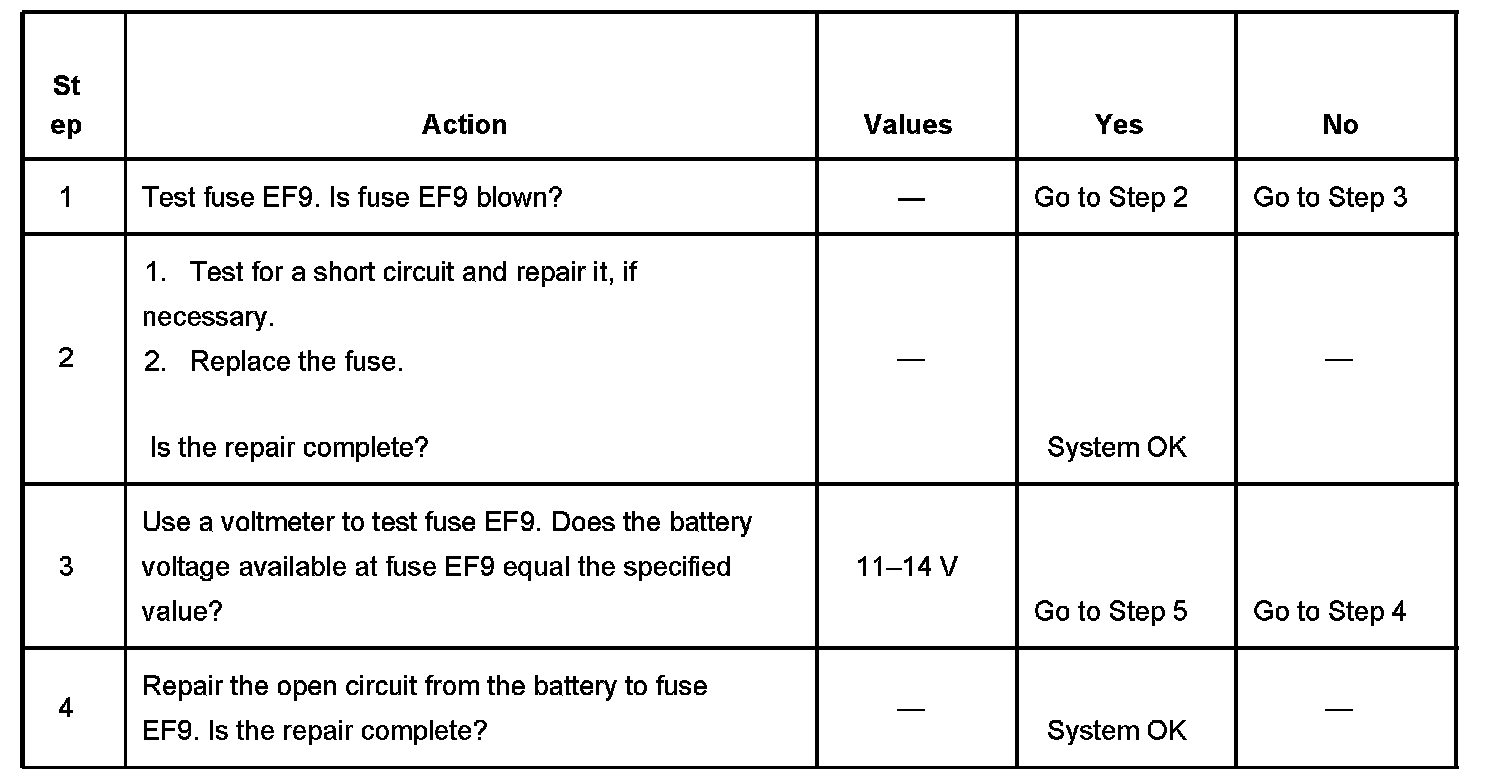

Steps 1 - 4:

Steps 5 - 10:

Steps 11 - 15:

DIAGNOSTIC AIDS
The front fog lamps will not operate unless the illumination lamps or daytime running lamps are on. If the illumination lamps or daytime running lamps are not operating, repair that problem before attempting to diagnose the fog lamps.
