Instrument Panel Illumination Lamps Inoperative

Steps 1 - 11:

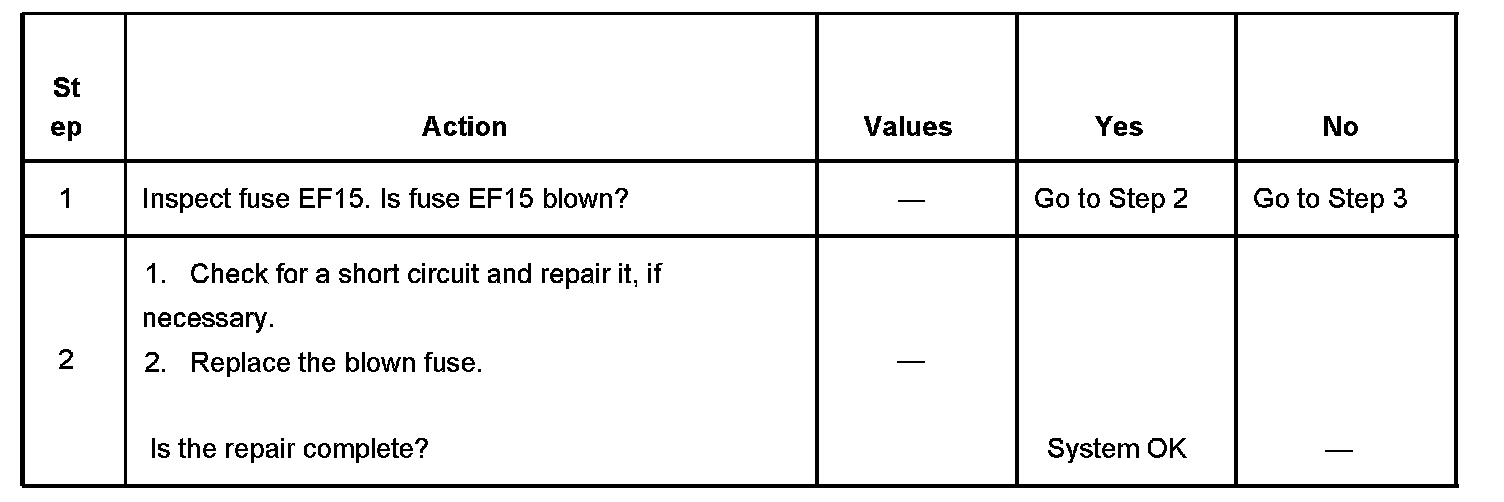

Steps 1 - 2:



Steps 3 - 8:



Steps 9 - 11:
