Cruise Control Inoperative/Malfunctioning

CRUISE CONTROL INOPERATIVE/MALFUNCTIONING

DIAGNOSTIC AIDS

CAUTION: Refer to SIR Caution in Service Precautions.

Disable the inflatable restraint steering wheel module when performing this diagnostic table. Refer to SIR Disabling and Enabling Zone 3 in Restraint Systems.

Perform the following to avoid misdiagnosis:
- Ensure that the following cruise control switches are not stuck in the engaged position:
- On/off switch
- Set/coast switch
- Resume/accel switch
- Inspect for proper operation of the stop lamps.
- Rotate the steering wheel to both steering stops and activate each cruise control switch separately. With a scan tool, observe the Cruise Control Switch parameter in the Body and Accessories, Cruise Control data list. This will help eliminate the possibility of a internally open or shorted inflatable restraint steering wheel module coil.
- Electromagnetic interference (EMI) on the speed sensor signal circuit may cause erratic cruise control operation.
- For an intermittent condition,

Conditions for Enabling Cruise Control
- The vehicle speed is greater than 40 km/h (25 mph).
- The vehicle is not in PARK, REVERSE, NEUTRAL, or 1st gear.
- The system voltage is within 9-16 volts.
- The park brake is not applied.

TEST DESCRIPTION

Step 1 - Step 9:

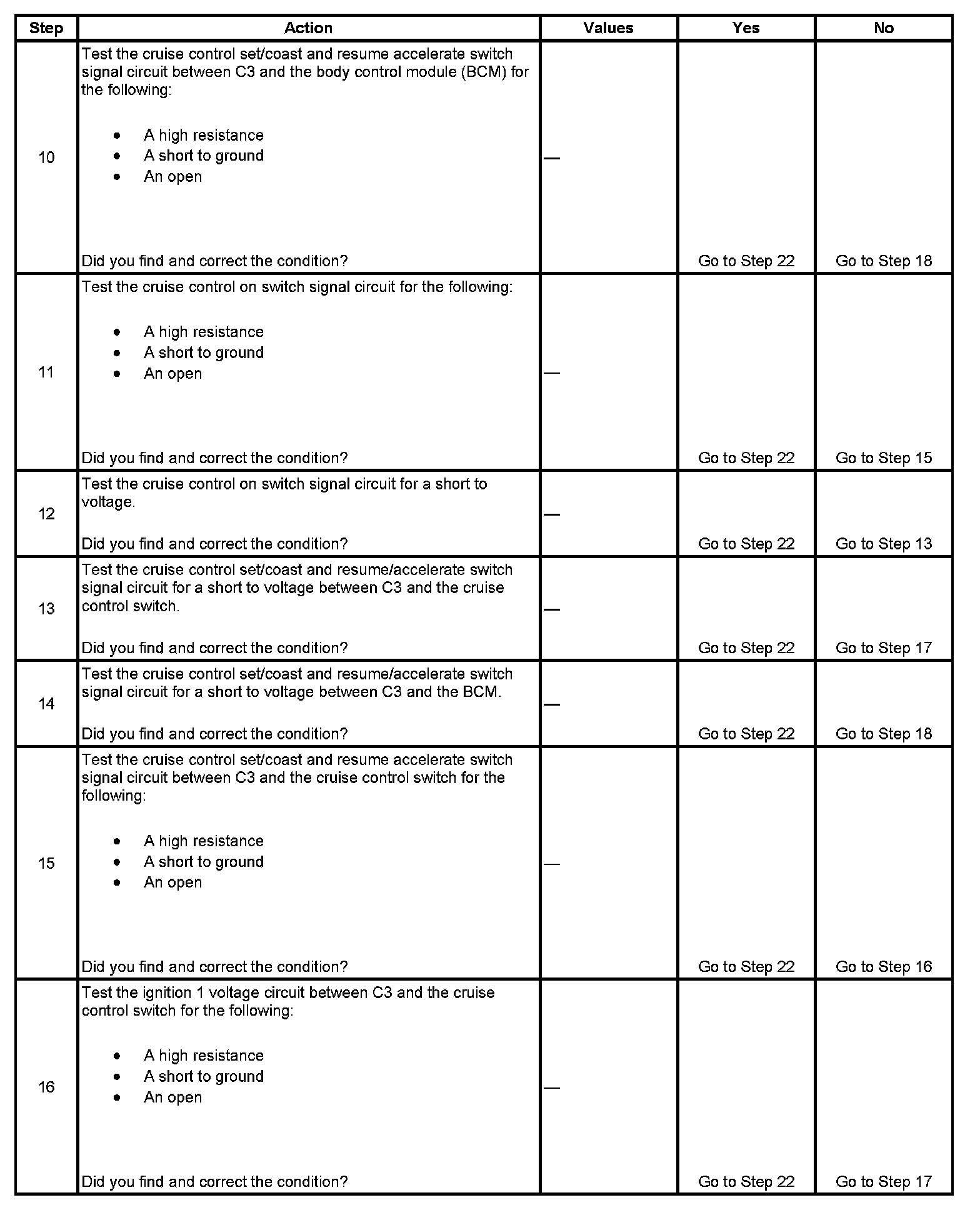

Step 10 - Step 16:

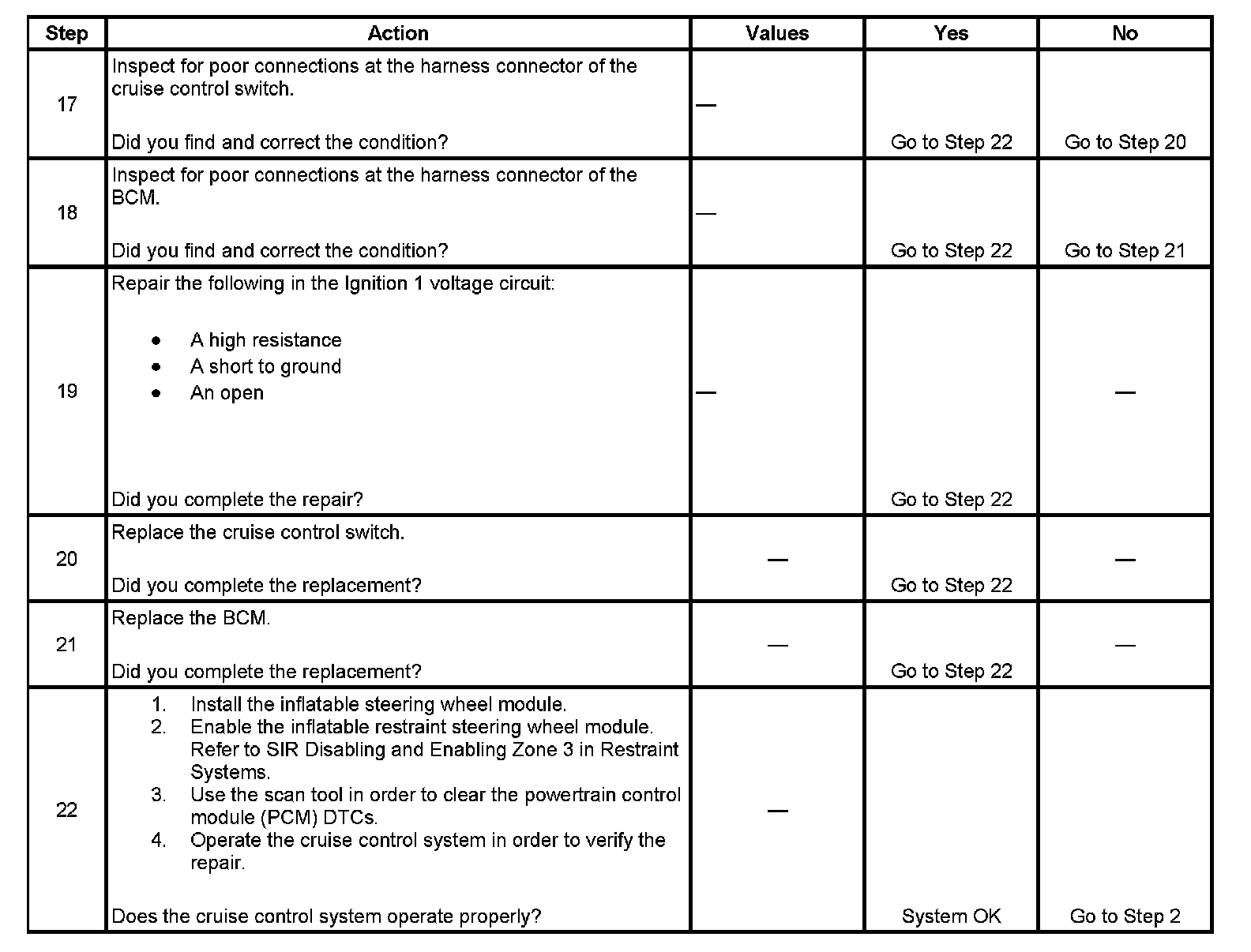

Step 17 - Step 22:

The number below refers to the step number on the diagnostic table.
8. This step tests the ignition 1 voltage circuit for an open, a short to ground, or a high resistance.
