Antilock Brakes / Traction Control Systems: Locations

ABS Component Views

Front Engine Compartment:

1 - Front Fascia
2 - Inflatable Restraint Front End Discriminating Sensor-Right
3 - Electronic Brake Control Module (EBCM)
4 - Forward Lamp Harness
5 - Inflatable Restraint Front End Discriminating Sensor-Left

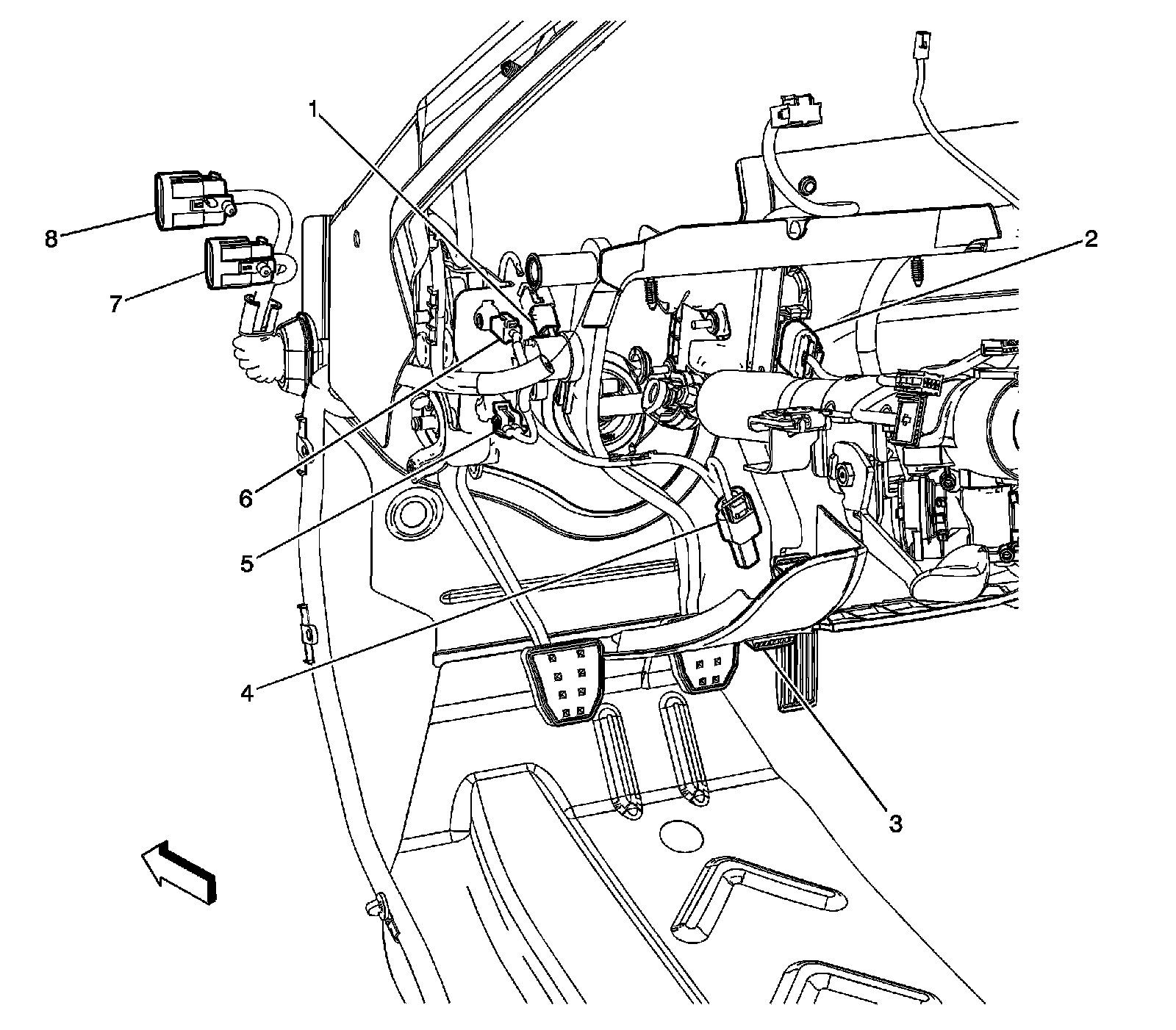

Left Side of I/P:

1 - Brake Pedal Position Sensor
2 - Accelerator Pedal Position (APP) Sensor
3 - Data Link Connector (DLC)
4 - Data Link Connector (DLC) Resistor
5 - Clutch Pedal Position (CPP) Switch
6 - Clutch Start Switch
7 - C201 Driver Door Harness to I/P Body Harness
8 - C202 Driver Door Harness to I/P Body Harness

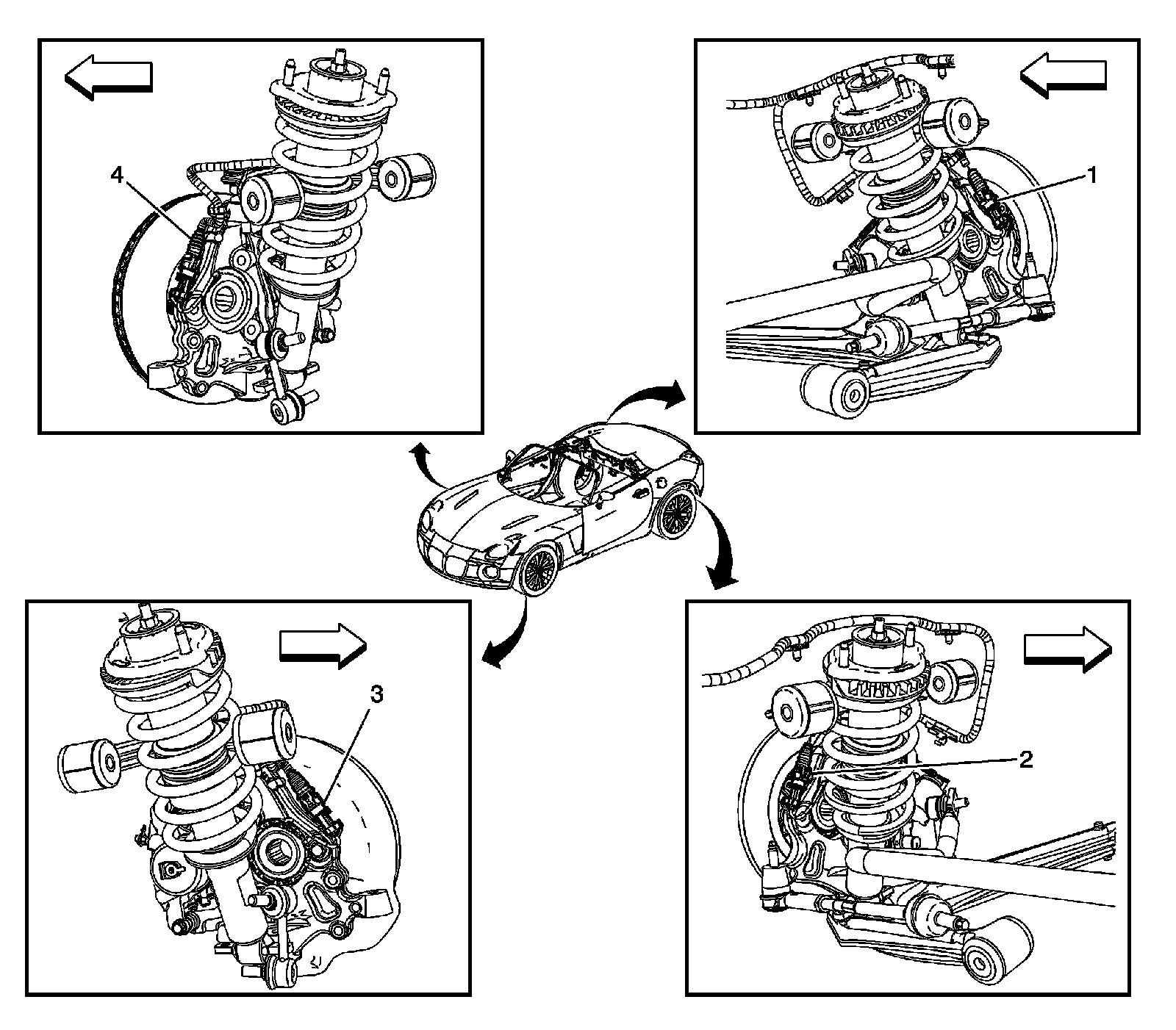

Wheel Speed Sensors:

1 - Wheel Speed Sensor (WSS)-RR
2 - Wheel Speed Sensor (WSS)-LR
3 - Wheel Speed Sensor (WSS)-LF
4 - Wheel Speed Sensor (WSS)-RF
