DTC 011

DTC 011

CIRCUIT DESCRIPTION
The cruise control module applies voltage and ground to both the open and close sides of the cruise control servo motor as driving conditions demand changing throttle settings.

DIAGNOSTIC AIDS
Check for the following:
- Cruise control cable for binding or broken cable
- Short to ground in the RED/GRN or RED/BLU wires between the cruise control module and the servo

An intermittent malfunction may be caused by a fault in the servo motor electrical circuit. Inspect the wiring harness and components for any of the following conditions:
- Backed out terminals
- Improper mating of terminals
- Broken electrical connectors locks
- Improperly formed or damaged terminals
- Faulty terminal to wire connections
- Physical damage to the wiring harness
- A broken wire inside the insulation
- Corrosion of electrical connections, splices, or terminals

Repair any electrical circuit faults that were found.

TEST DESCRIPTION

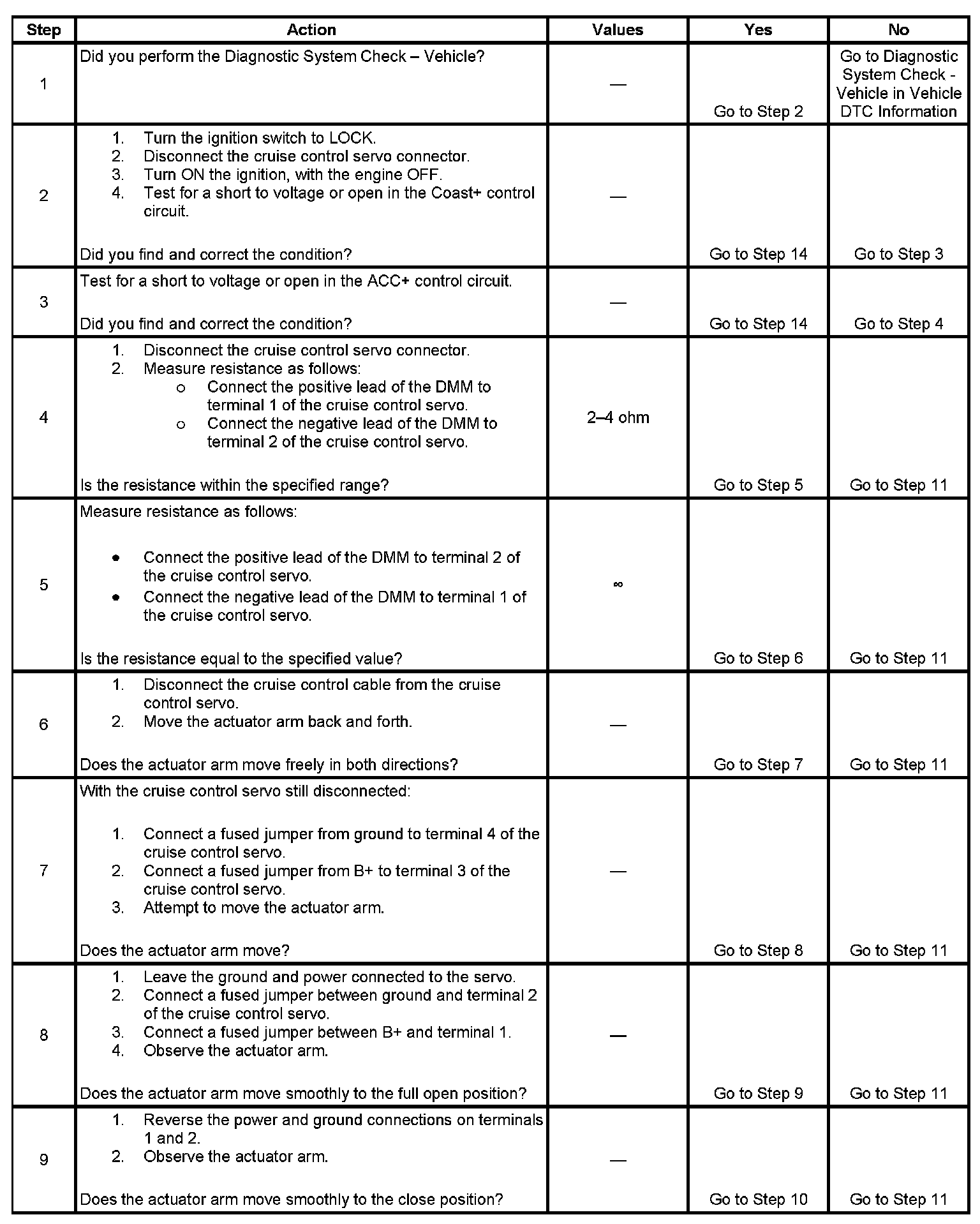

Steps 1 - 9:

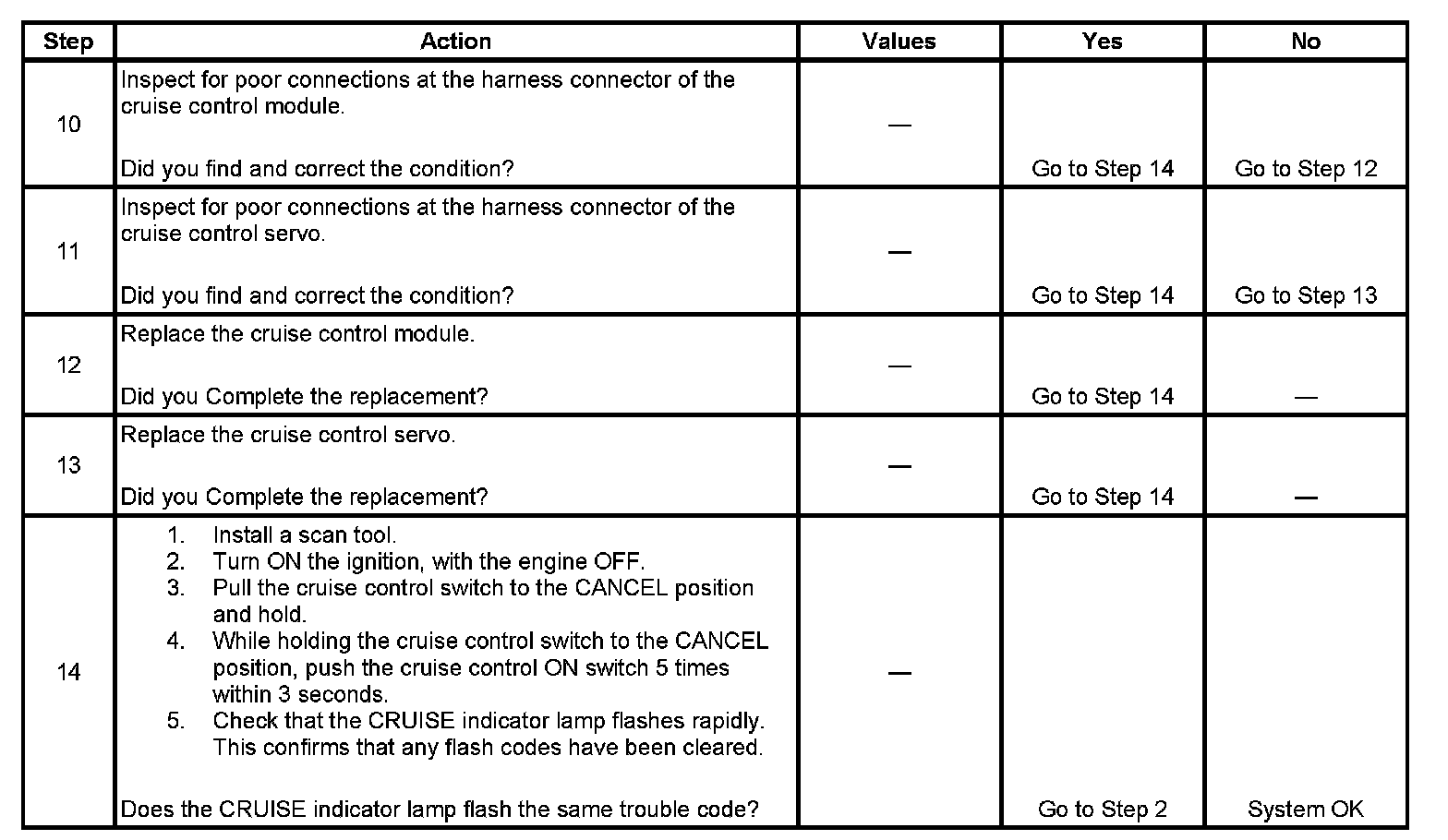

Steps 10 - 14:

The numbers below refer to the step numbers on the diagnostic table.
4. This step tests to see if the servo motor has the proper resistance.
5. This step tests to see if the servo motor has the proper resistance.
8. This step tests for proper movement of the actuator arm with the magnetic clutch energized.
9. This step tests for proper movement of the actuator arm with the magnetic clutch energized.
