Blower Motor Resistor: Service and Repair

BLOWER MOTOR RESISTOR REPLACEMENT

REMOVAL PROCEDURE




1. Remove the instrument panel compartment.
2. Disconnect the blower motor resistor electrical connector.

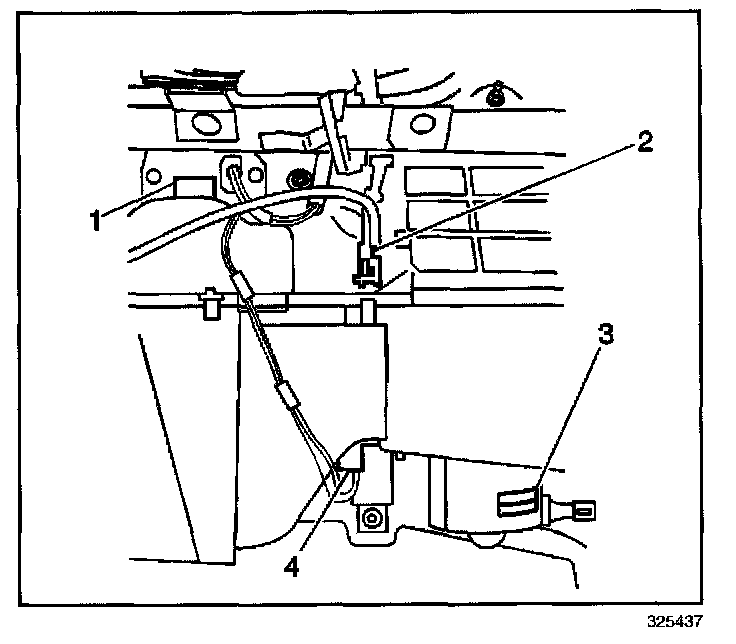

3. Remove the 2 screws and the blower motor resistor (4) from the blower case.

INSTALLATION PROCEDURE




1. Install the blower motor resistor (4) to the blower case. Secure with the 2 screws.
2. Connect the blower motor resistor electrical connector.
3. Install the IP compartment.
