Flywheel: Specifications








First Step 49 Nm. (36 ft. lbs.)

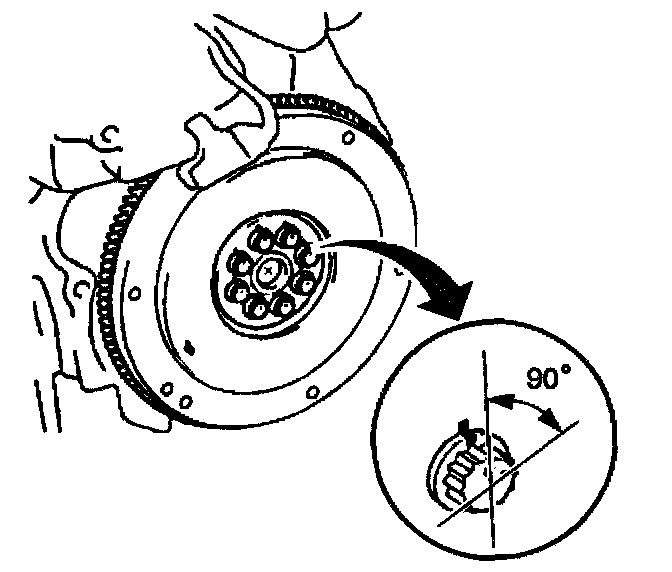

Second Step tighten the flywheel bolts an additional 90°.
