Low and High Beams Inoperative



LOW AND HIGH BEAMS INOPERATIVE

DIAGNOSTIC AIDS
If there are several other symptoms, including an inoperative radiator fan, the windshield washer pump, or the turn signal lamps, inspect ground G102 and G104.

TEST

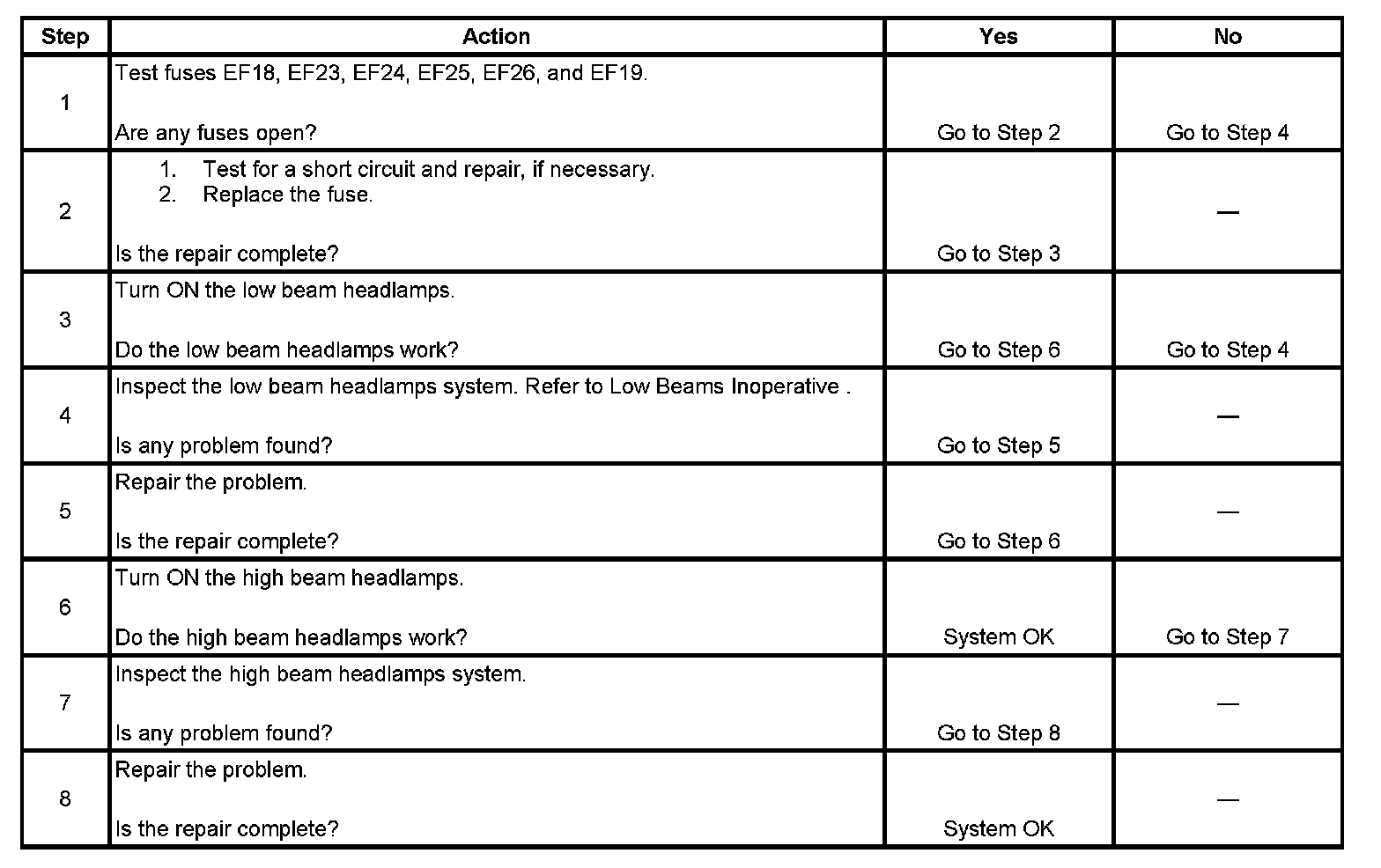

Step 1 - Step 8:
