Power Seat Motor
Power Seat Motor

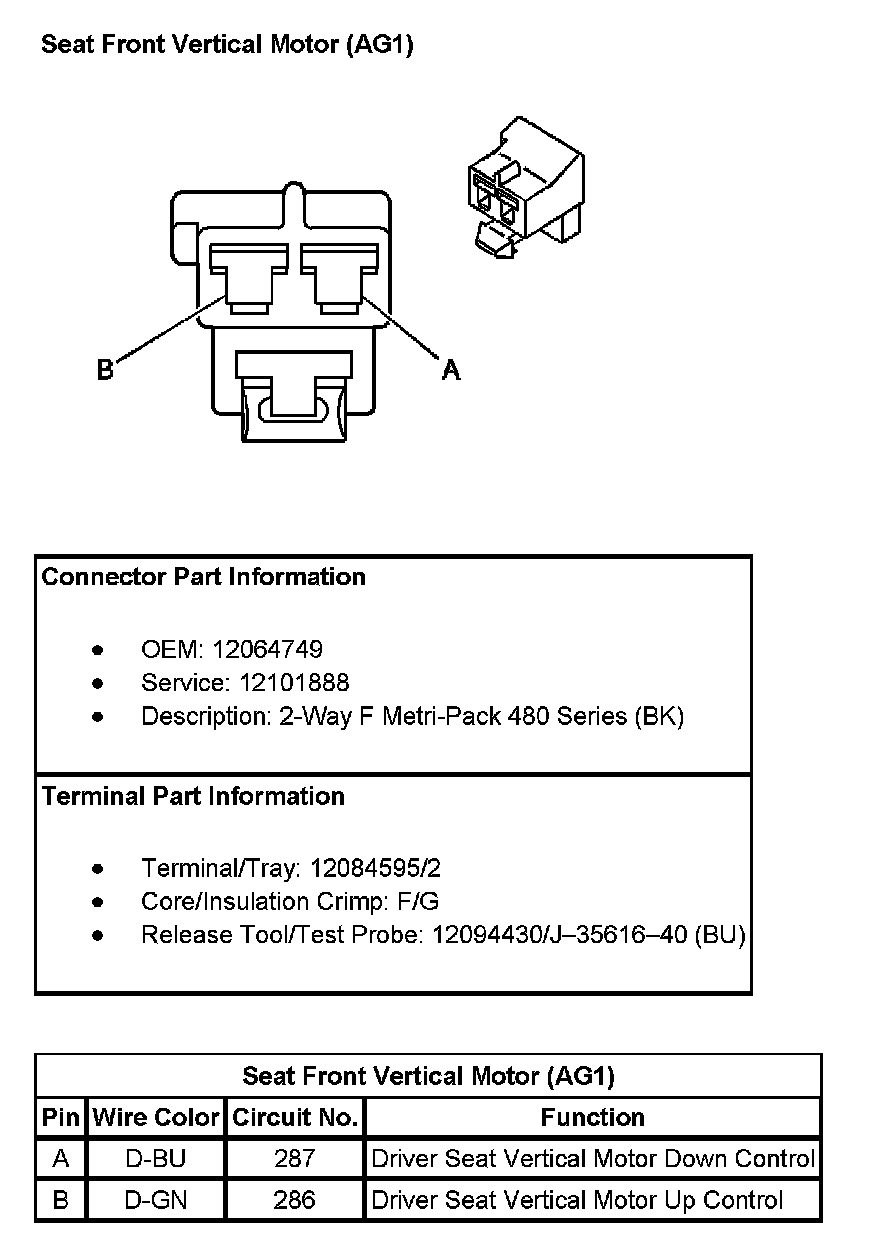

Seat Front Vertical Motor (with RPO Code AG1):

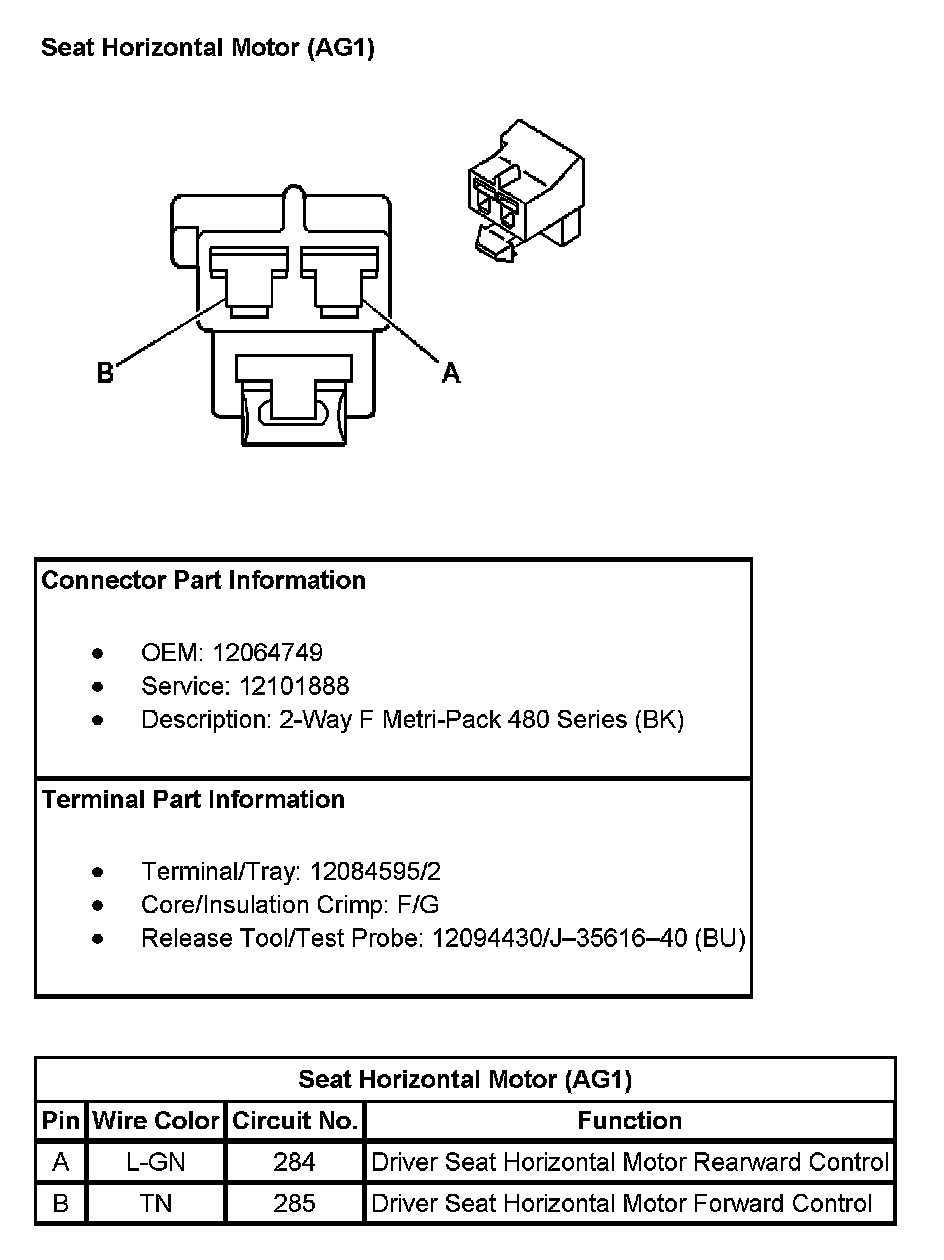

Seat Horizontal Motor (with RPO Code AG1):

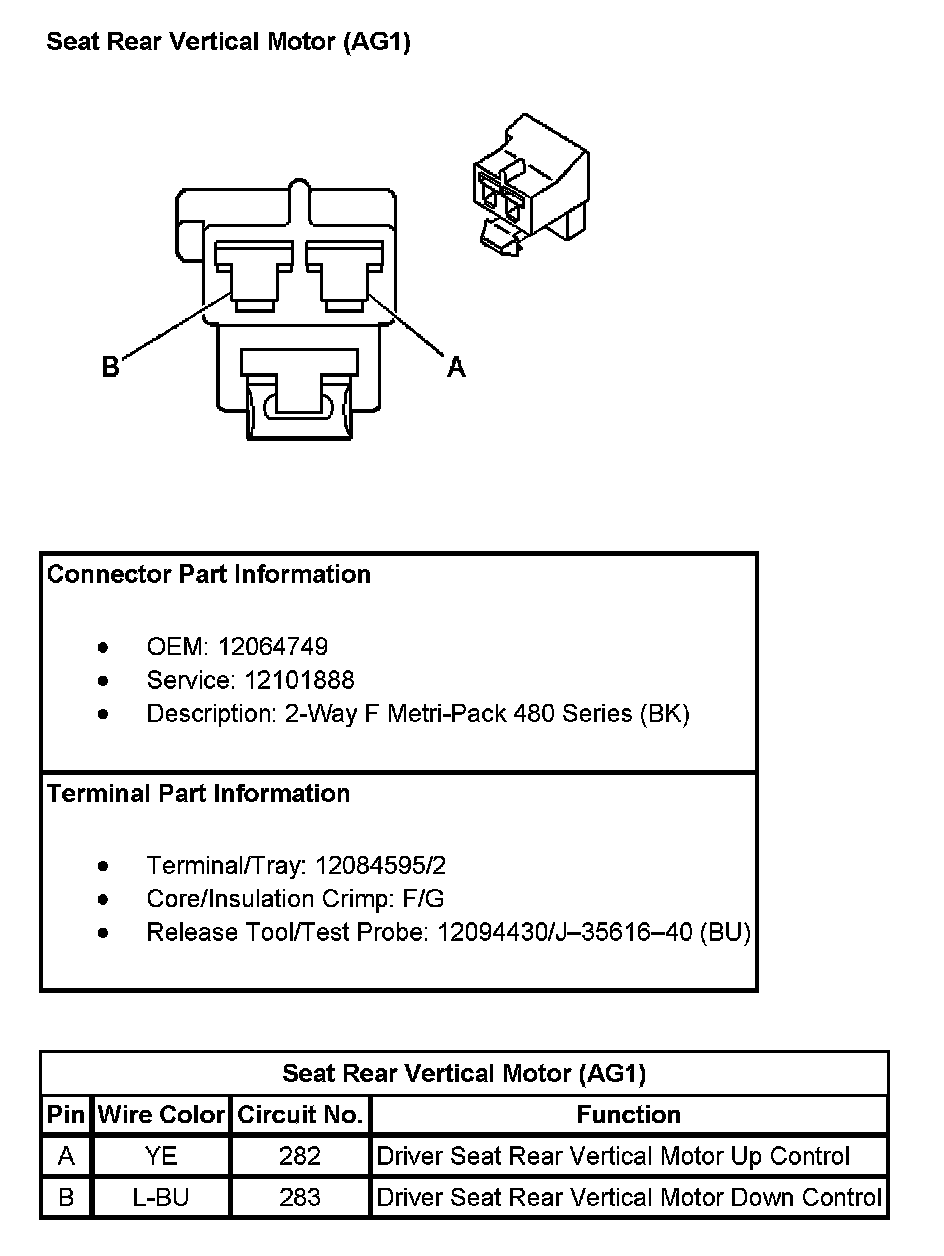

Seat Rear Vertical Motor (with RPO Code AG1):

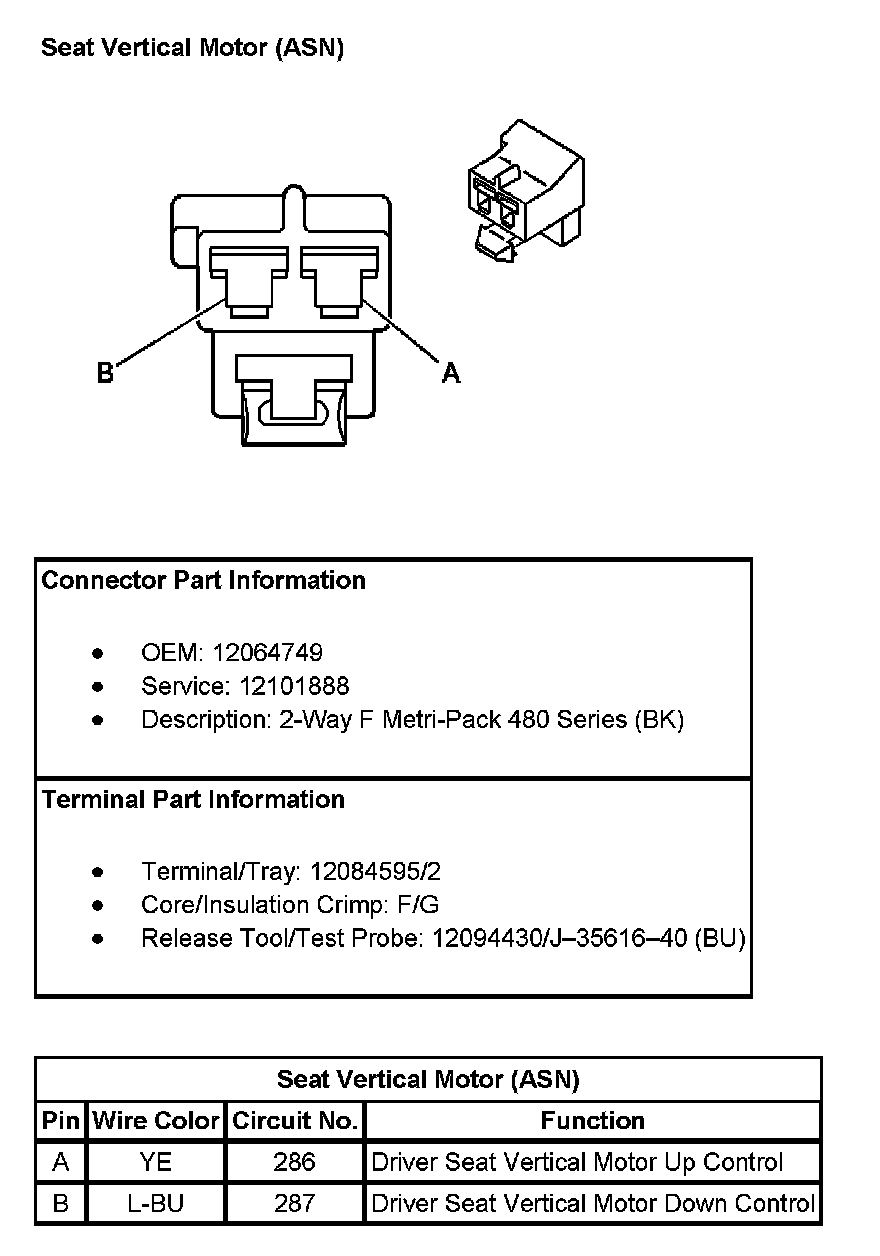

Seat Vertical Motor (With RPO Code ASN):
