Starting and Charging: Locations

Engine Electrical Component Views

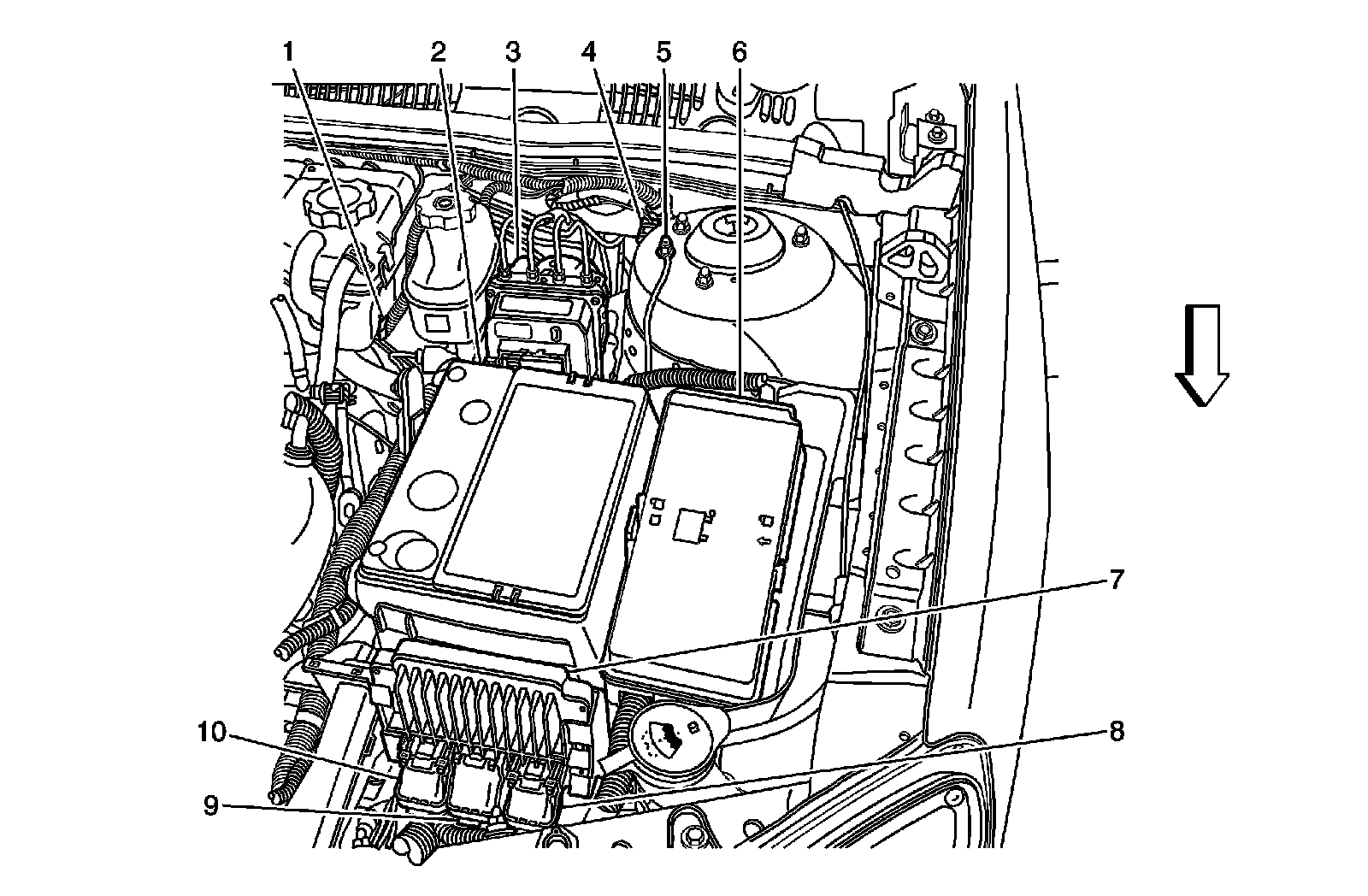

Left Rear of Engine Compartment




1 - Coolant Level Switch
2 - Battery
3 - Electronic Brake Control Module (EBCM)
4 - C101
5 - G103
6 - Fuse Block - Underhood
7 - Powertrain Control Module (PCM)
8 - Powertrain Control Module (PCM), C3
9 - Powertrain Control Module (PCM), C2
10 - Powertrain Control Module (PCM), C1

Lower Left Front of Engine - LX9




1 - Engine Oil Pressure (EOP) Switch
2 - Starter
3 - Starter Solenoid
4 - Knock Sensor (KS) 2

Top Rear of Engine - LX9




1 - Manifold Absolute Pressure (MAP) Sensor
2 - Generator
3 - Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1
4 - Ignition Control Module (ICM)
5 - Exhaust Gas Recirculation (EGR) Valve
6 - Evaporative Emission (EVAP) Canister Purge Solenoid
7 - Throttle Actuator Control (TAC) Module

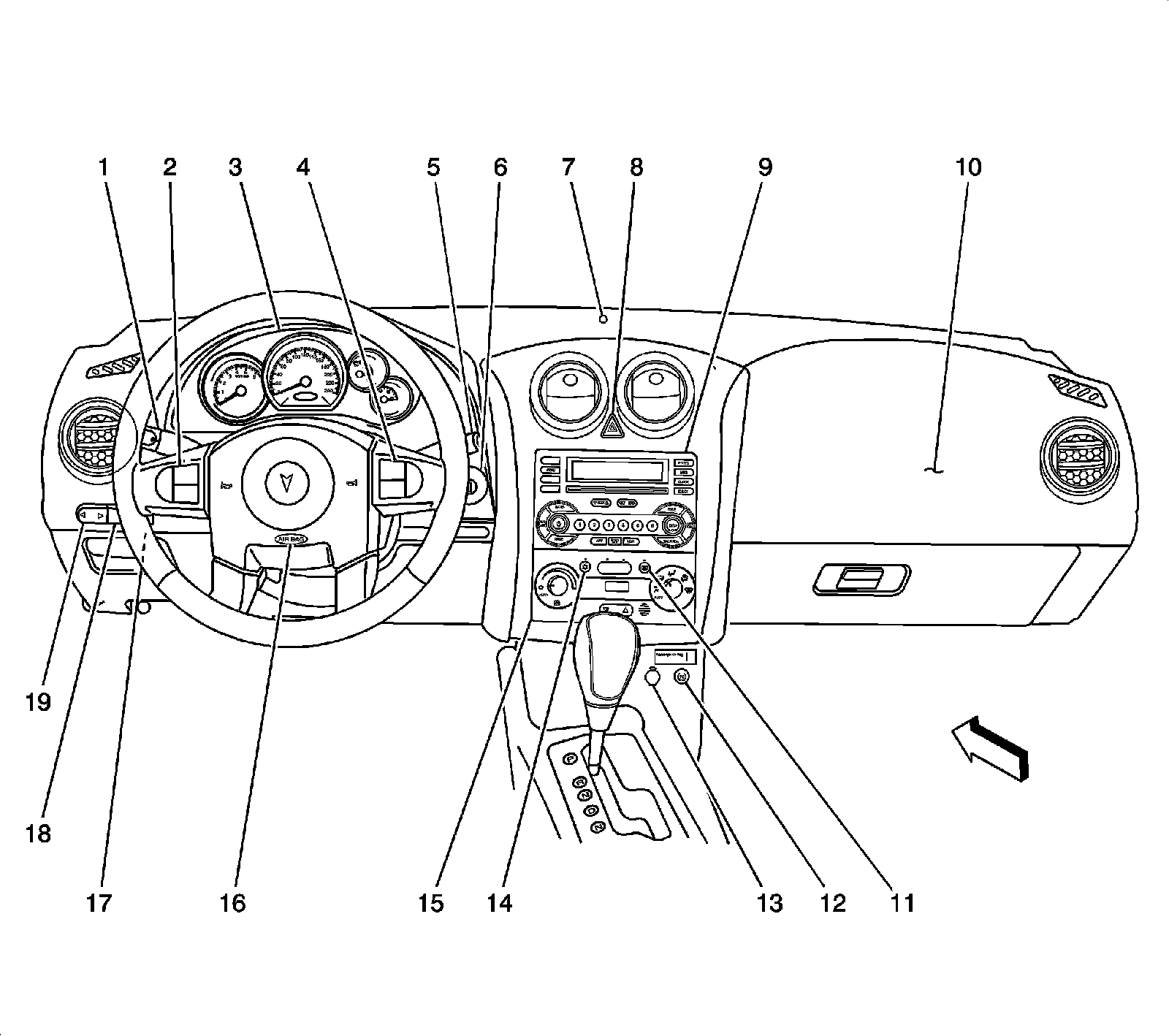

Instrument Panel

Instrument Panel:

1 - Turn Signal/Multifunction Switch
2 - Steering Wheel Controls - Left
3 - Instrument Panel Cluster (IPC)
4 - Steering Wheel Controls - Right
5 - Windshield Wiper/Washer Switch
6 - Ignition Switch
7 - Ambient Light Sensor
8 - Hazard Switch
9 - Radio
10 - Inflatable Restraint I/P Module
11 - Rear Window Defogger Switch
12 - Traction Control Switch (NW7/NW9)
13 - Cigar Lighter
14 - A/C Request Switch
15 - HVAC Control Module
16 - Inflatable Restraint Steering Wheel Module
17 - Fog Lamp Switch
18 - I/P Dimmer Switch
19 - Adjustable Pedals Position Switch
