Air Bag
Air Bag

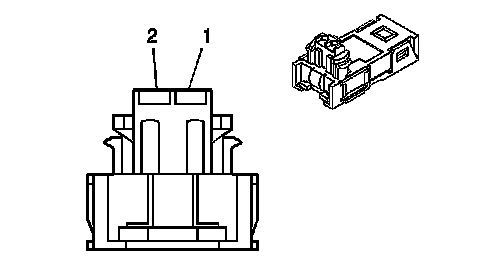

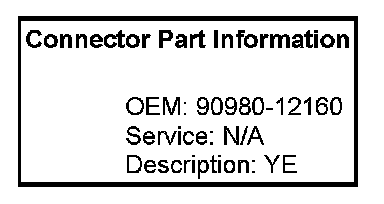

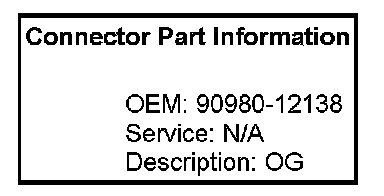

SIR Connector End Views

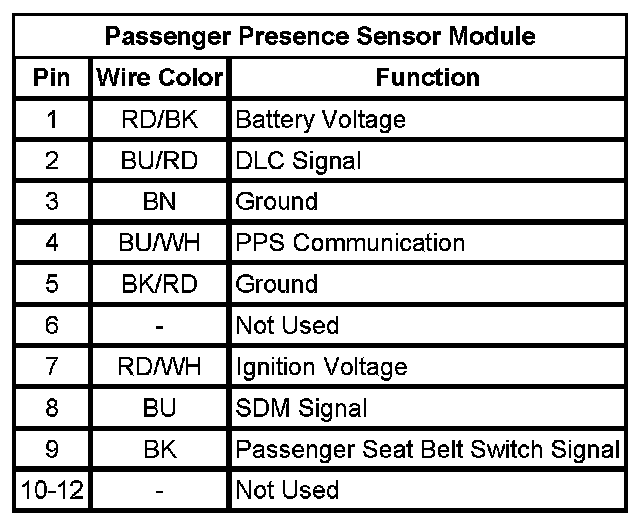

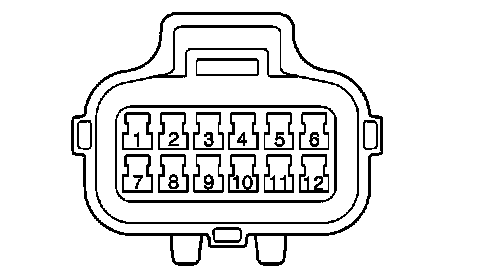

Passenger Presence Sensor Module

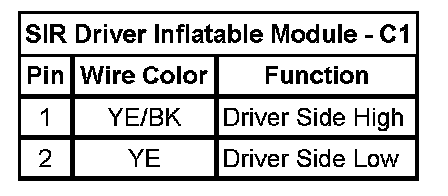

SIR Driver Inflatable Module - C1

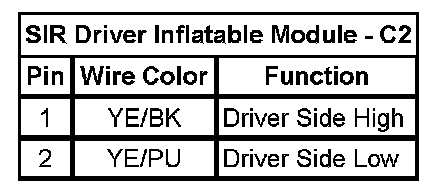

SIR Driver Inflatable Module - C2
SIR Instrument Panel Module
SIR Left Side Impact Module

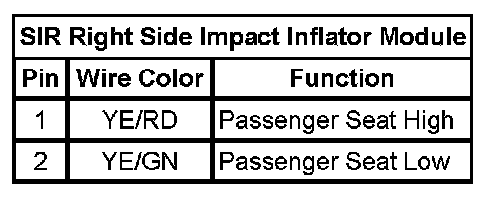

SIR Right Side Impact Inflator Module
