Camshaft Position Sensor



Component Connector End Views

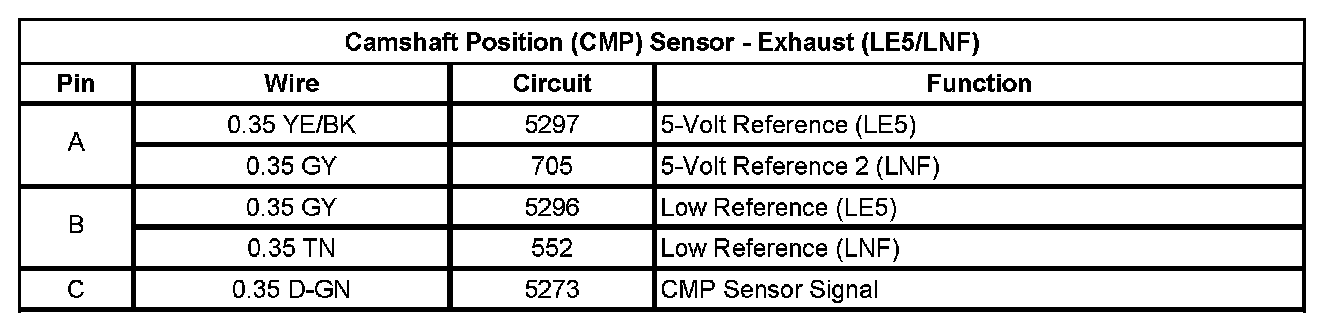

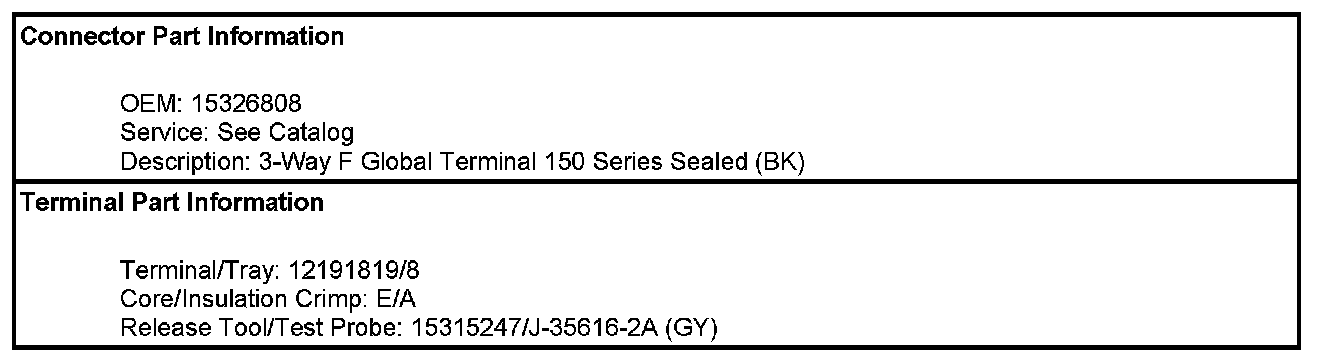

Camshaft Position (CMP) Sensor - Exhaust (LE5/LNF)














Camshaft Position (CMP) Sensor - Intake (LE5/LNF)
