Home
>>
Pontiac
>>
2008
>>
G5 L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Belt Tension Sensor
Seat Belt Tension Sensor

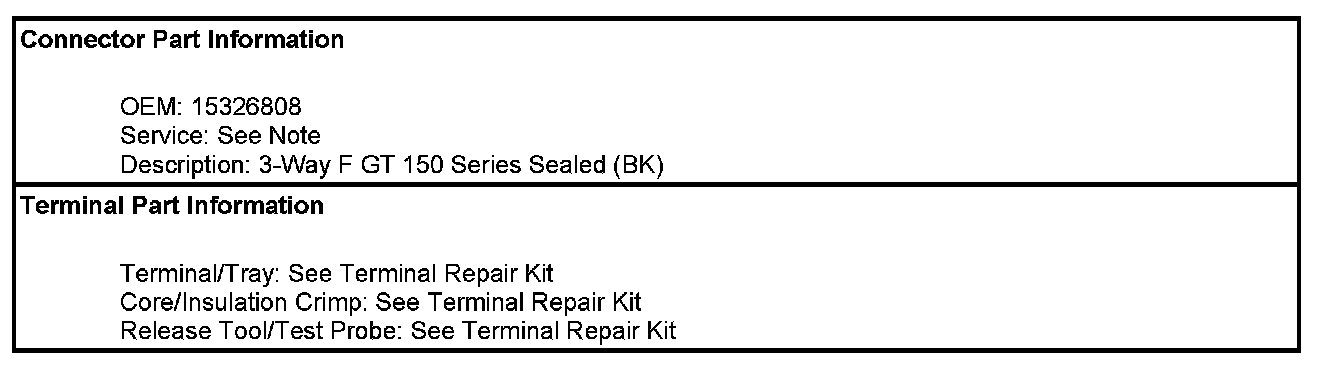

Component Connector End Views

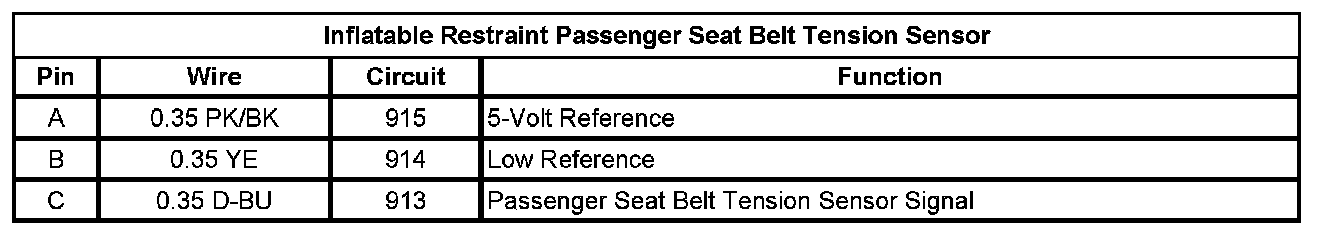

Inflatable Restraint Passenger
Seat Belt Tension Sensor
