Forward Lamp Harness
Harness Routing Views

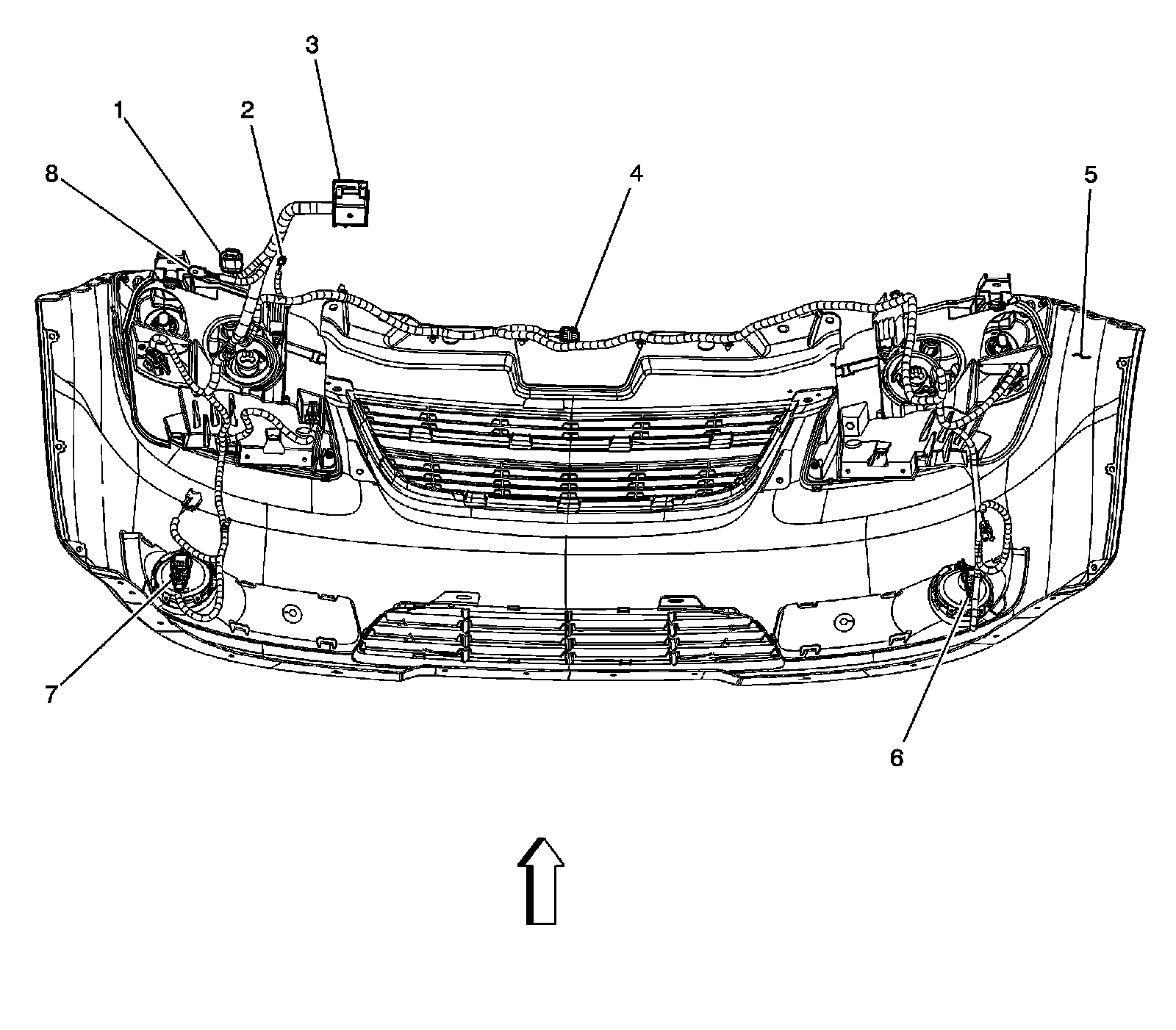

Forward Lamp Harness
1
- X121
2
- G102
3
- Fuse Block - Underhood X3
4
- Inflatable Restraint Front End Sensor Connector
5
- Front Fascia
6
- Fog Lamp - Right
7
- Fog Lamp - Left
8
- G101
