Amplifier, Sound System



Component Connector End Views

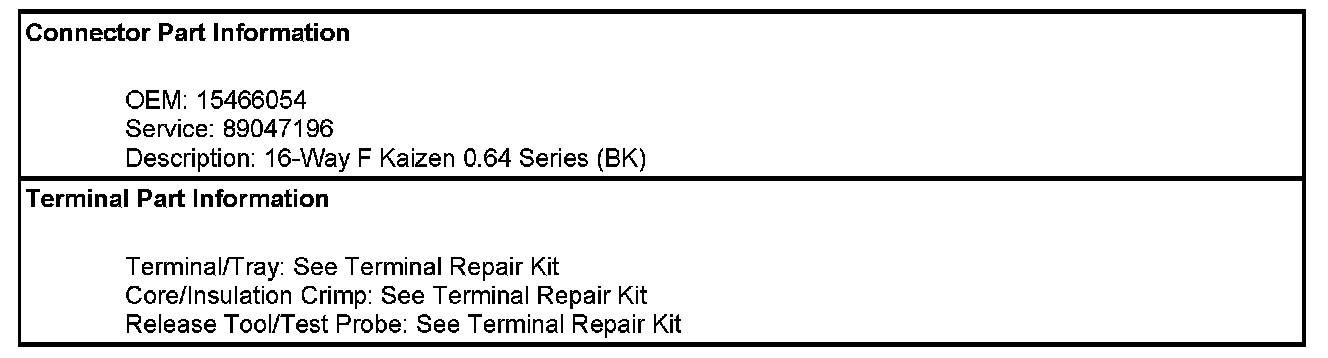

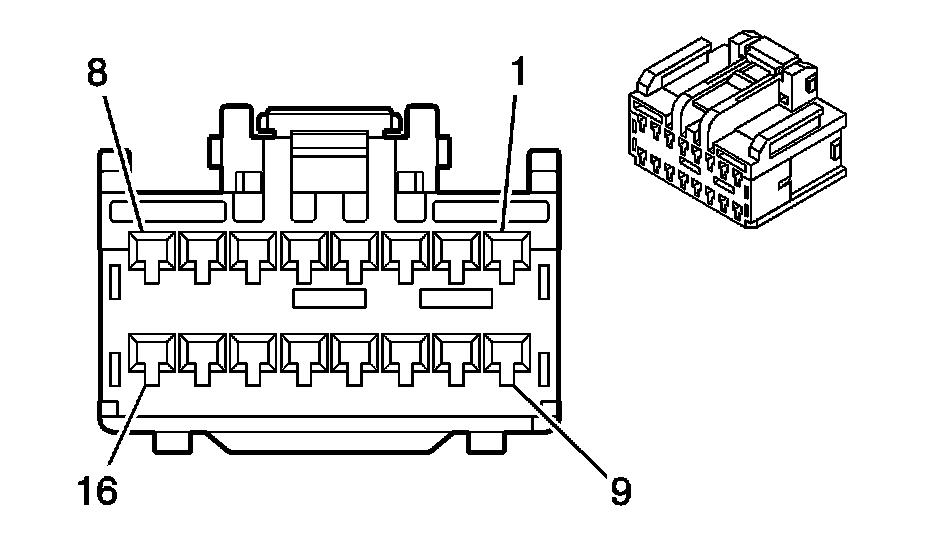

Audio Amplifier X1 (U85)

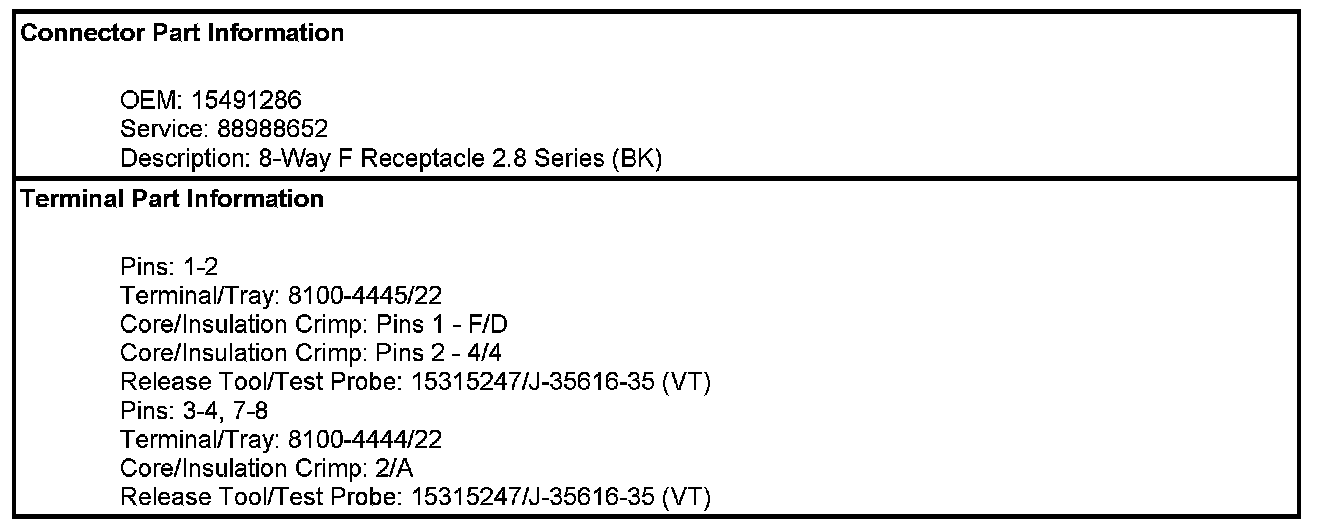

Audio Amplifier X2 (U85)














Audio Amplifier X3 (U85) (Convertible/Sedan)














Audio Amplifier X3 (U85) (Coupe)
