Air Door Actuator / Motor, HVAC



Component Connector End Views

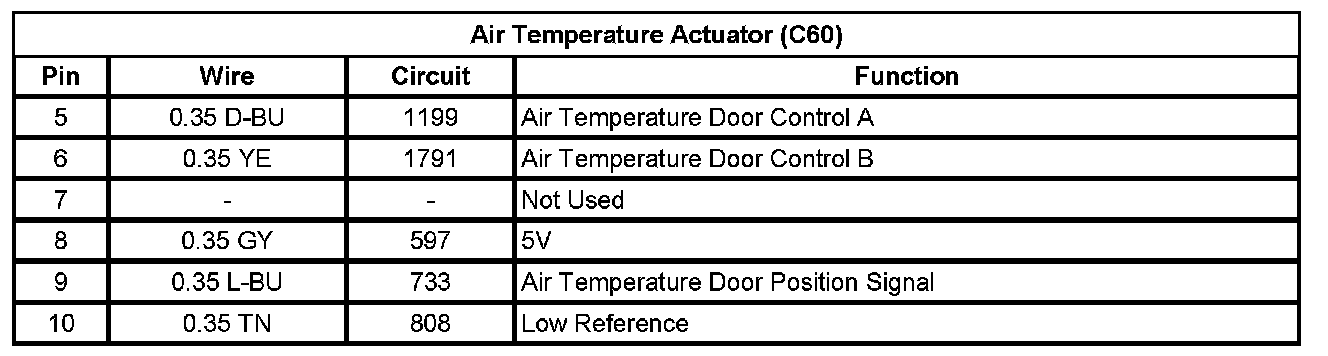

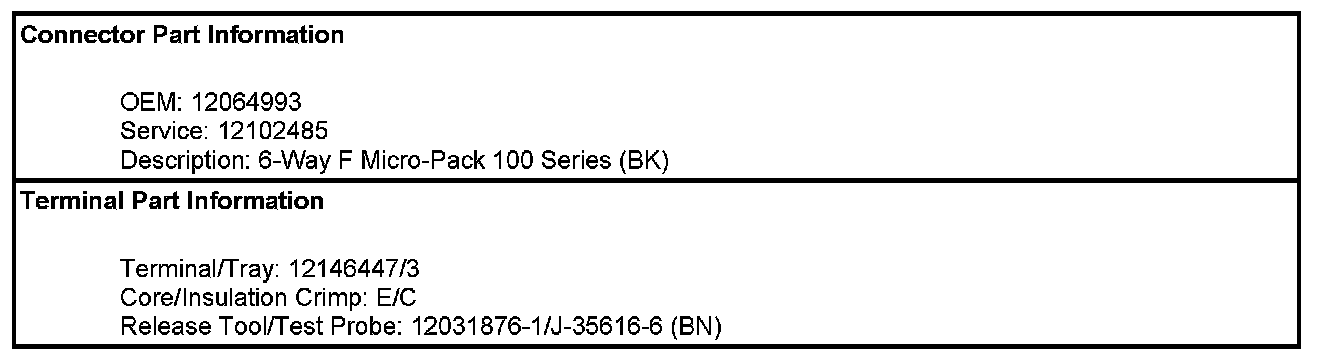

Air Temperature Actuator (C60)

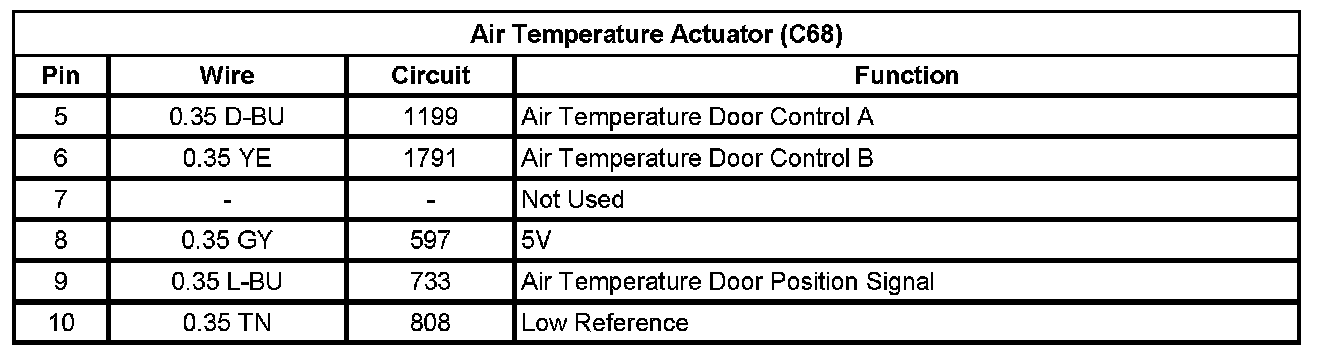

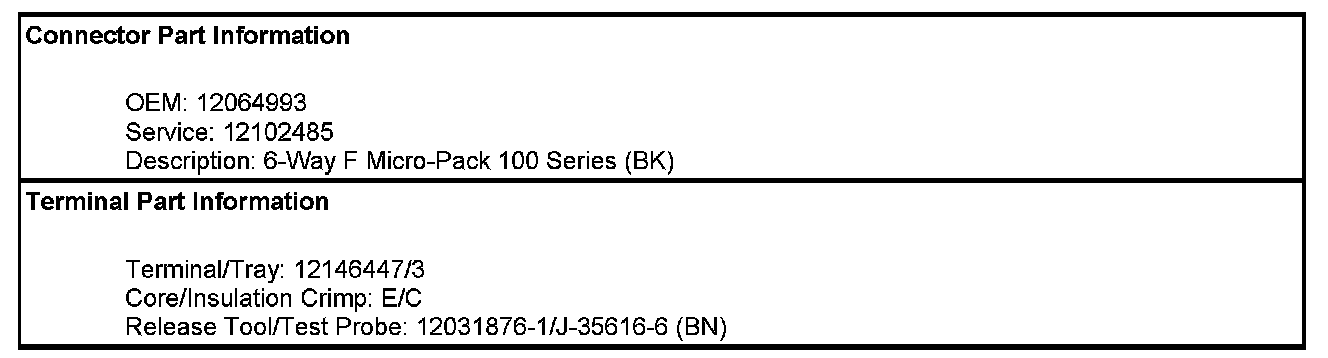

Air Temperature Actuator (C68)

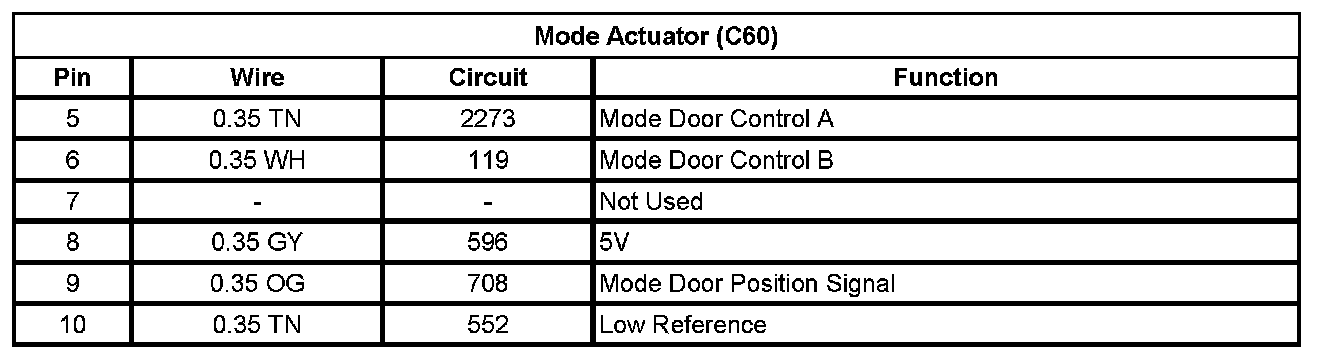

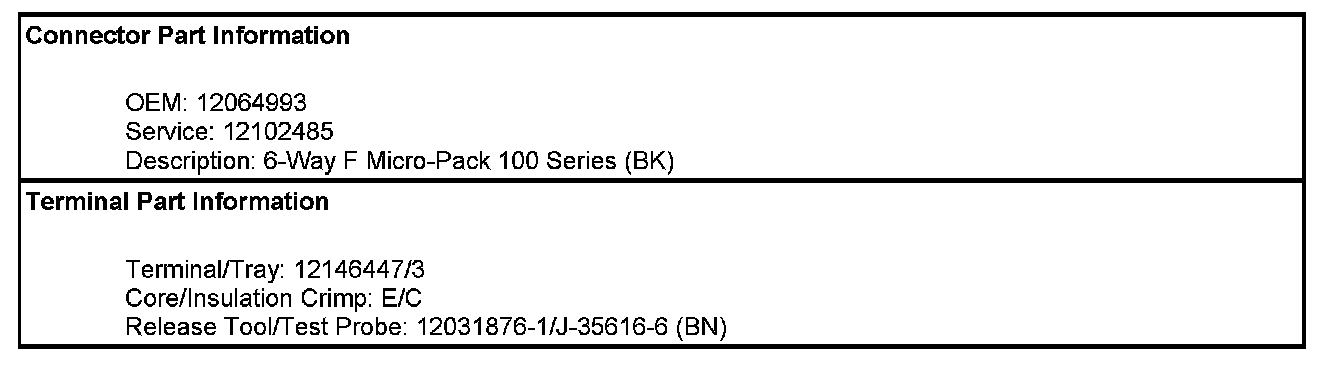

Mode Actuator (C60)

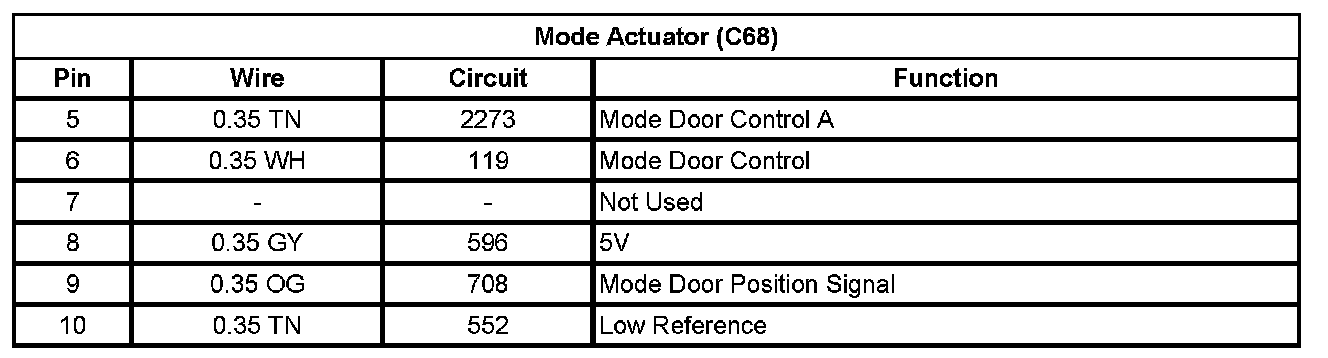

Mode Actuator (C68)

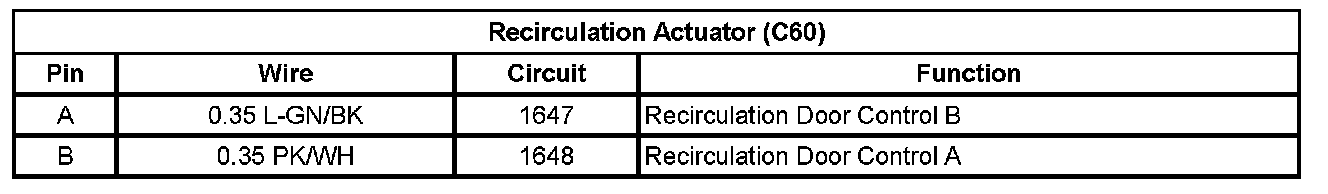

Recirculation Actuator (C60)

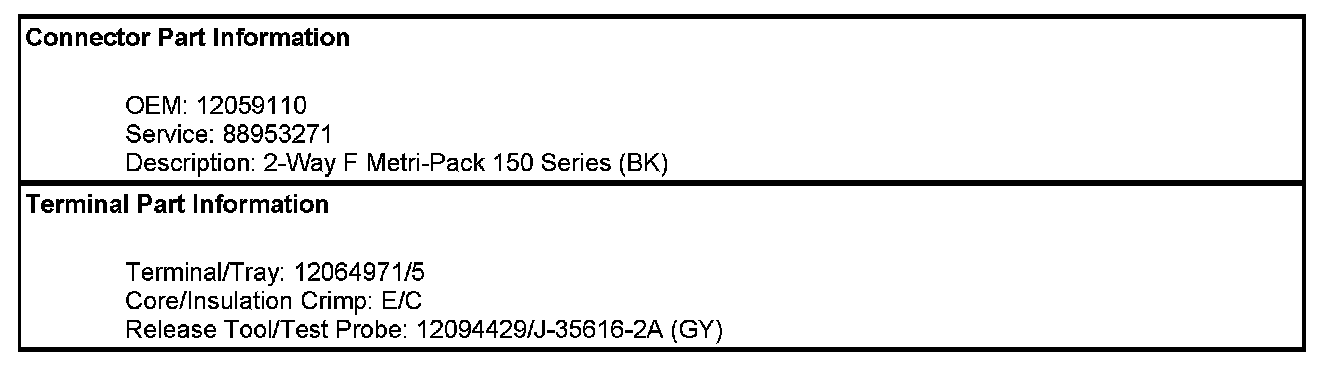

Auxiliary Transmission Fluid Pump (M33 Only):

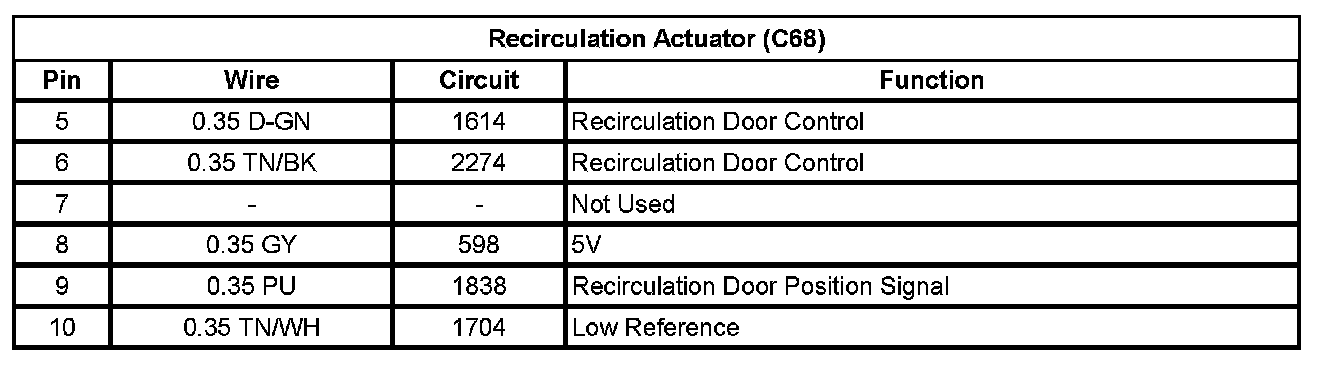

Recirculation Actuator (C68)
