Fuel Injector



Component Connector End Views

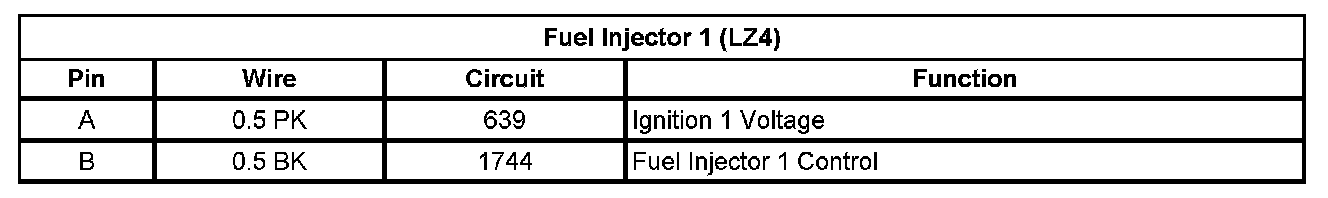

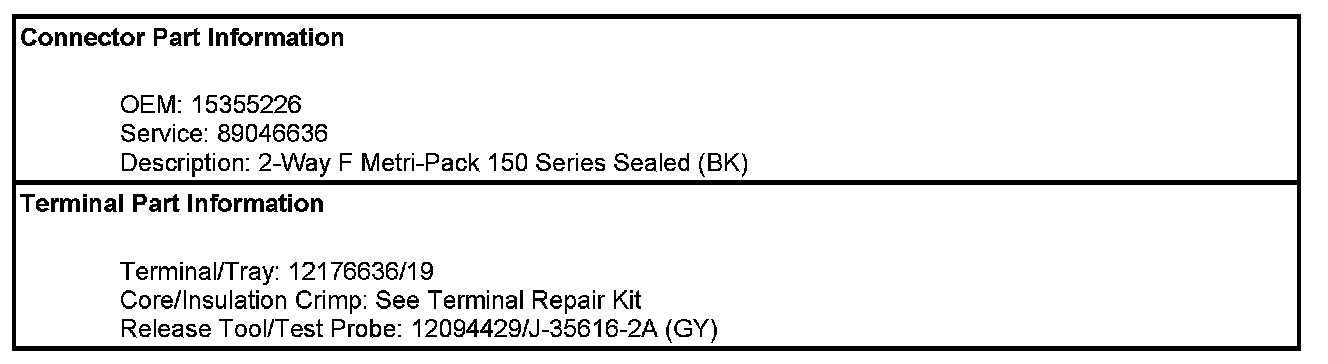

Fuel Injector 1 (LZ4)

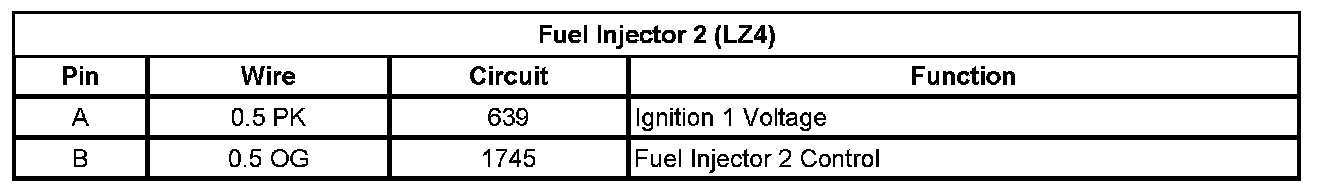

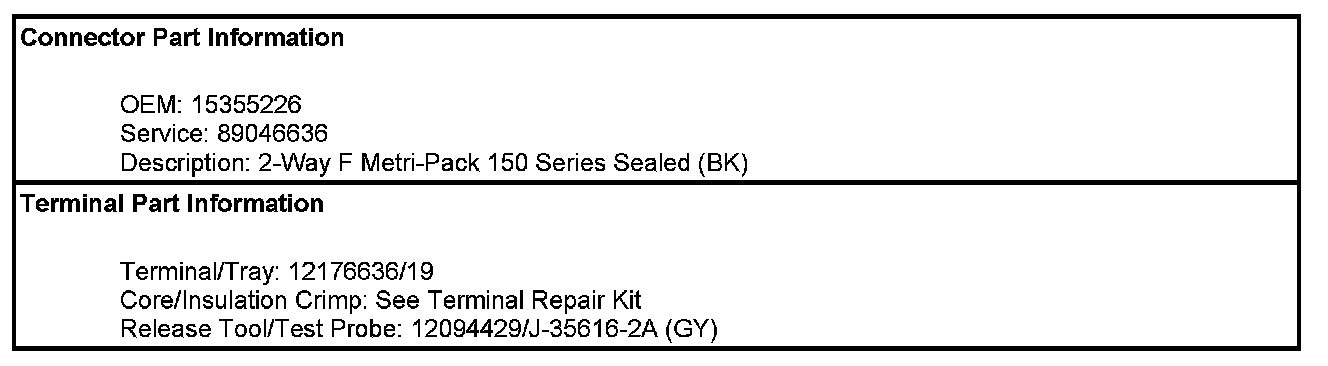

Fuel Injector 2 (LZ4)

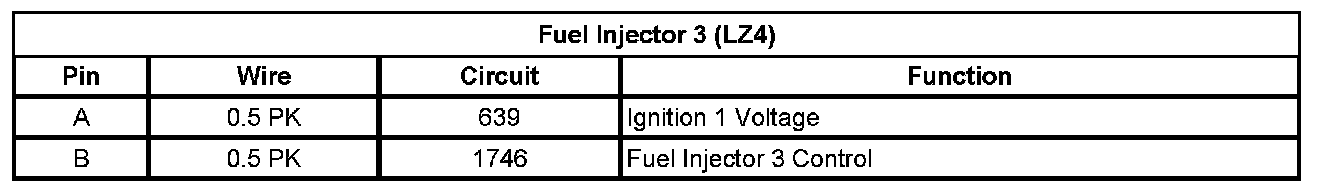

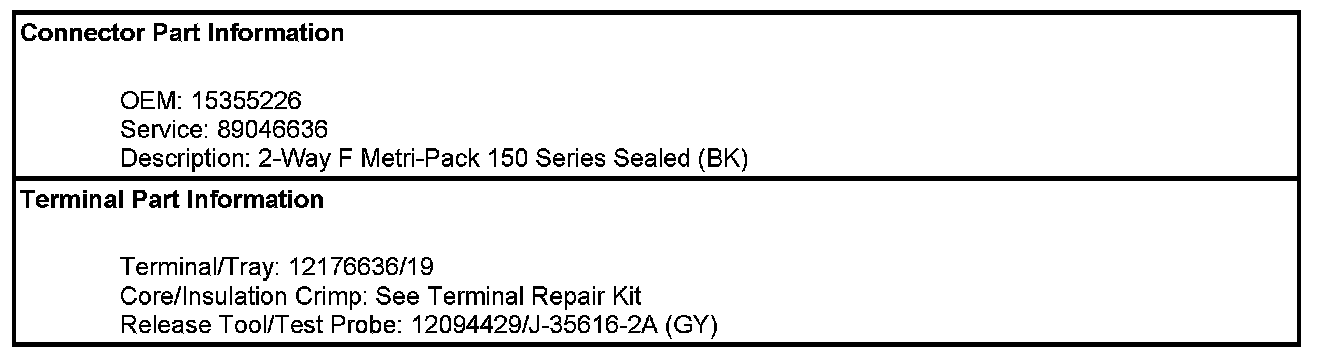

Fuel Injector 3 (LZ4)














Fuel Injector 4 (LZ4)

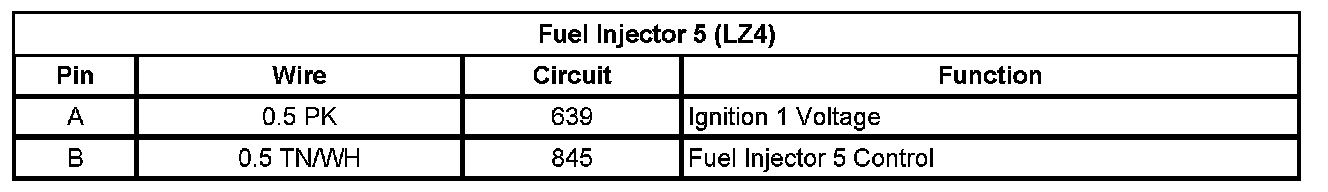

Fuel Injector 5 (LZ4)














Fuel Injector 6 (LZ4)
